Solar TileBlaster
Couldn't load pickup availability
Air Replenishment Rate
Air Replenishment Rate
How quickly will this vent replenish the air in a 10'x10'x10' space? Every 9.5 minutes with proper intake ventilation.
Warranty
Warranty
5-year warranty
Solar Panel Specs
Solar Panel Specs
Wattage:
Rating:
Dimensions: Size may vary
Solar TileBlaster
Ventilation Done Right
High quality, metal solar-powered roof vent for homes, sheds, garages and other shingled-roofed structures.
Natural Light Source
Every shed should have natural sunlight coming in to illuminate the space and make it a better work environment.

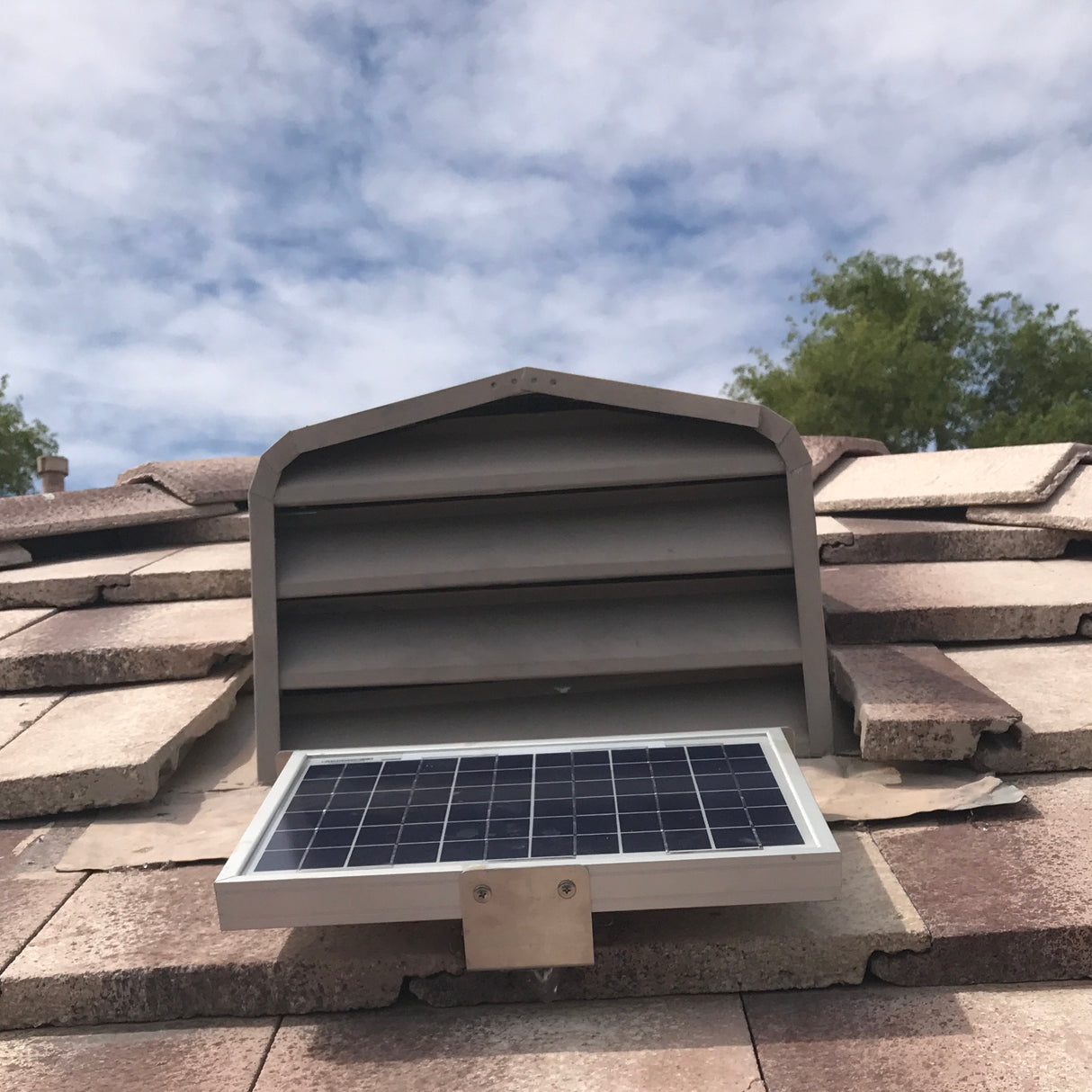

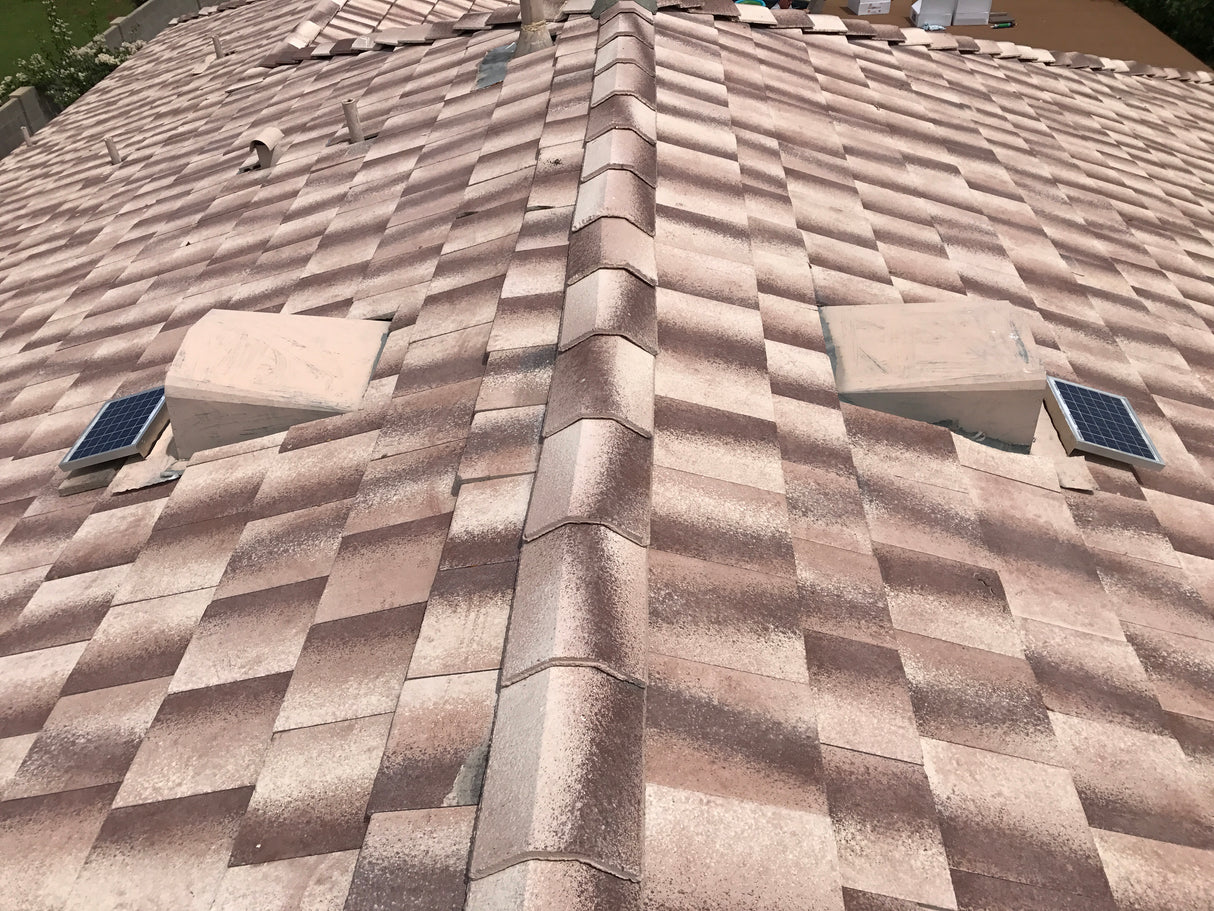

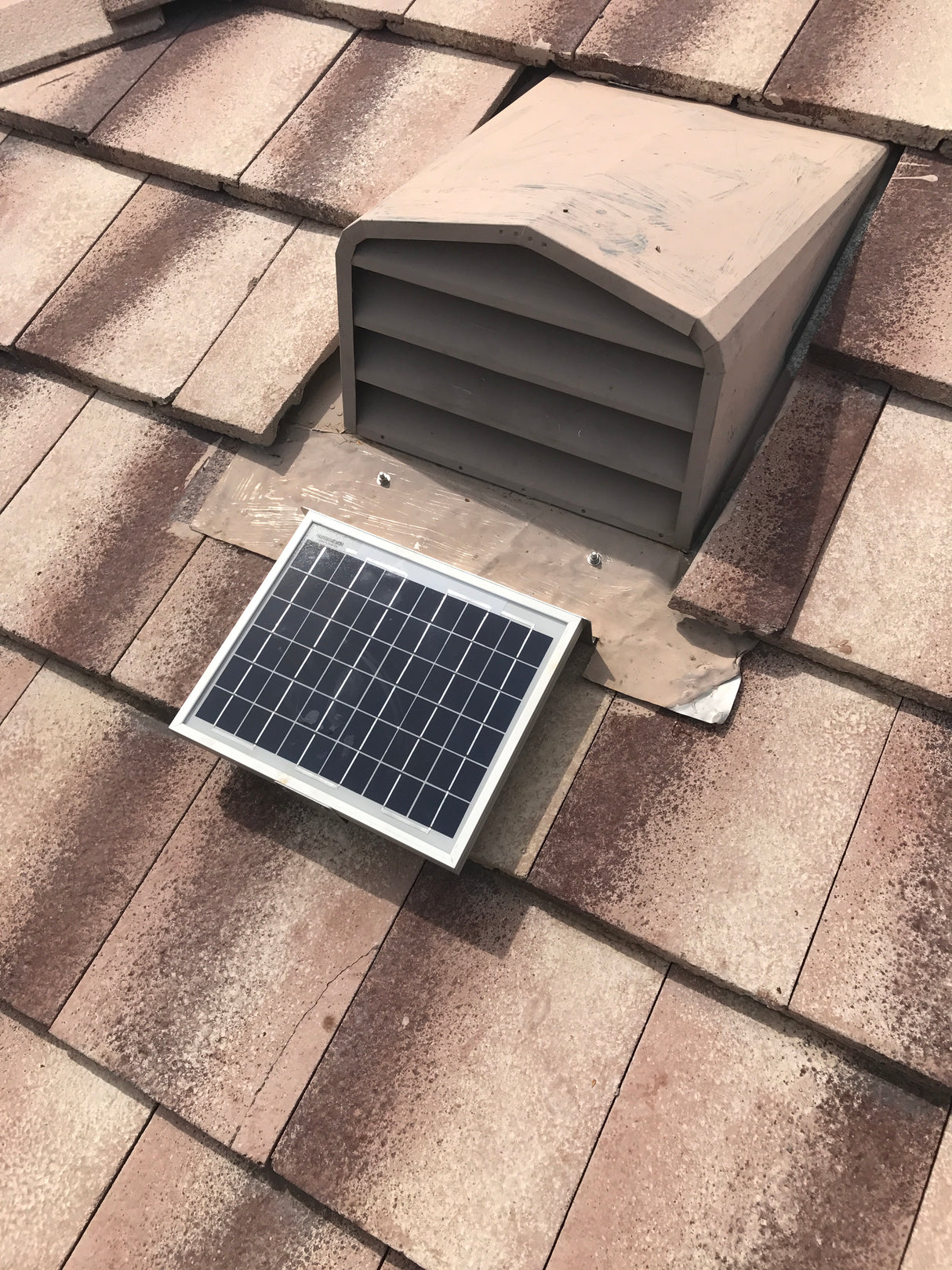

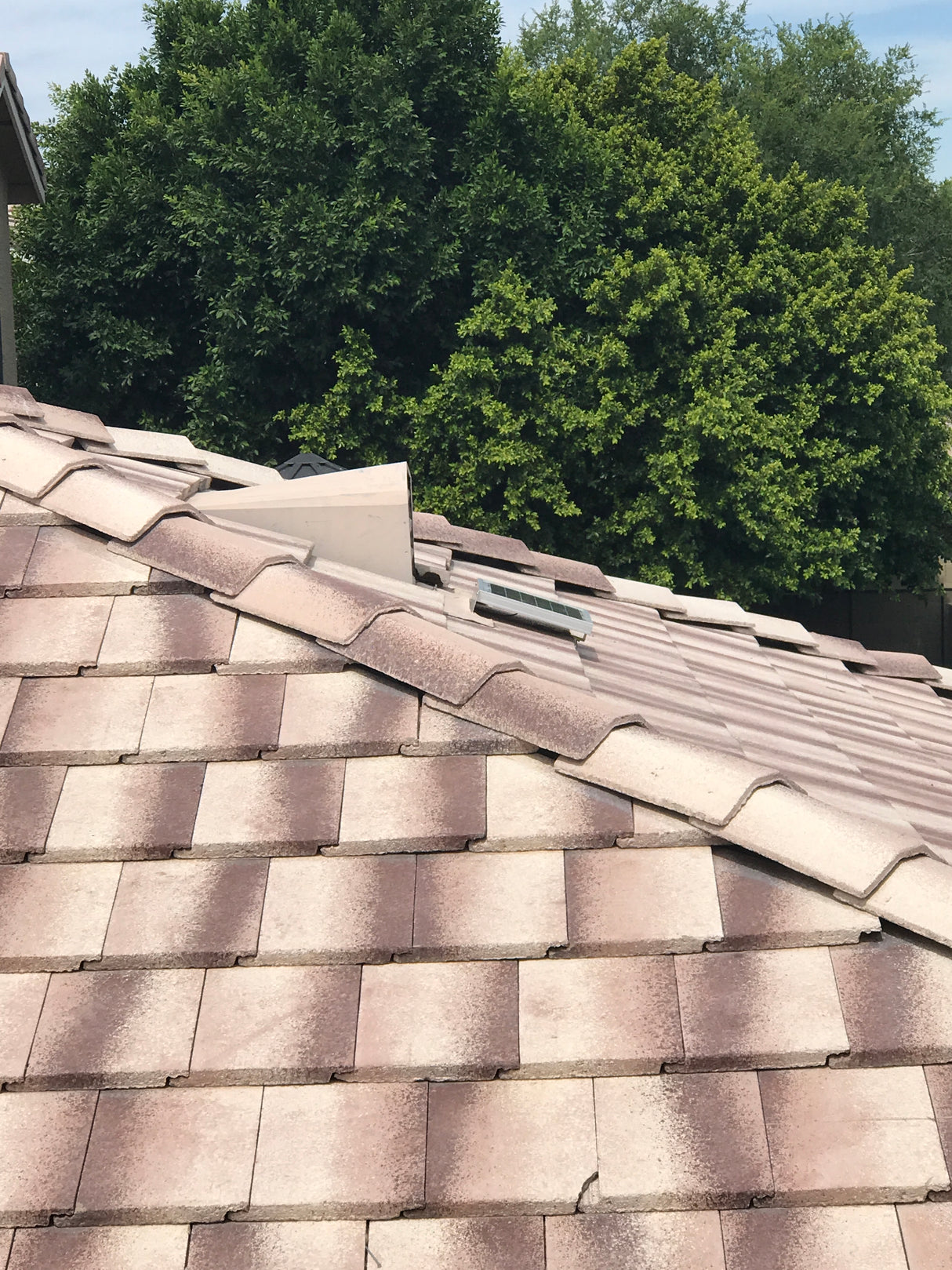

We can NOW solar activate your "eyebrow" dormer vents on tiled roofs. Get the maximum benefit from your home's dormer ("eyebrow") vents. Introducing our Solar TileBlaster™ roof fans and solar panels for a clean and green solution to boost your attic ventilation. Remove hot attic air more effectively and economically. Lessen the load for your HVAC by removing that oven-like, hot attic air so your living environment will be more comfortable.
How does a Solar TileBlaster™ prevent an attic from turning into an oven? A Solar TileBlaster roof vent turns that passive dormer vent into a vent that works regardless of lack of wind and even works on overcast days. Your attic's heat will be pulled out much more efficiently because our vent has three solar-powered fan units. So while the sun is the source of all your attic heat, it can also be put to work in pulling that hot air and moisture out. This solution is a very economical way for you to solve your attic heat problems.

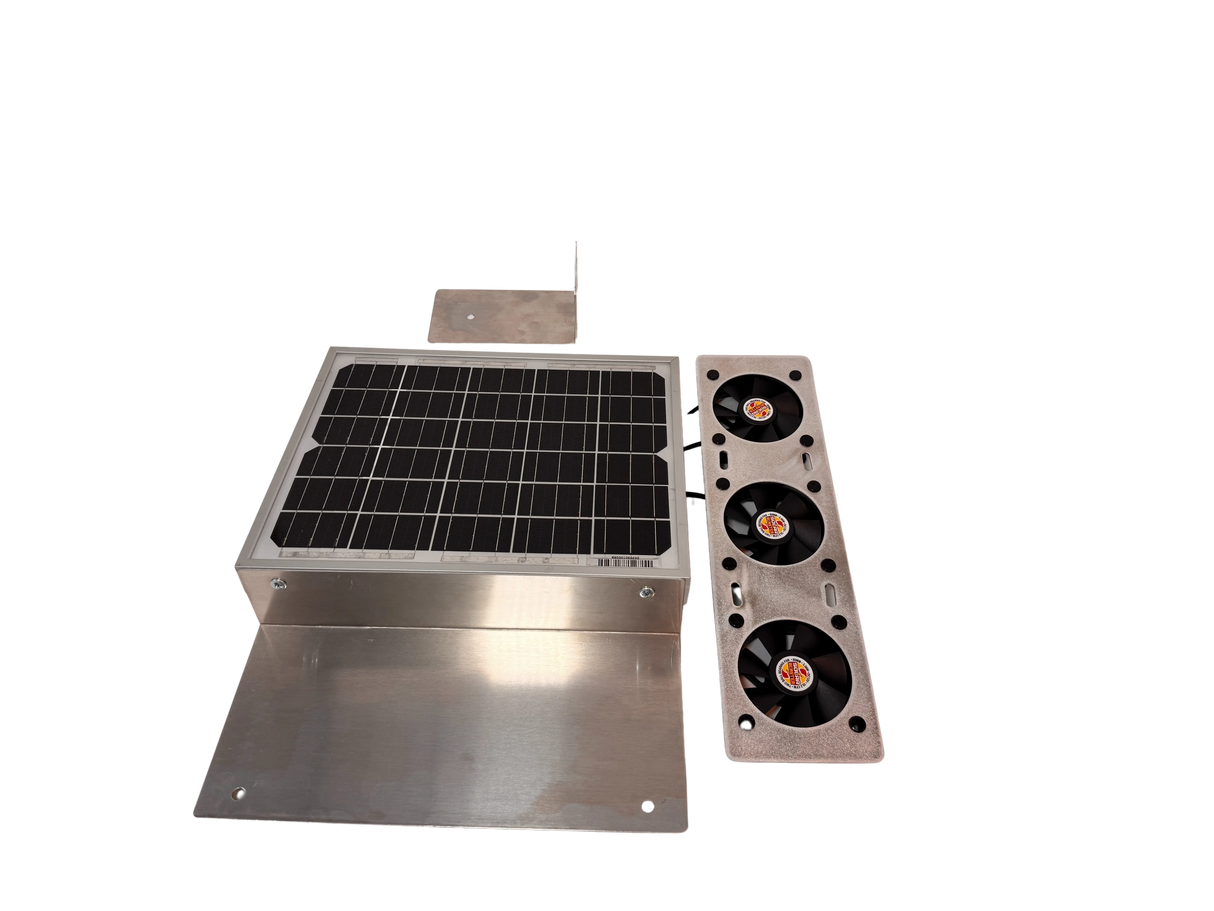

Why are there three fans in this unit? The three fan configuration allows the fans to turn on individually and gradually as the sun rises and produces more and more solar energy.
Applications include any tile-roofed structure that includes dormer ("eyebrow") vents often found on homes and garages. Dormer vents are often used on flat tiled roofs.
Professional-grade performance with straightforward installation makes the Solar TileBlaster an essential upgrade for any flat tiled structure resulting in an enhanced ventilation solution due to the power of the sun. Why not use the source of all that attic heat to also blast that heat away more effectively than ridge venting alone?
Solar TileBlaster™ roof vent fans help boost the effectiveness of what would otherwise be a passive vent system while also acting as a passive vent anytime the sun is not out.
Solar Tubes vs Traditional Skylights
Solar tubes, or tubular skylights, are quite innovative in their design and provide a very good source of daylighting in your shed. They maximize the amount of sunlight they collect, while filtering out the heat and glare that traditional skylights produce.
LightBlaster Solar Tube
Traditional Skylights
Economical
Cost savings in both the unit and also in the installation.
More expensive for the unit as well as an extensive installation requirement.
Energy Efficiency
Energy Star® rated offering great, natural light with minimal heat gain and loss.
Some skylights provide ventilation by opening. The fixed ones can be a source of heat gain driving up the cost of air conditioning and heat loss increasing winter heating bills.
Attractiveness
Interior design looks much like a light fixture - very sleek. The exterior is also small and attractive from the street.
Has a larger footprint on your roof and also impacts the interior design of your home.
Quality of Light
Due to the design of the interior diffuser, the indirect light output is much more than you'd expect throughout the day. It is also a very natural light without color distortion. Doesn't fade your valuables.
Depending on the quality of the dome, the light can be discolored throwing a yellowish or grayish tone. Also, due to its design, the light's path changes with the sun and can be quite harsh at times during the day. May lead to discoloring items in its path over time.
Ease of Installation
Can be easily installed without requiring framing, drywalling, or repainting. They are installed in less than two hours. Maintenance-free design.
Require professional installation. Requires reframing, drywalling and repainting.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product features
Click to find out more about this product.
Solar RoofBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White, Black, Brown, Gray |
| Panel Clips | galvanized steel |
| Base Flashing | 14.75x14.75 |
| Net Weight | 4 lbs |
| Gross Weight | 5.6 lbs |
| Boxed Size | 16x16x8.5 |
| Warranty | 5 years |
Solar Mega RoofBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White, Black, Brown, Gray |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4.4 lbs |
| Gross Weight | 6 lbs |
| Boxed Size | 14.75x14.75x6.5 16x16x9 |
| Warranty | 5 years |
Solar Mega RoofBlaster Adjustable Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Adjustable? | Yes |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White, Black, Brown, Gray |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4.8 lbs |
| Gross Weight | 6.4 lbs |
| Boxed Size | 14.75x14.75x6.5 16x16x9 |
| Warranty | 5 years |
Solar RidgeBlaster Specs
The Solar RidgeBlaster has 3 sets of fans attached. Below you will find the specs for one of the fans except for the bottom Air Refresh Rate includes all 3 fans working together.
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 9.5 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 10W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.39A |
| Open Circuit (Voc) | 20.3V |
| Short Circuit (Isc) | 0.62A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 310mm x 250mm x 30mm |
| Solar Panel Weight | ???? lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | Open ridge |
| Net Free Vent Area | Depends on ridge length |
| Flashing Material | 14 gauge aluminum |
| Vent Color | Galvanized |
| Unit Size | 15.25x12.25x2.75 in. |
| Net Weight | 4.4 lbs |
| Gross Weight | 5.4 lbs |
| Boxed Size | 16x16x6.5 |
| Warranty | 5 years |
Solar Metal RidgeBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | Open ridge |
| Net Free Vent Area | Depends on ridge length |
| Flashing Material | 14 gauge aluminum |
| Vent Color | Galvanized |
| Unit Size | ?????15.25x12.25x2.75 in. |
| Net Weight | 2.2 lbs |
| Gross Weight | 2.8 lbs |
| Boxed Size | 13.25x9.25x5.75 |
| Warranty | 5 years |
Conex Solar RoofBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4 or 4.4 lbs |
| Gross Weight | 5 or 6.2 lbs |
| Boxed Size | 14x14x9.5 16x16x9 |
| Warranty | 5 years |
Conex Solar Mega RoofBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4.4 or 4.6 lbs |
| Gross Weight | 5.6 or 6.4 lbs |
| Boxed Size | 14x14x9.5 16x16x9 |
| Warranty | 5 years |
Conex Solar Mega RoofBlaster Adjustable Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Adjustable? | Yes |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |
| Vent Colors | Galvanized, White |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4.8 or 5 lbs |
| Gross Weight | 5.9 or 6.6 lbs |
| Boxed Size | 14x14x9 16x16x9 |
| Warranty | 5 years |
Solar SlantBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 8" diameter |
| Net Free Vent Area | 50.27 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | galvanized steel |
| Hood Material | galvanized steel |
| Vent Colors | Black, Weathered Bronze |
| Panel L-brackers | 14 gauge aluminum |
| Base Flashing | 20.3x16 |
| Net Weight | 4.8 lbs |
| Gross Weight | 6.8 lbs |
| Boxed Size | 22x18x8 |
| Warranty | 5 years |
Solar Mega SlantBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 8" diameter |
| Net Free Vent Area | 50.27 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | galvanized steel |
| Hood Material | galvanized steel |
| Vent Colors | Black, Weathered Bronze |
| Panel L-brackers | 14 gauge aluminum |
| Base Flashing | 20.3x16 |
| Net Weight | 5.4 lbs |
| Gross Weight | 7.2 lbs |
| Boxed Size | 22x18x8 |
| Warranty | 5 years |
Related products
-
SealBlaster Sealant / Caulking (1 tube)
Regular price $15.95Unit price /Unavailable -
-
Conex Solar RoofBlaster for Shipping Containers
Sale price From $189.99 Regular price $219.99Unit price /Unavailable -
-
Conex Solar Mega RoofBlaster for Shipping Containers
Sale price From $239.99 Regular price $269.99Unit price /Unavailable -
-
Conex Solar Mega RoofBlaster Adjustable for Shipping Containers
Sale price From $274.99 Regular price $304.99Unit price /Unavailable -
-
Conex Solar Mega SideBlaster Adjustable for Shipping Containers
Sale price From $309.99 Regular price $339.99Unit price /Unavailable -
