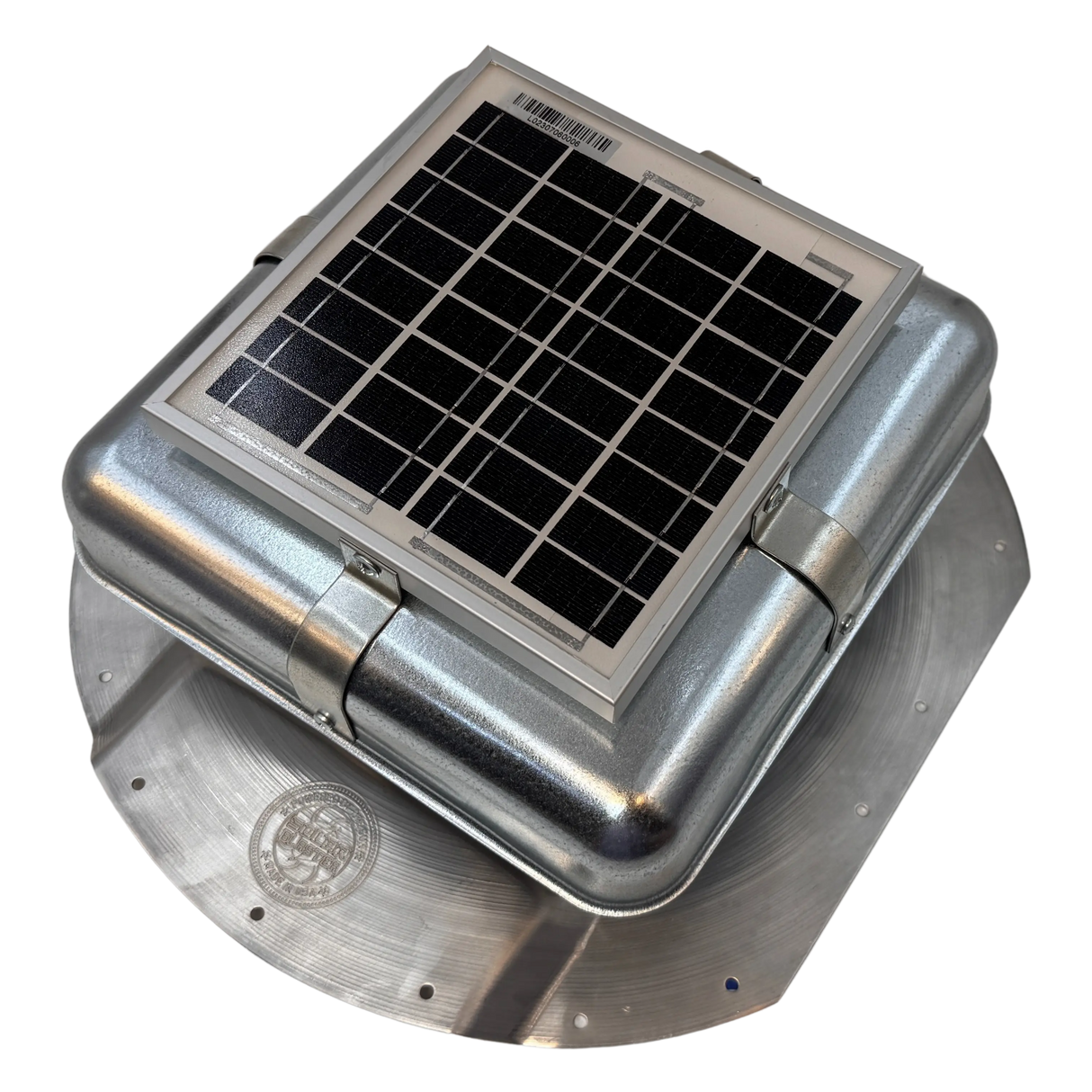

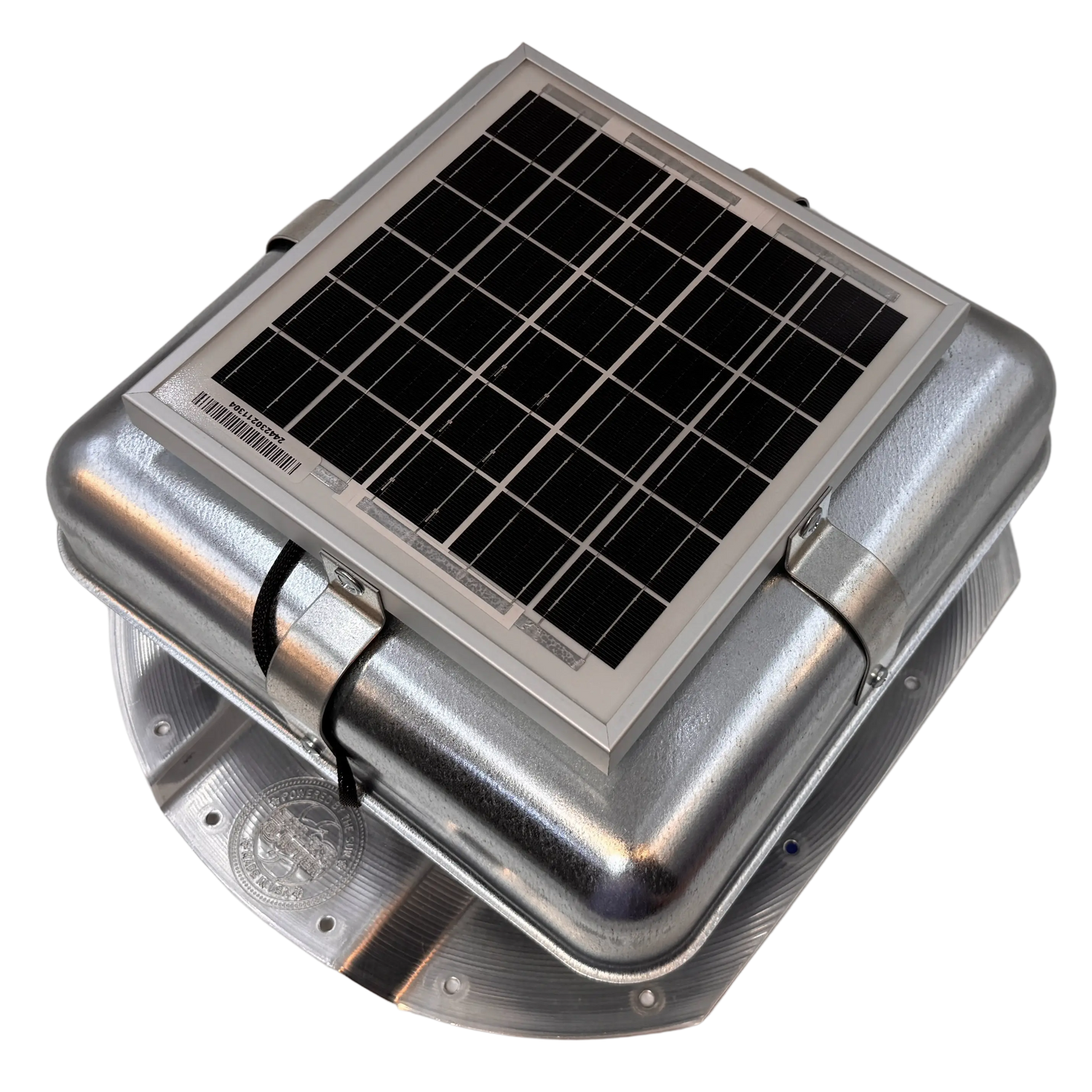

Conex Solar RoofBlaster for Shipping Containers

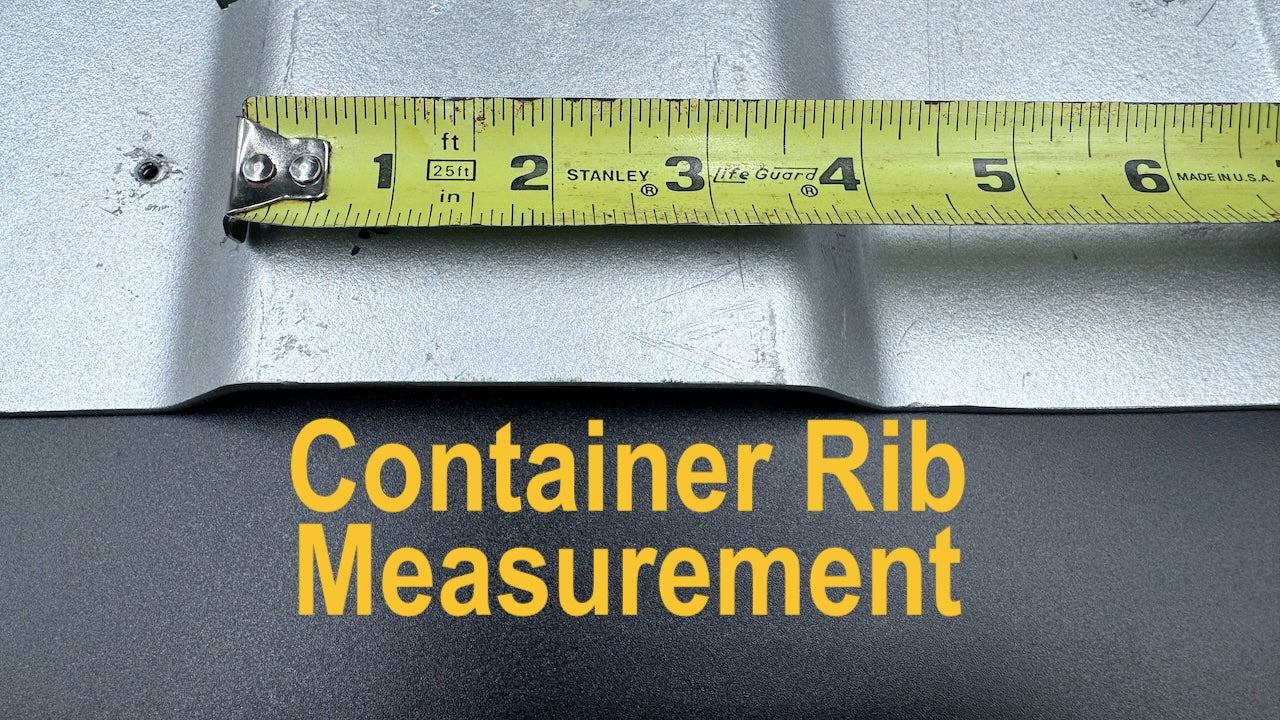

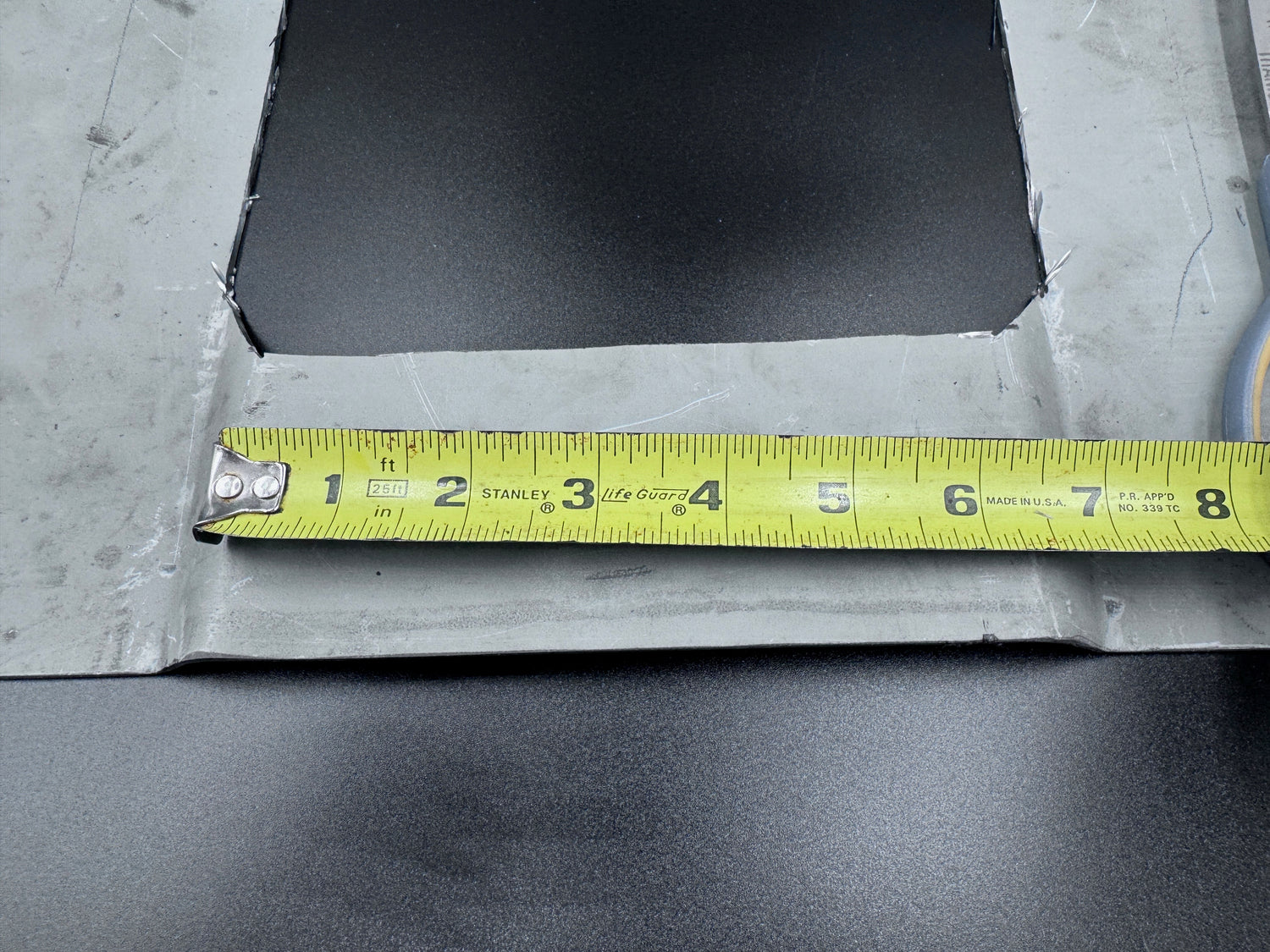

Containers have TWO roof rib sizes (3.5" or 6.5").
⚠️ REQUIRED: You must confirm measurement before adding to cart.
You must click the above REQUIRED checkbox confirming you've measured your roof ribs before you can add this item to your cart.
Couldn't load pickup availability
Air Replenishment Rate
Air Replenishment Rate
How quickly will this vent replenish the air in a 10'x10'x10' space? Every 28.4 minutes with proper intake ventilation.
Warranty
Warranty
5-year warranty
Ventilation Done Right

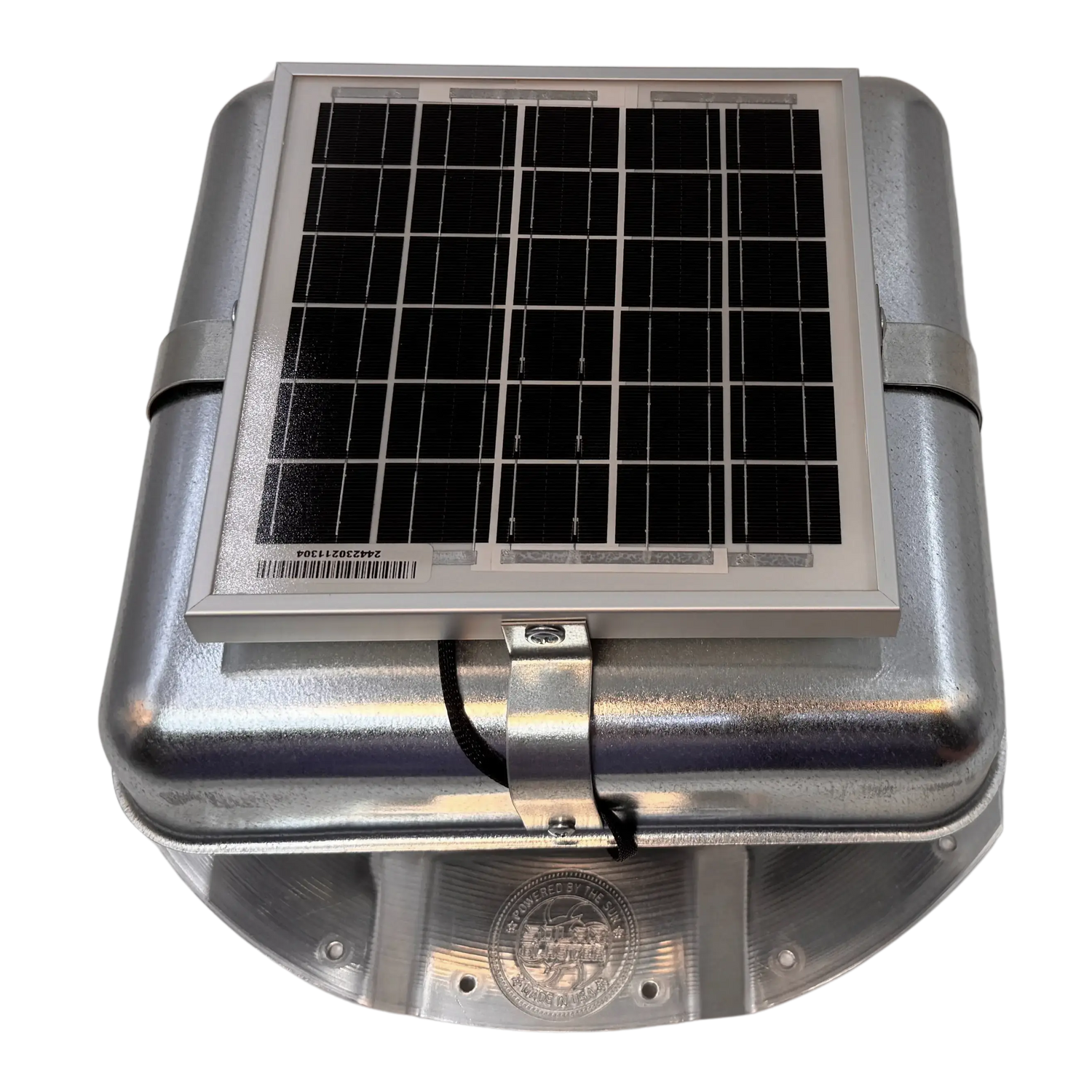

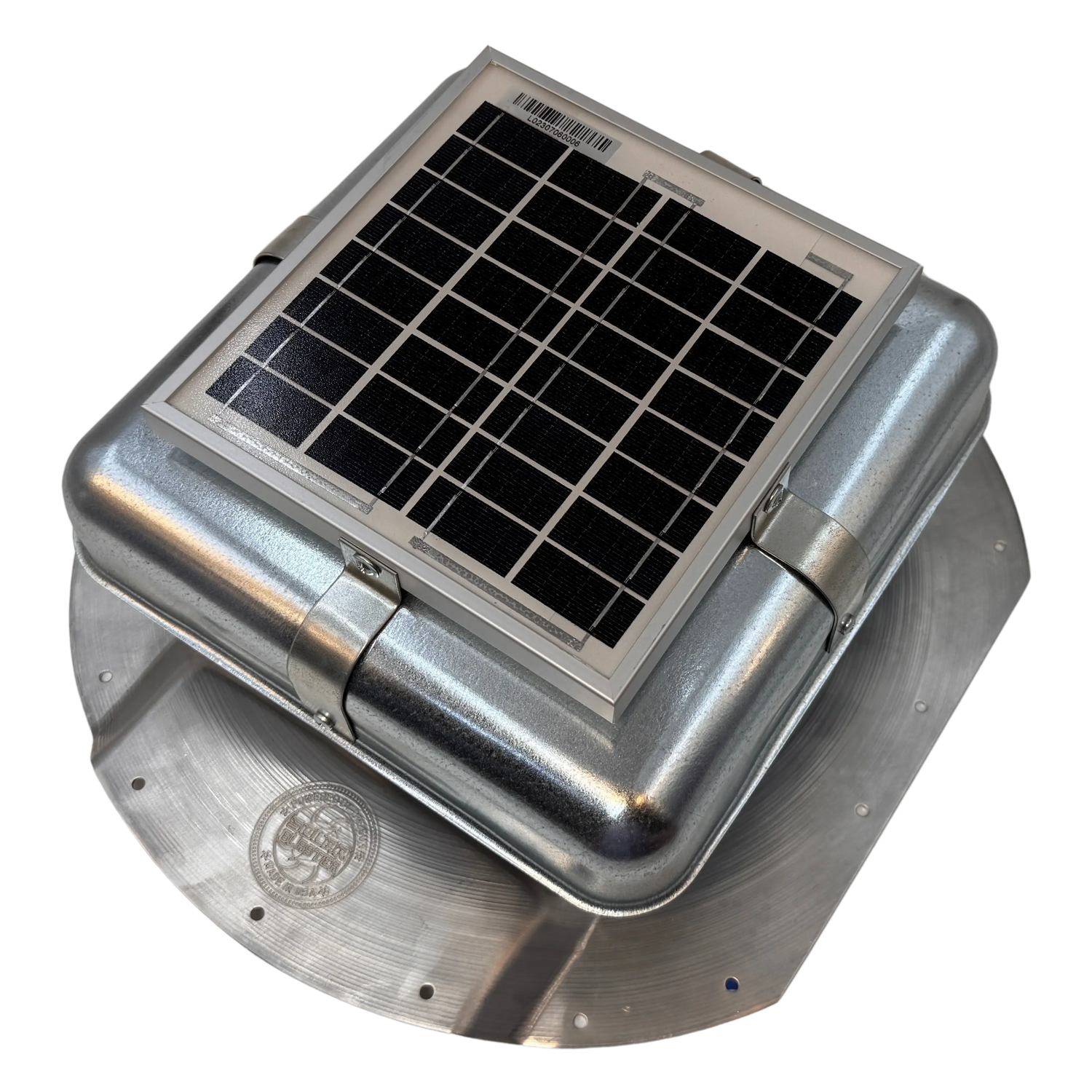

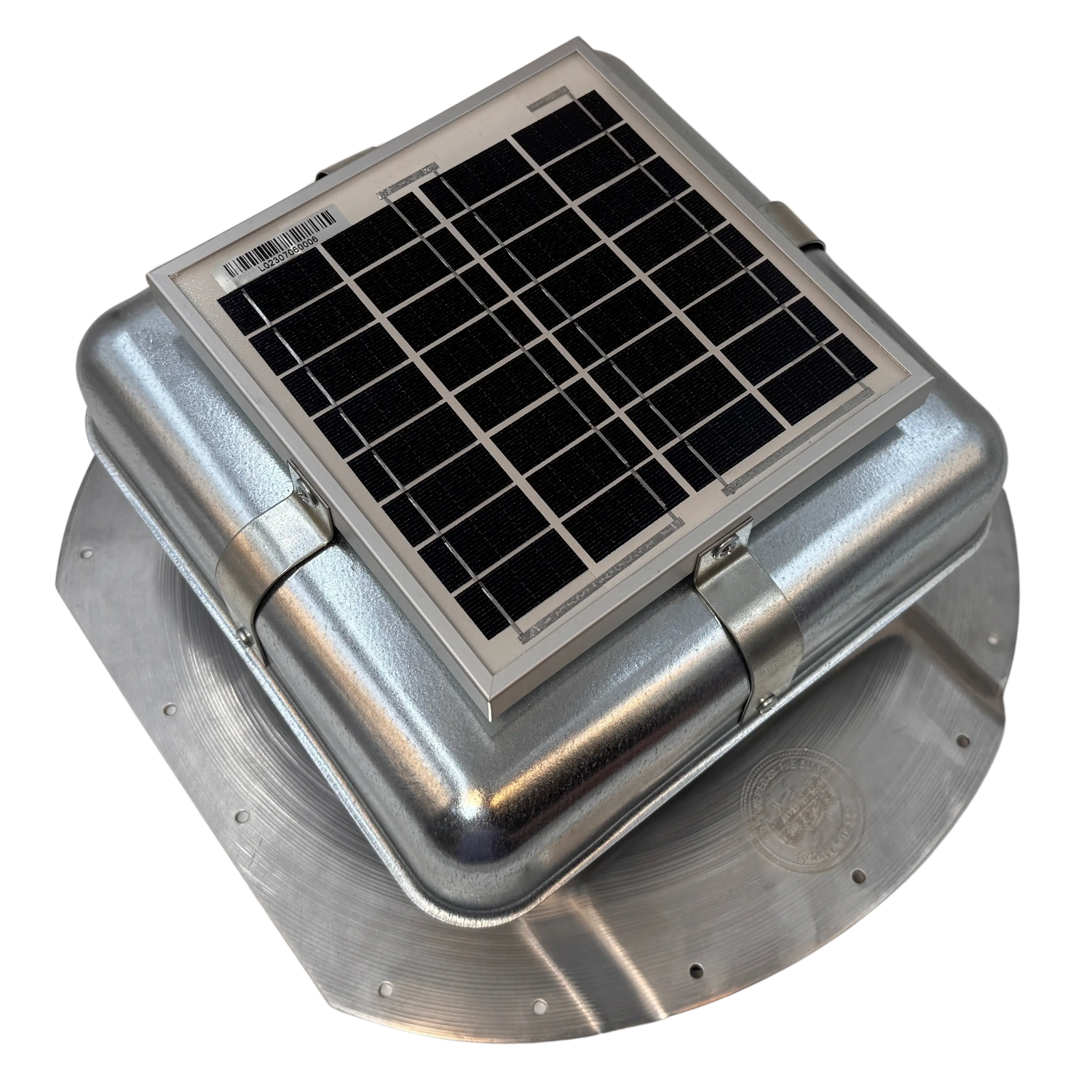

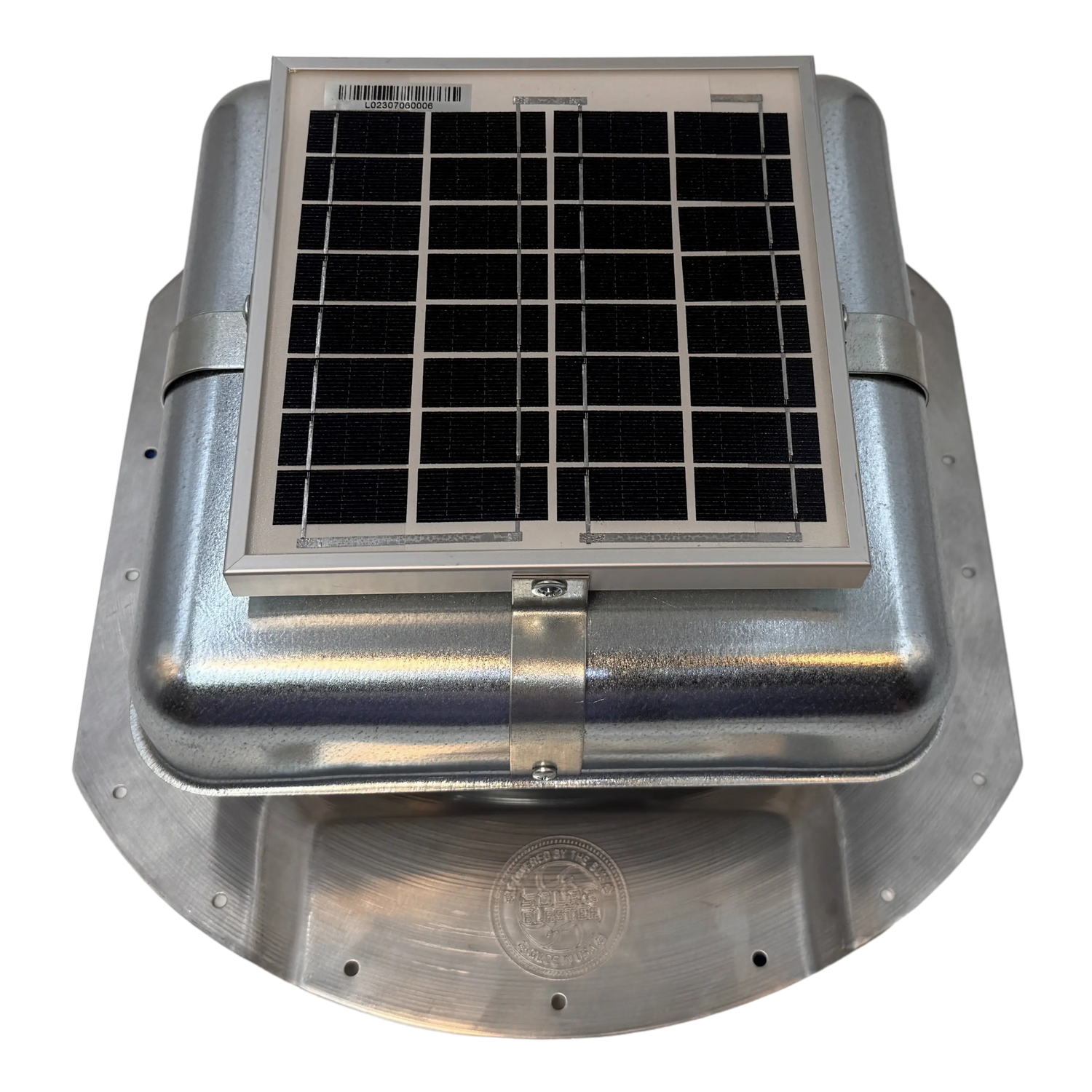

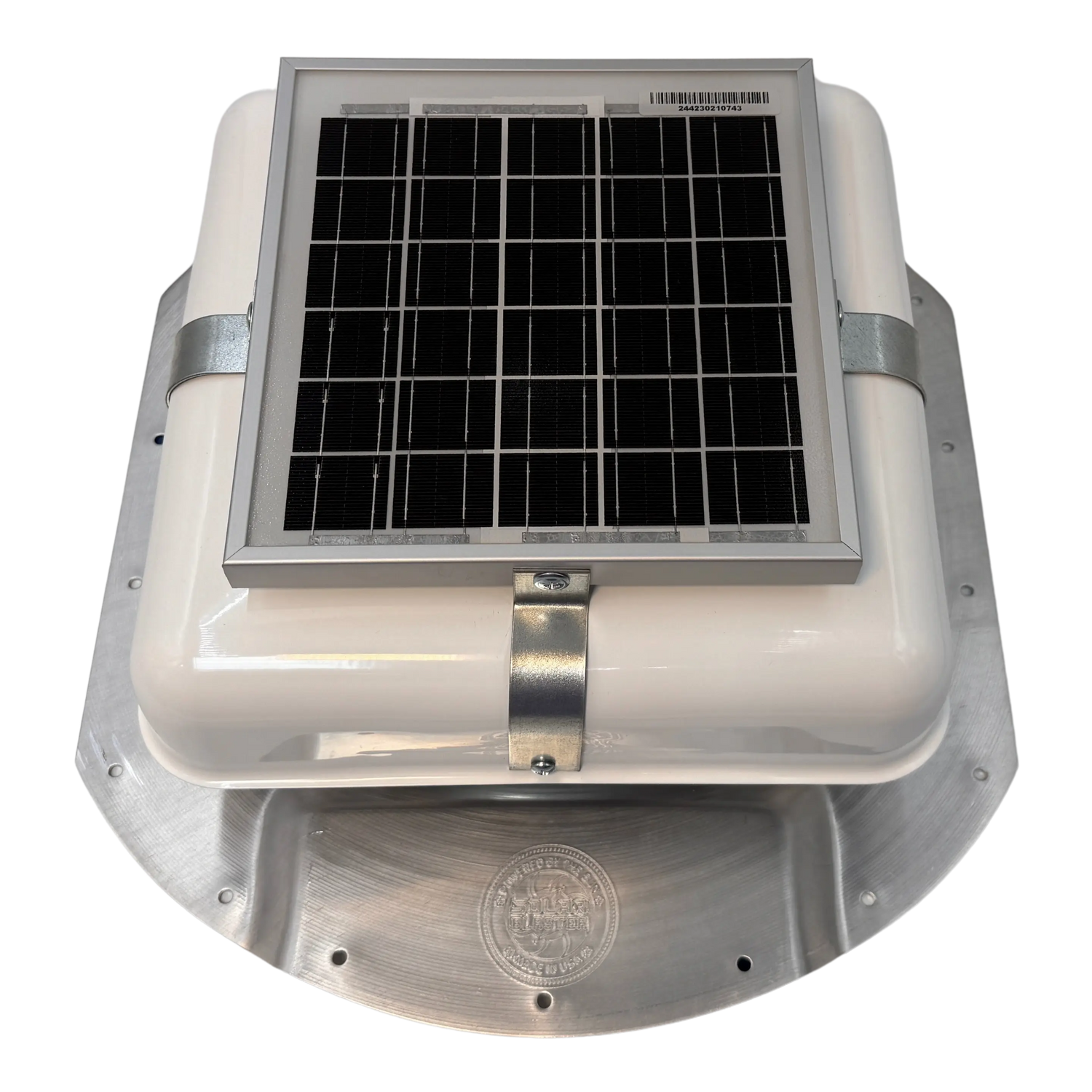

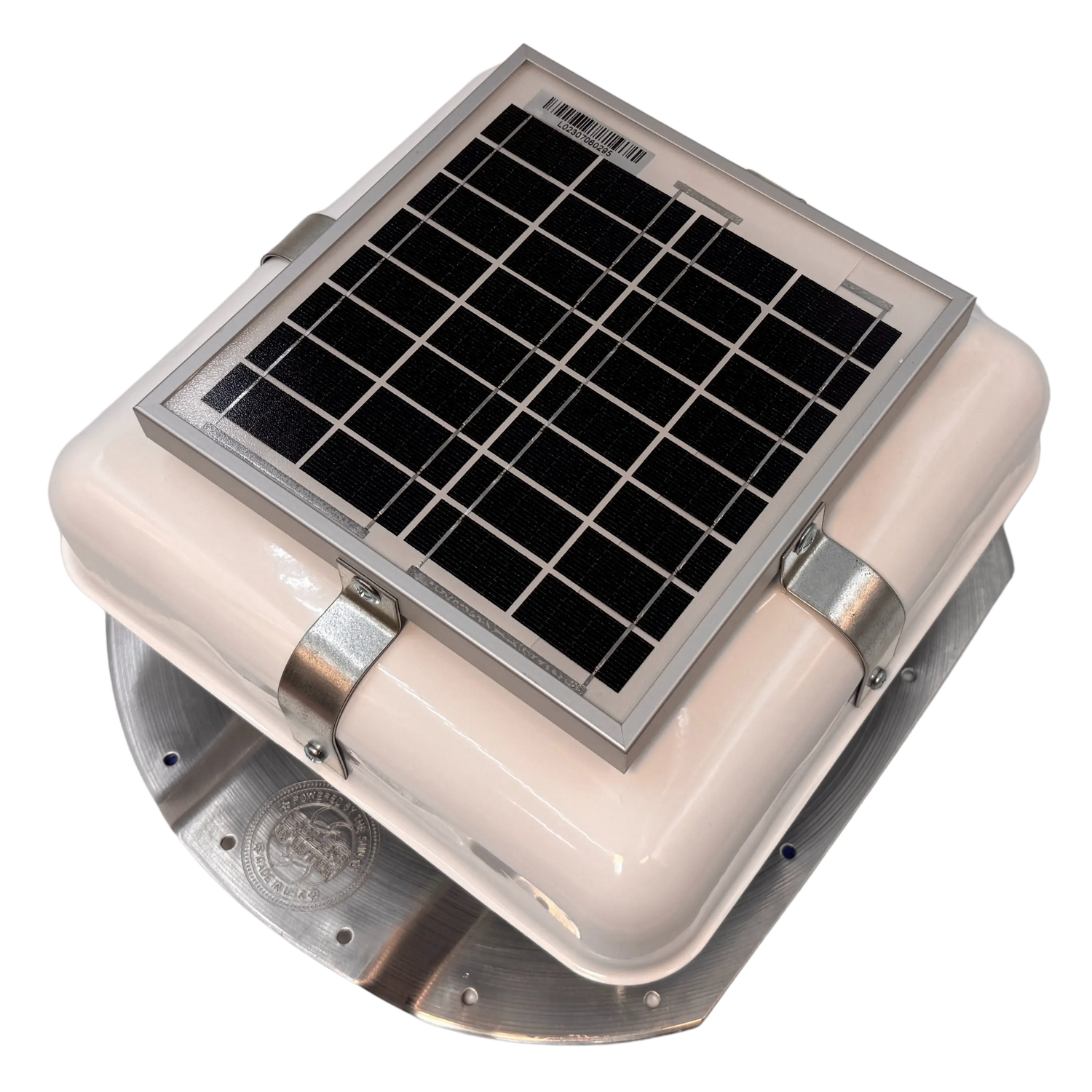

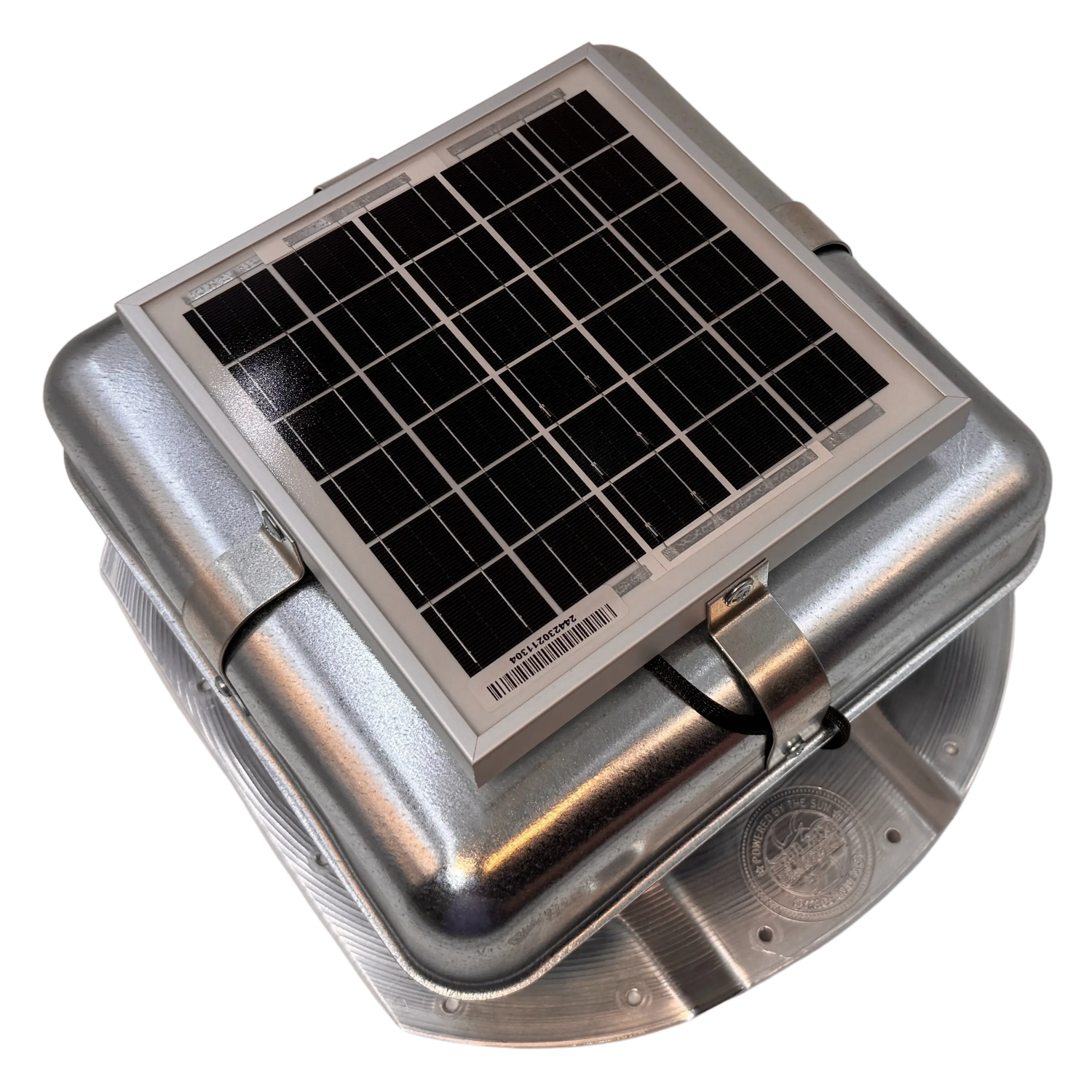

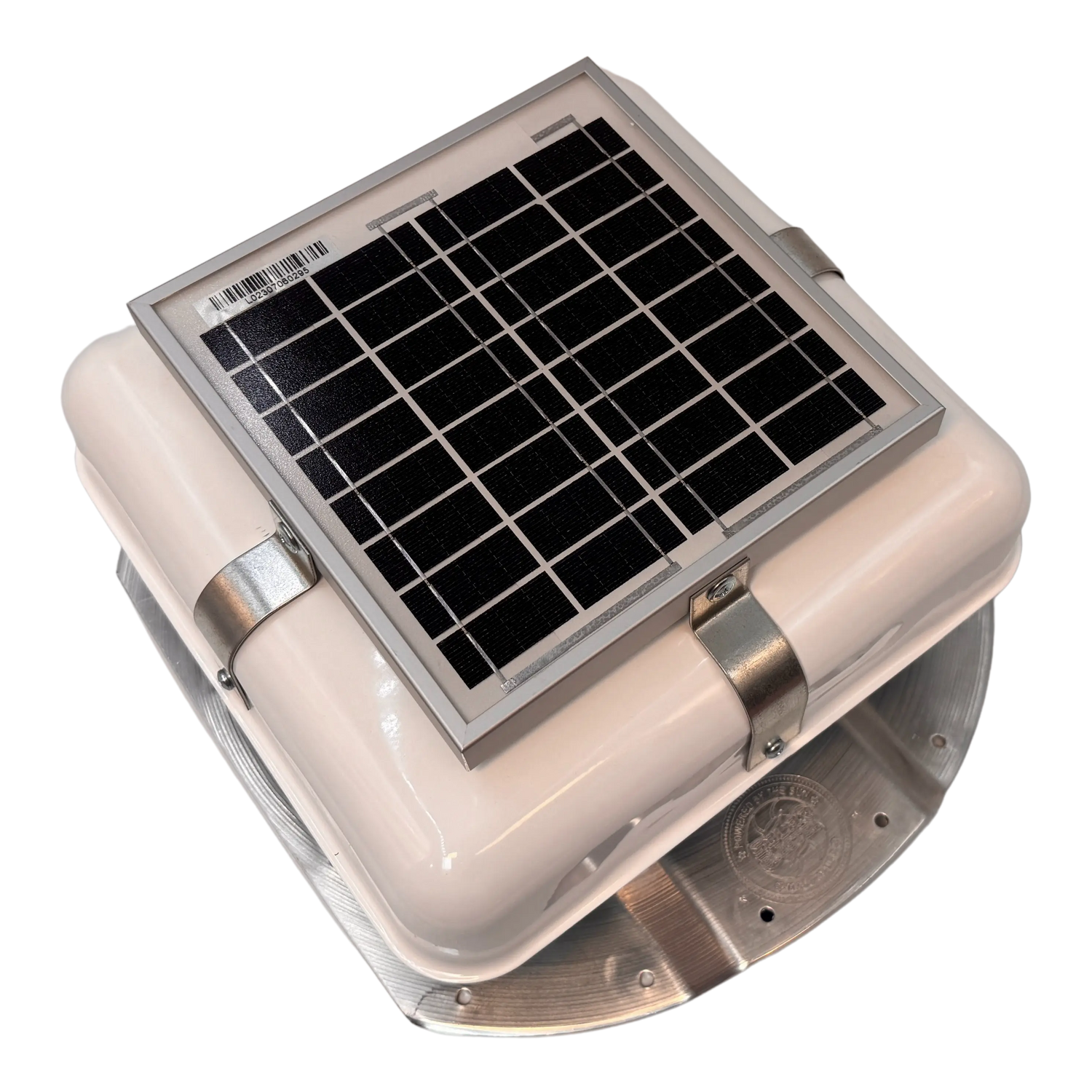

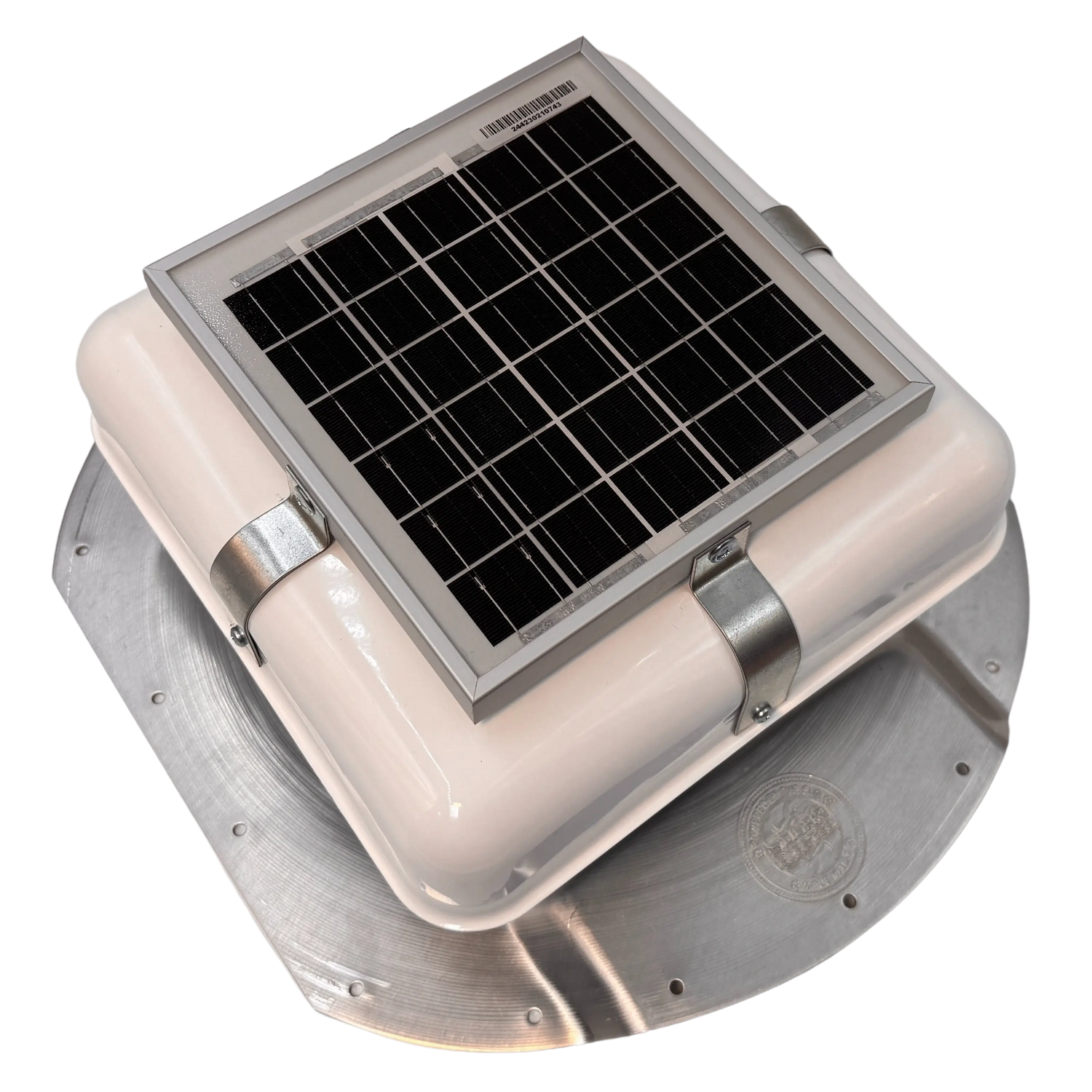

High quality, metal solar-powered roof vent for Conex shipping containers.
The Conex Solar RoofBlaster for Shipping Containers is a custom-designed ventilation solution that more efficiently removes hot, moist air from shipping containers using solar power. We have taken our very popular Solar RoofBlaster vent/fan unit and designed a special form-fitting flashing that will sit flush on top of a Conex shipping container! So we now offer not only a solar tube lighting solution for your Conex® shipping container, but we also provide a ventilation solution.

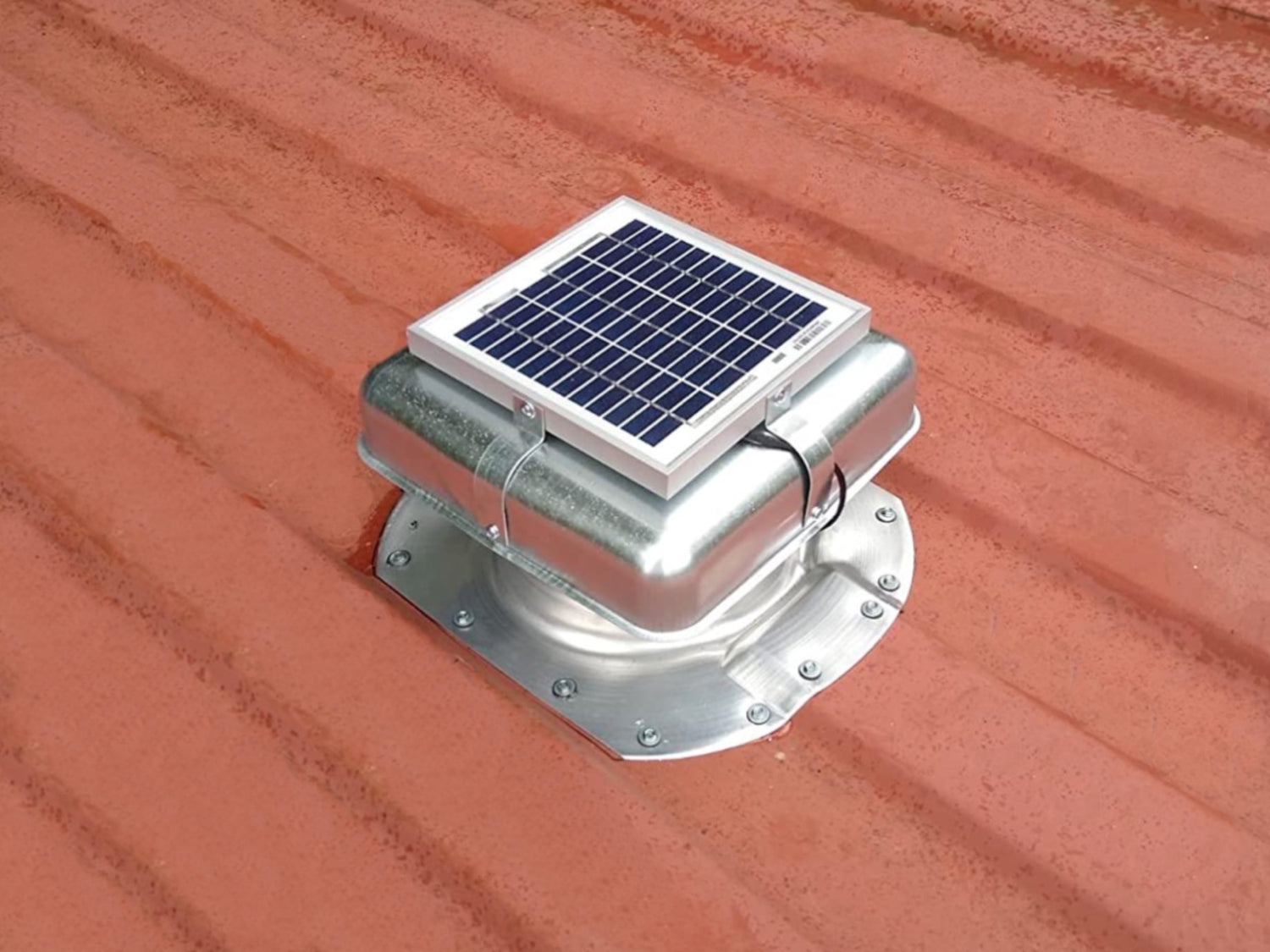

Placing the vents evenly across the top of your shipping container will promote uniform air circulation with accompanying intake vents (sold separately). Uniform air movement significantly reduces the risk of mold, mildew, wood rot, and pest infestations while creating a cooler, more comfortable work environment in shipping containers. It also improves air quality, prevents tool rusting, and mitigates heat buildup.
What about my container's roof integrity? Once installed, your container's roof integrity is restored to full strength due to the special design and attachment protocol. We don't just cut a hole and adhere a vent over the hole. With the installation hardware, the vent itself becomes part of your container's structure restoring its integrity. This is a CRUCIAL difference between what Solar Blaster offers and our competitor's products. We also ONLY affect one roof rib and not two.
Applications include shipping containers with 3.5" or 6.5" container roof ribs. The 3.5" roof rib size is MUCH MORE common than the 6.5" roof ribs but don't assume anything and measure first.
Conex Solar RoofBlaster™ roof vent fans help boost the effectiveness of what would otherwise be a passive vent — so any time the sun is shining and heating up your container, our vents will be working to exhaust all of that hot air. And when the sun is not out, our vents still operate as a passive vent letting the hot air rise and escape without the assistance of the solar-powered fan.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product features
Click to find out more about this product.
Conex Solar RoofBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |

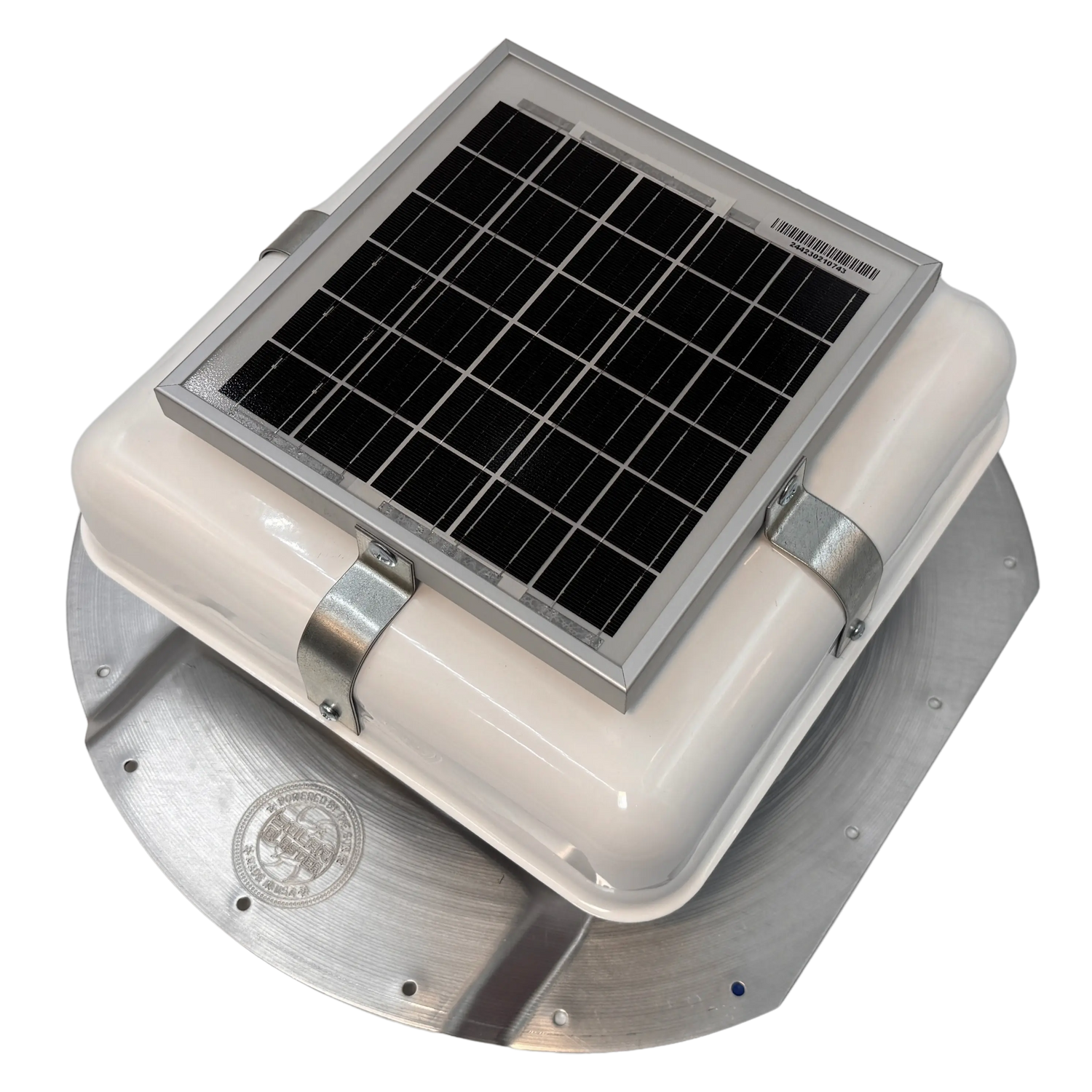

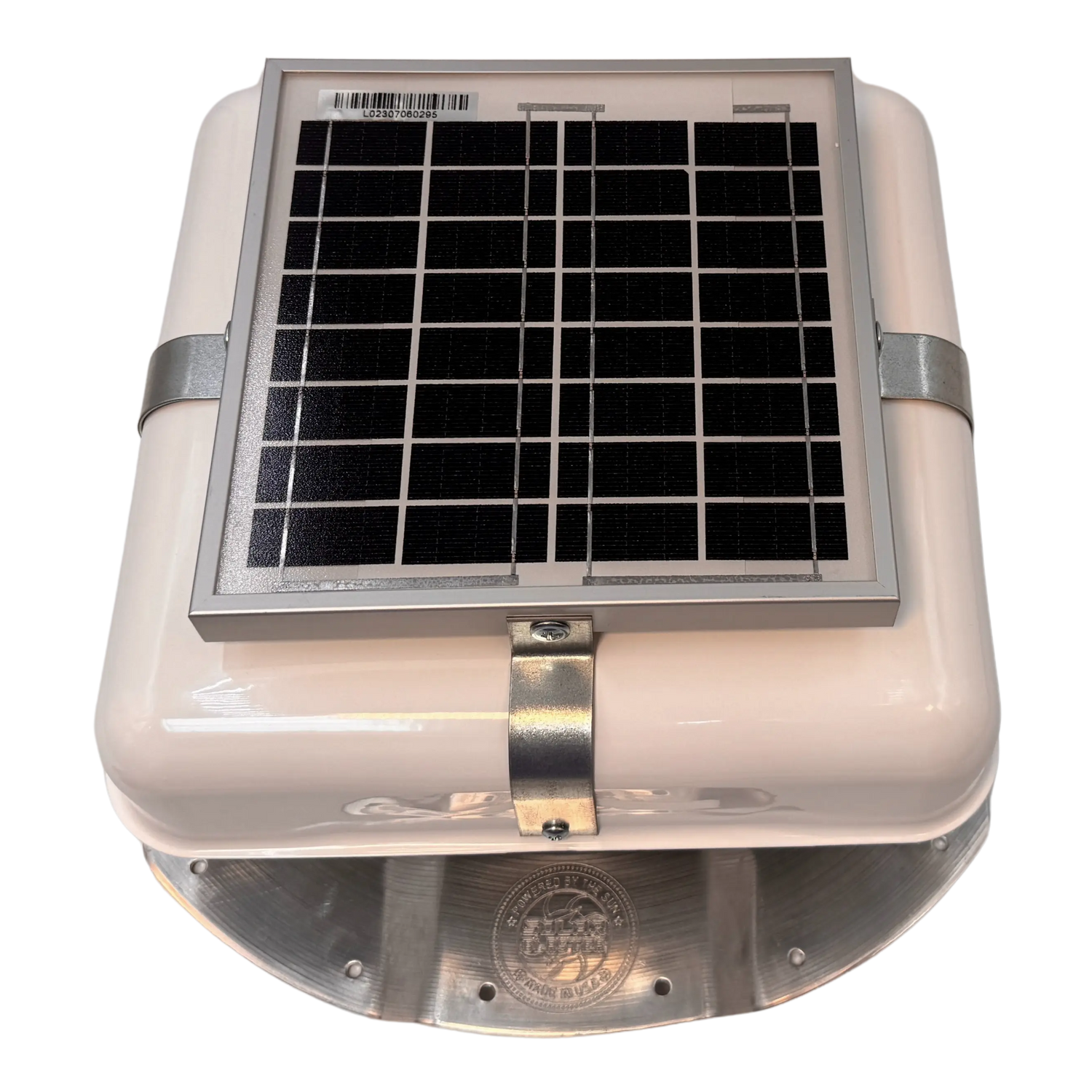

| Vent Colors | Galvanized, White |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4 or 4.4 lbs |
| Gross Weight | 5 or 6.2 lbs |
| Boxed Size | 14x14x9.5 16x16x9 |
| Warranty | 5 years |
