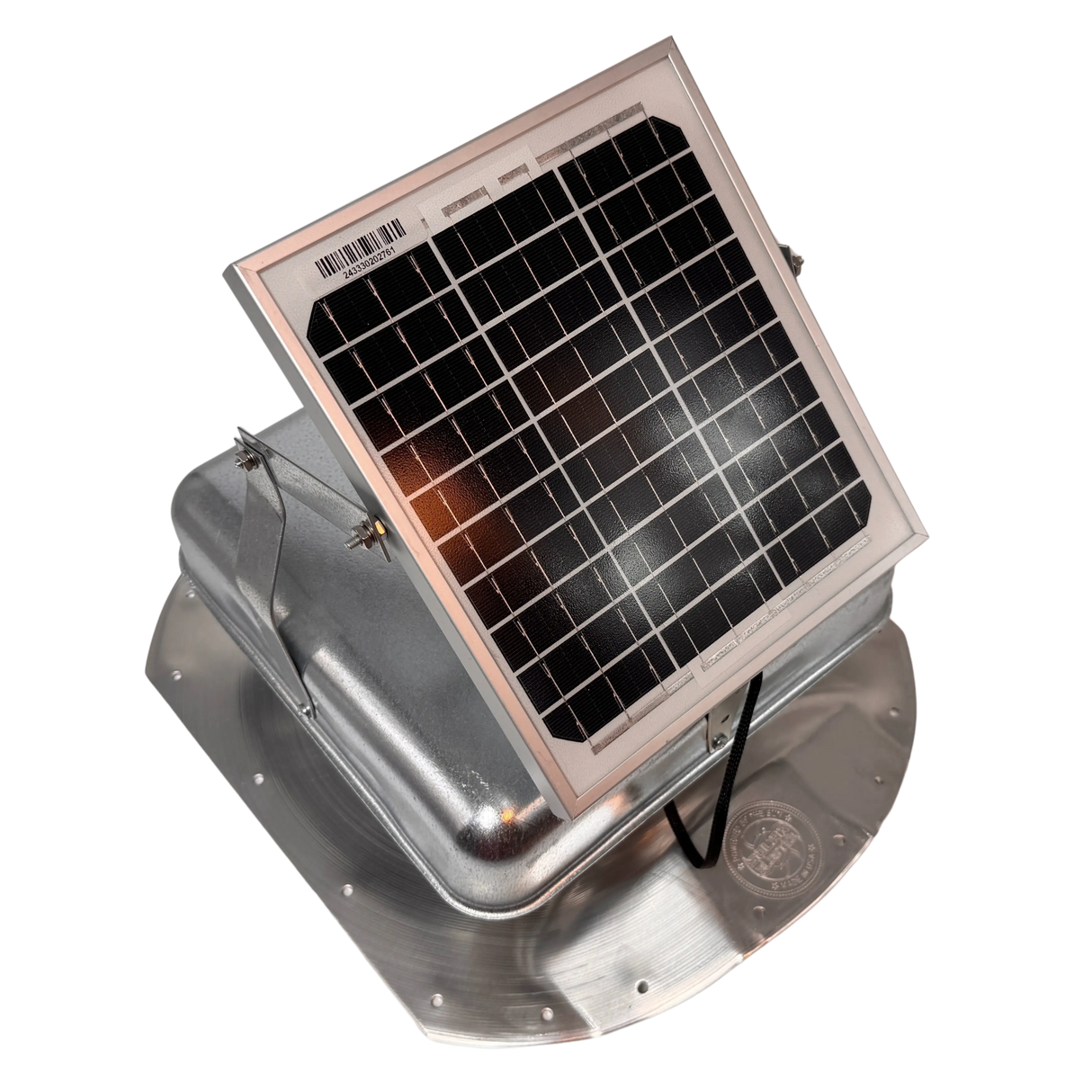

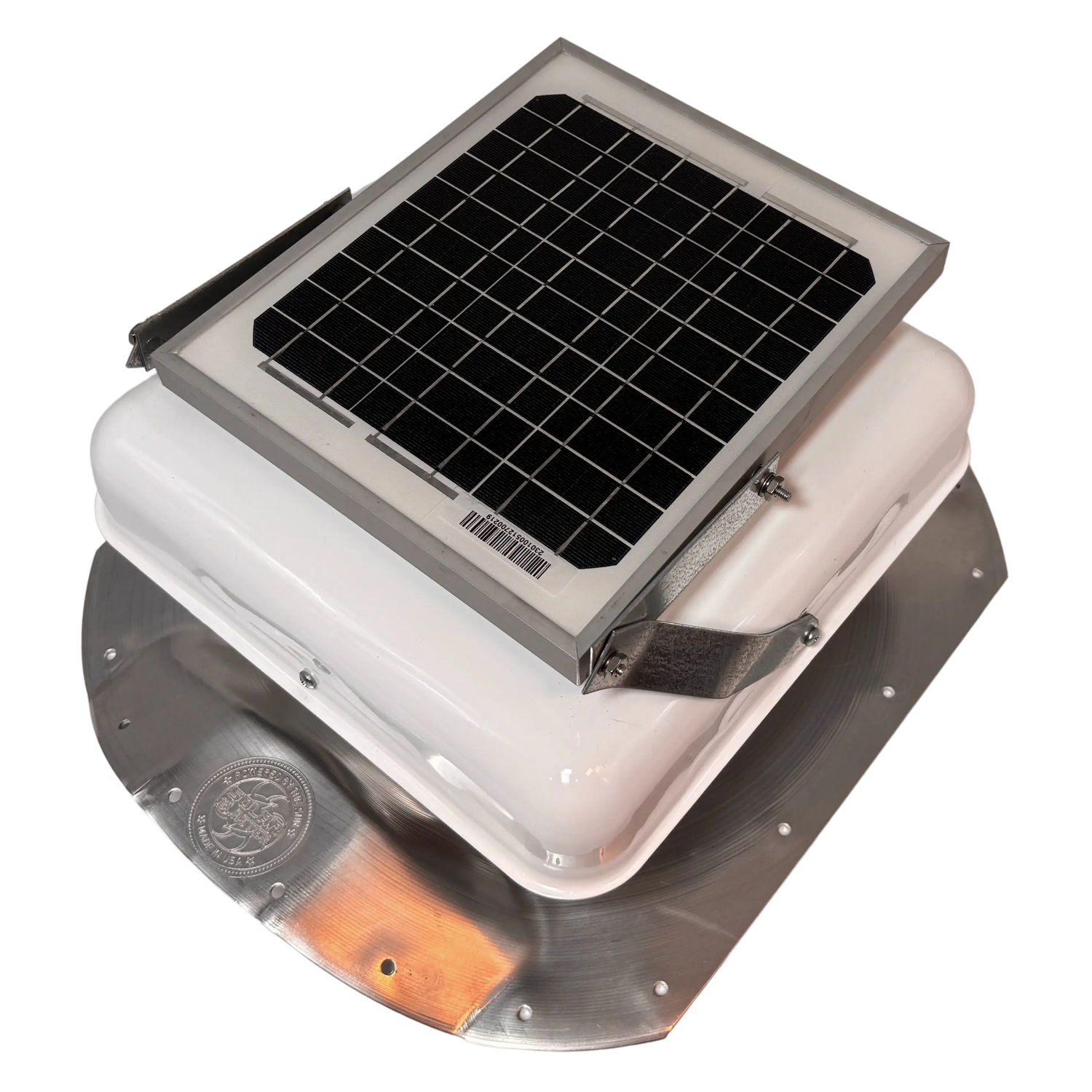

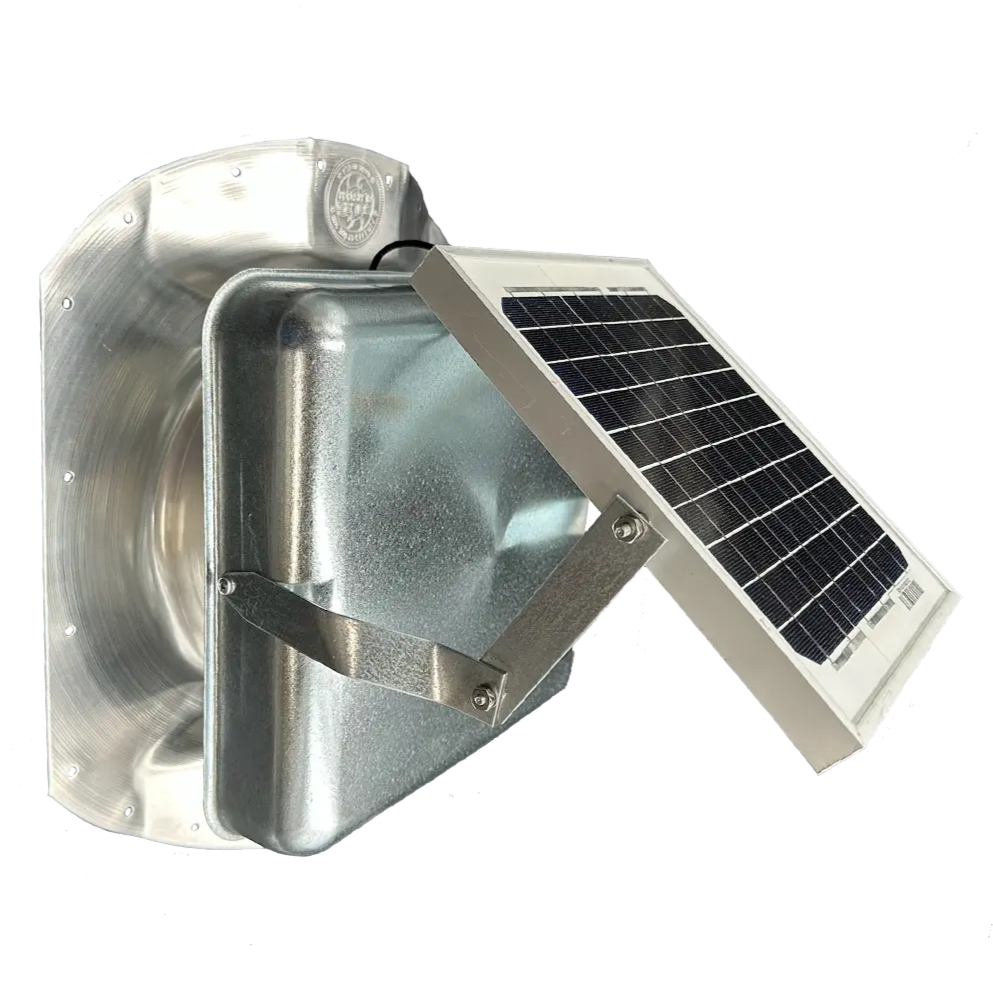

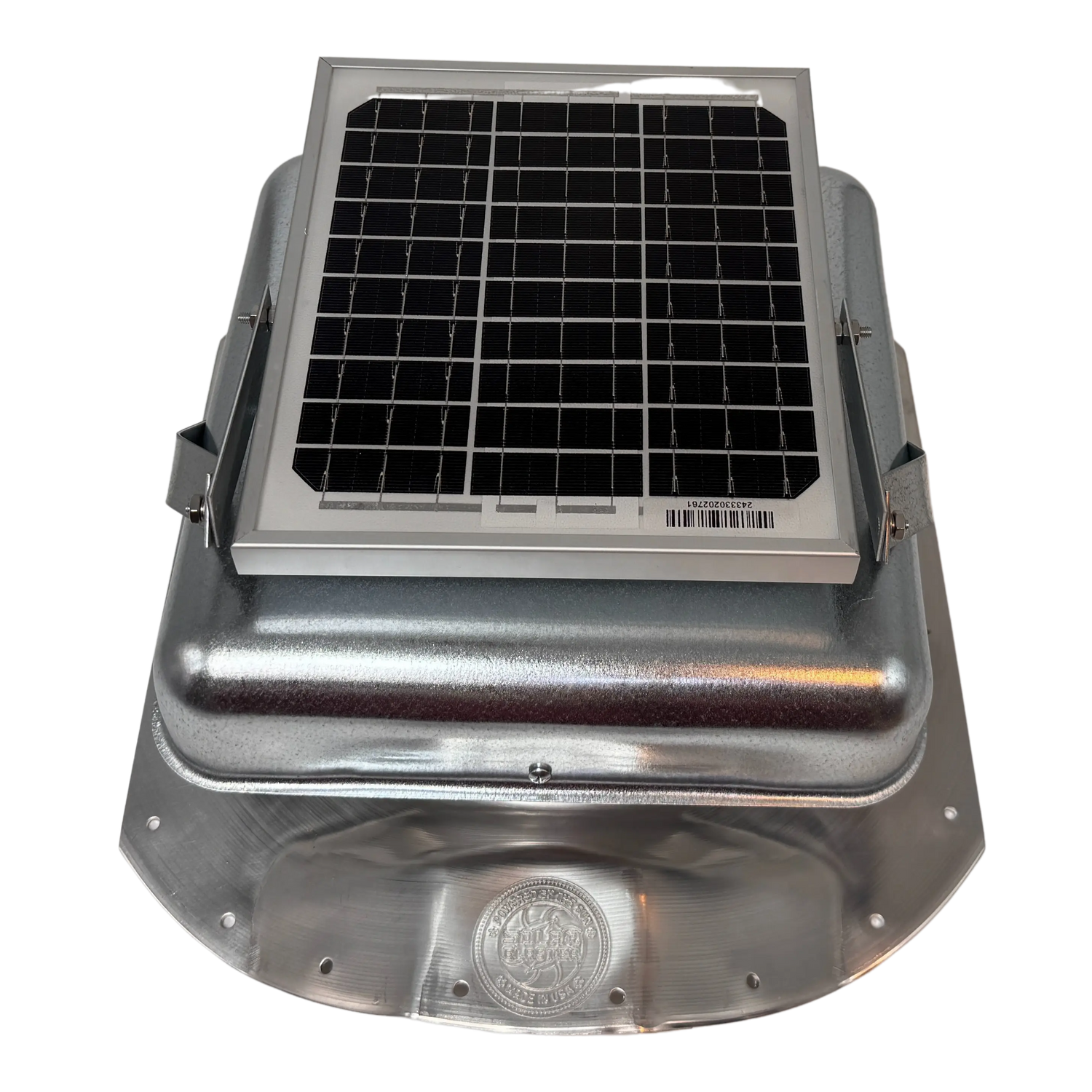

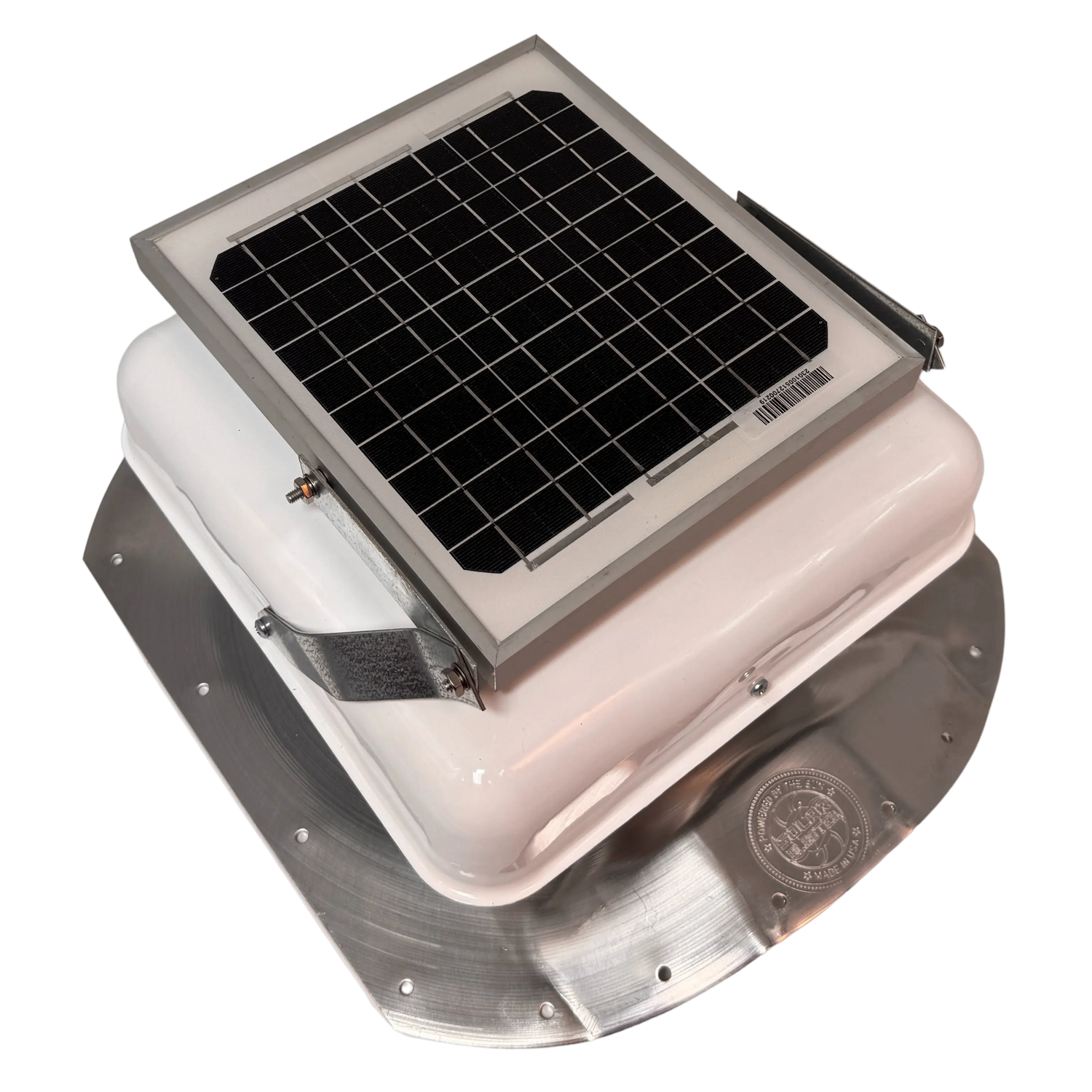

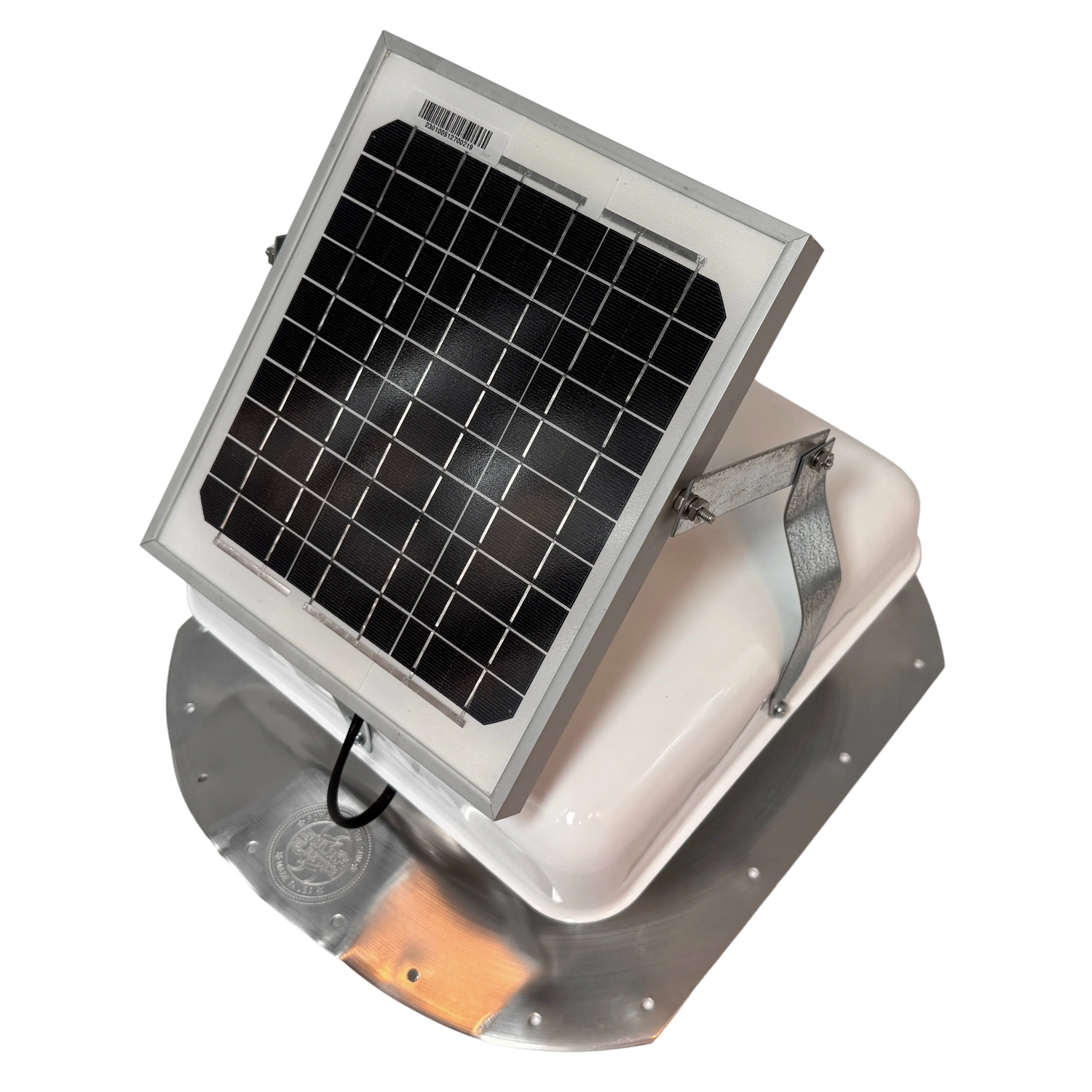

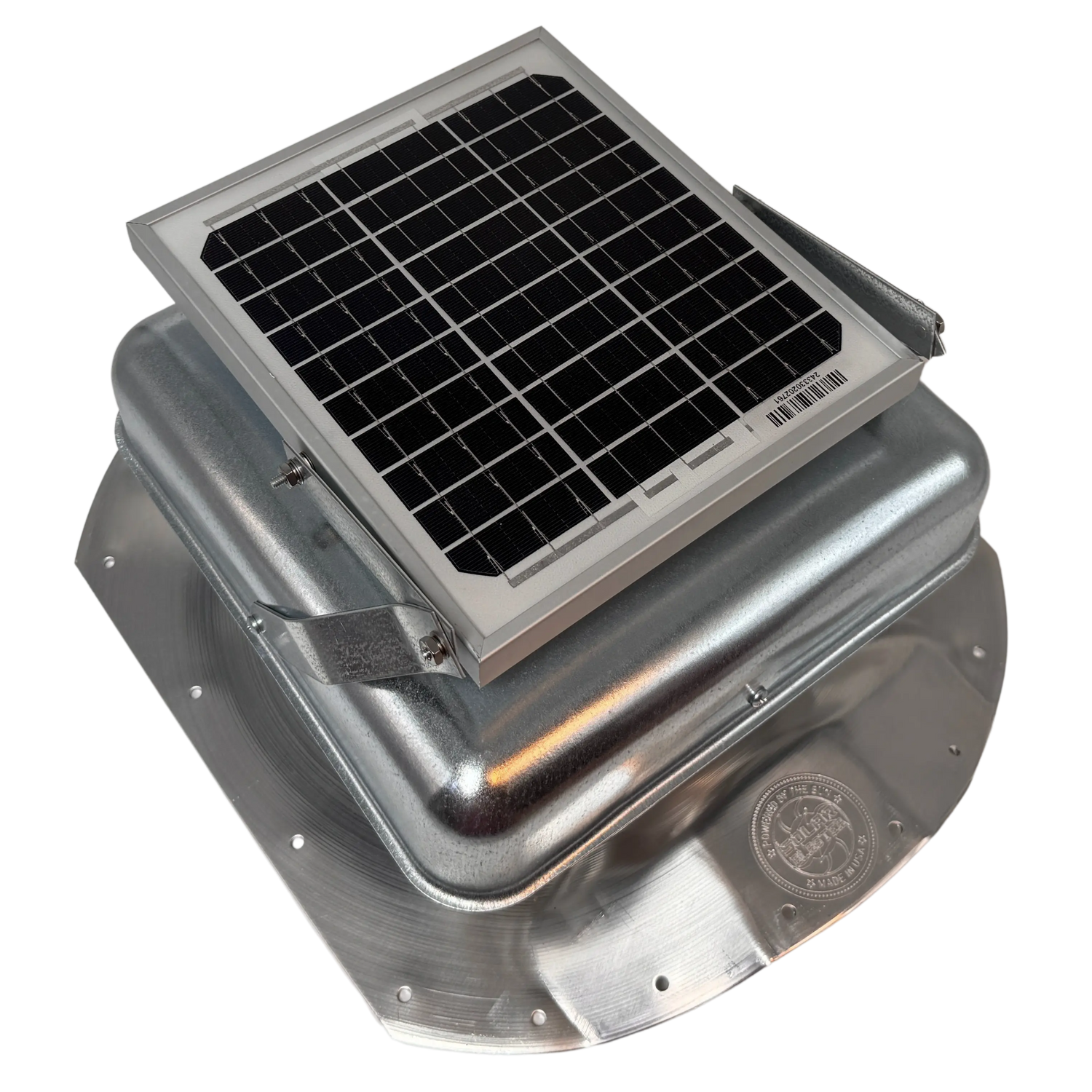

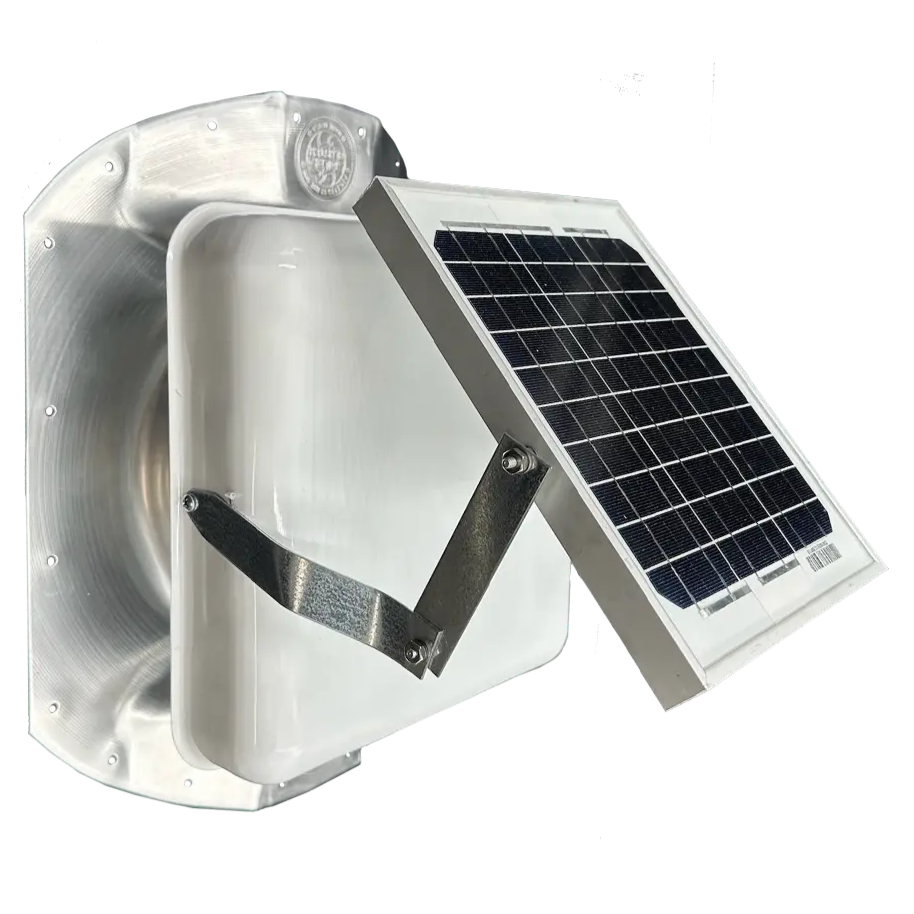

Conex Solar Mega SideBlaster Adjustable for Shipping Containers
Couldn't load pickup availability
Air Replenishment Rate
Air Replenishment Rate
How quickly will this vent replenish the air in a 10'x10'x10' space? Every 10.4 minutes with proper intake ventilation.
Warranty
Warranty
5-year warranty
Ventilation Done Right
High quality, metal solar-powered roof vent for Conex shipping containers.
The Conex Solar Mega SideBlaster Adjustable for Shipping Containers is a custom-designed ventilation solution designed to mount on your container's sides rather than the roof. Our vents more efficiently remove hot, moist air from shipping containers using solar power. We have taken our very popular Solar Mega RoofBlaster vent/fan unit and designed a special form-fitting flashing that will sit flush on the side of a Conex shipping container! So we now offer not only a solar tube lighting solution for your Conex® shipping container, but we also provide a ventilation solution.

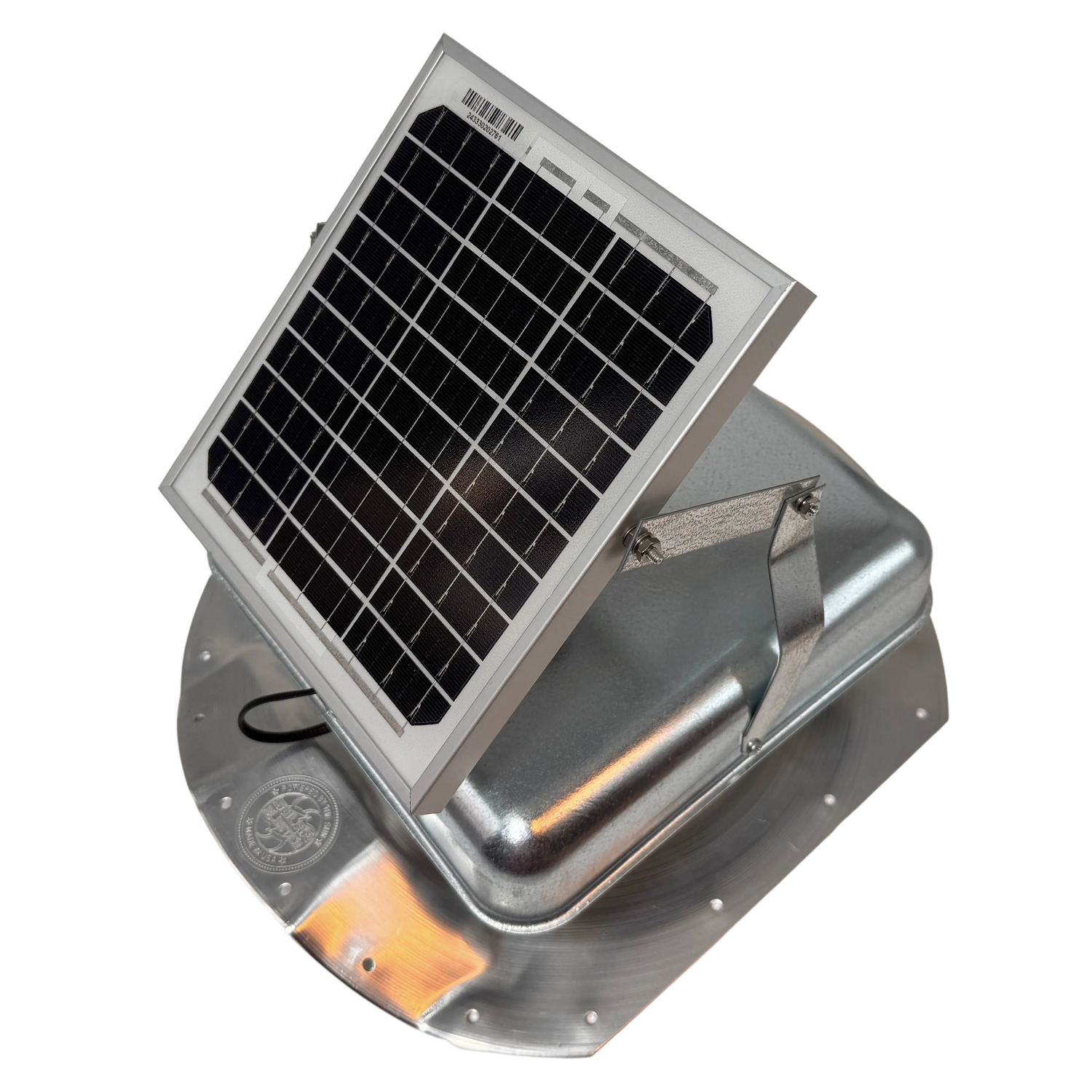

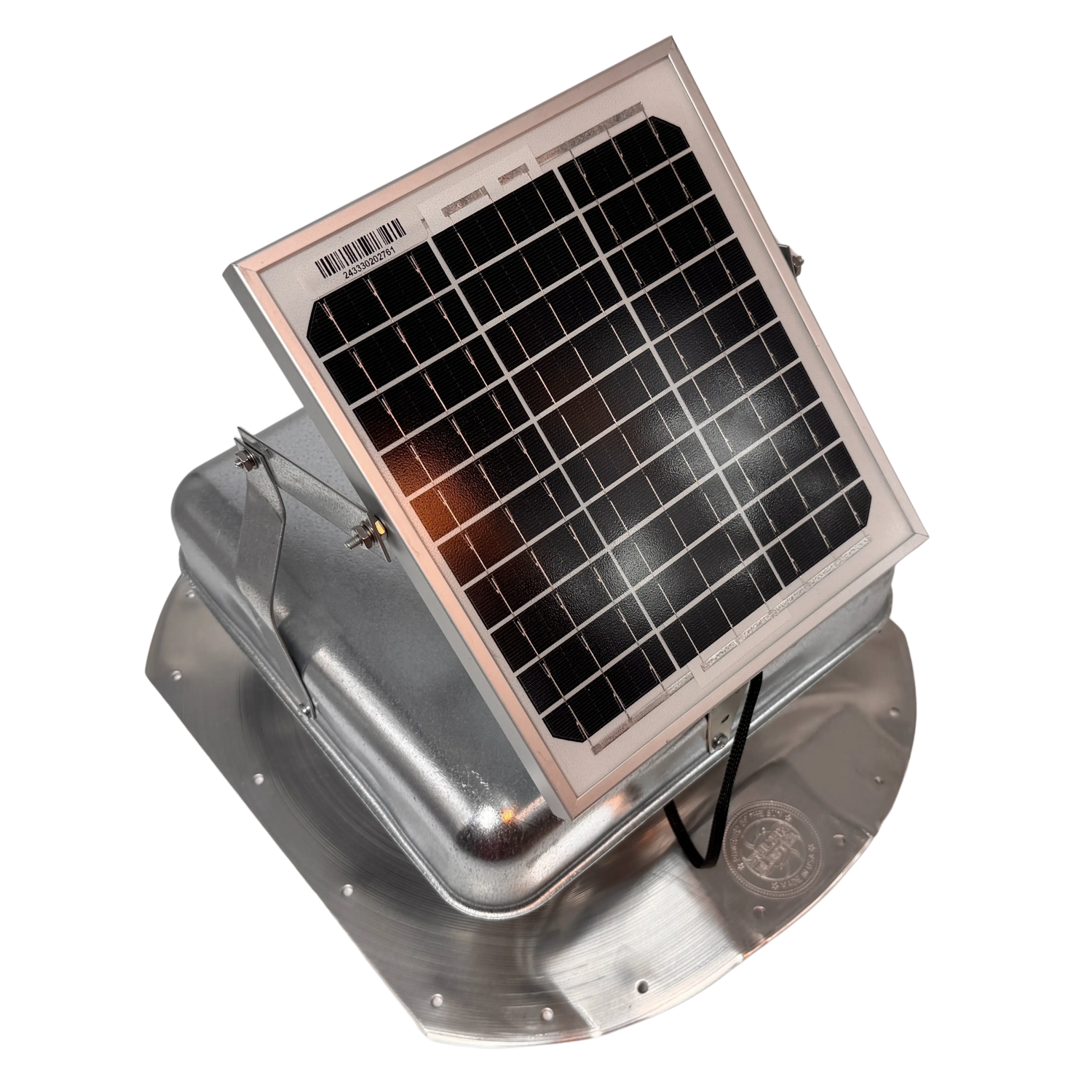

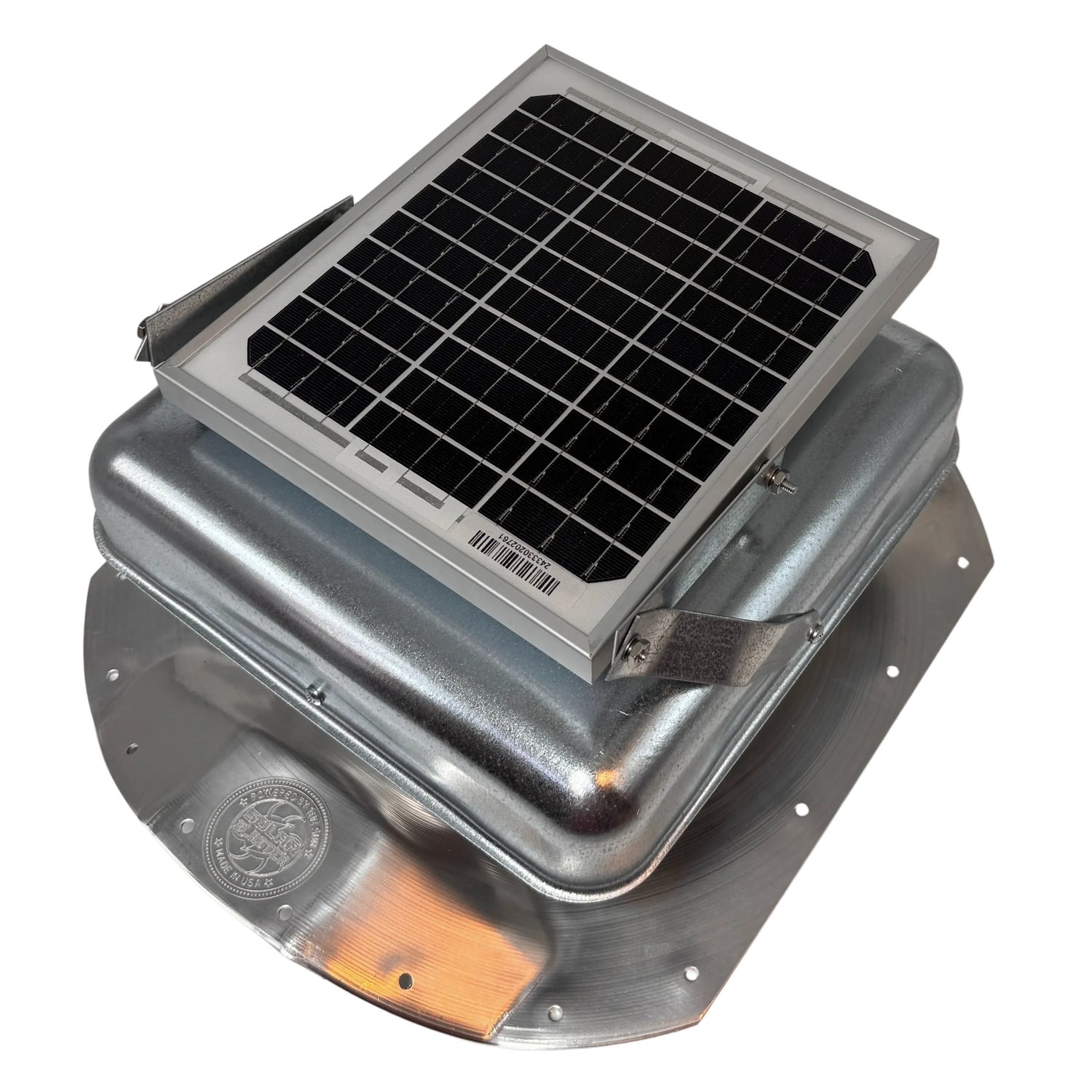

The "Mega" adds a 5W solar panel and a larger fan to exhaust more hot air faster. "Adjustable" adds the ability to adjust the angle of the solar panel on top of the unit so it can be pointed more toward the sun.
Placing the vents evenly across the top of your shipping container will promote uniform air circulation with accompanying intake vents (sold separately). Uniform air movement significantly reduces the risk of mold, mildew, wood rot, and pest infestations while creating a cooler, more comfortable work environment in shipping containers. It also improves air quality, prevents tool rusting, and mitigates heat buildup.
Applications include shipping containers where a side-mount is preferred as opposed to a roof-mount.
Conex Solar Mega SideBlaster™ vent fans help boost the effectiveness of what would otherwise be a passive vent while also acting as a passive vent anytime the sun is not out.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product features
Click to find out more about this product.
Conex Solar Mega SideBlaster Adjustable Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 7.8W | |
| Solar Power CFM | 96 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2600rpm | |
| Noise Level | 42.6 dBa | |
| Air Flow | 96 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.65A | |
| Size | 120 x 120 x 25 mm | |
| Weight | 5.8oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 10.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.37V |
| Max Amps (Imp) | 0.29A |
| Open Circuit (Voc) | 20.04V |
| Short Circuit (Isc) | 0.30A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (3x10) |
| Module Size | 225mm x 195mm x 18mm |
| Solar Panel Weight | 1 lb |
| Rated Life | 25 years |
| Adjustable? | Yes |
| Entire Vent | Specs |
|---|---|
| Vent opening size | 7.5" diameter |
| Net Free Vent Area | 44.18 sq. inches |
| Mesh Screen | ⅛" pest-free |
| Vent Material | 14 gauge aluminum |
| Hood Material | 24 gauge steel |

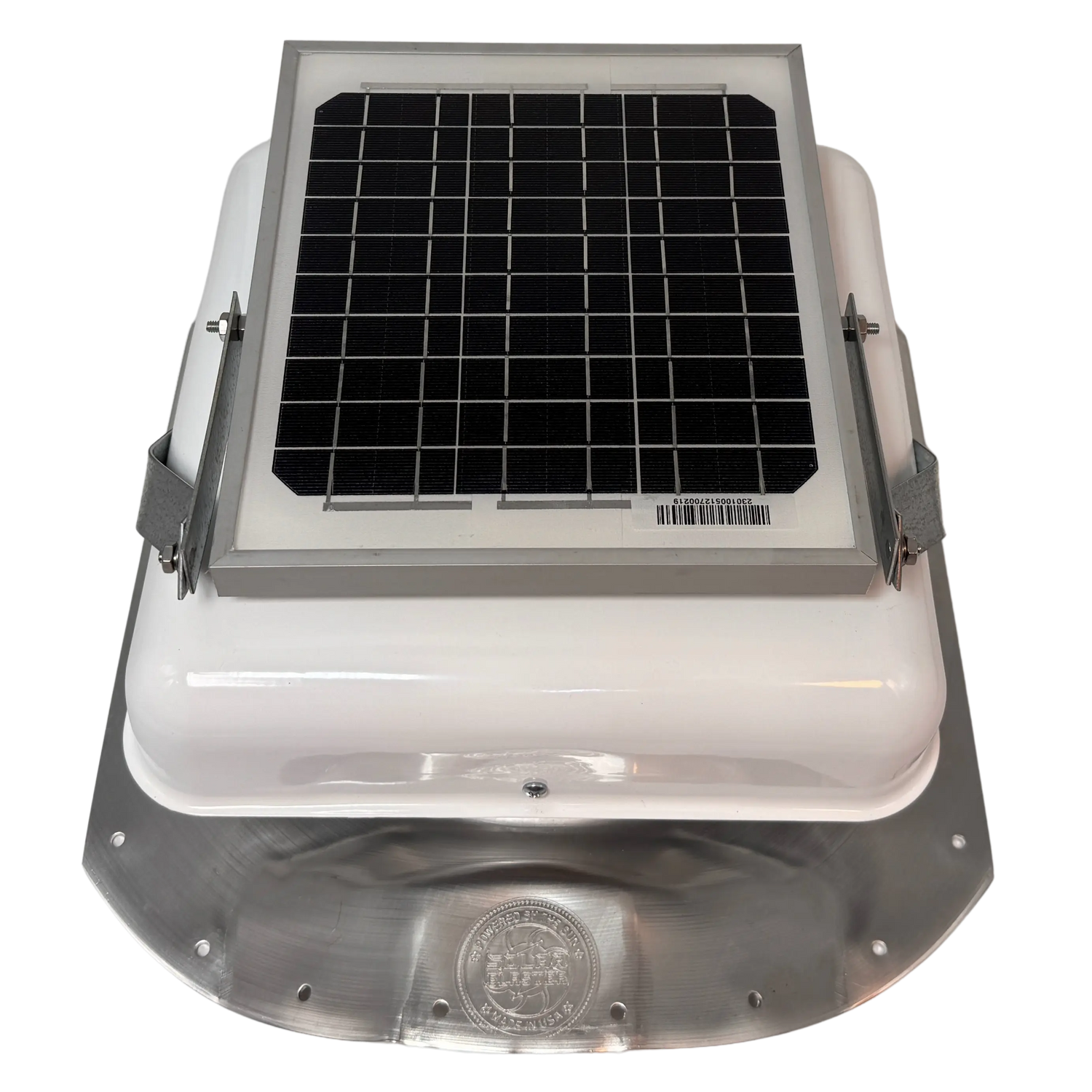

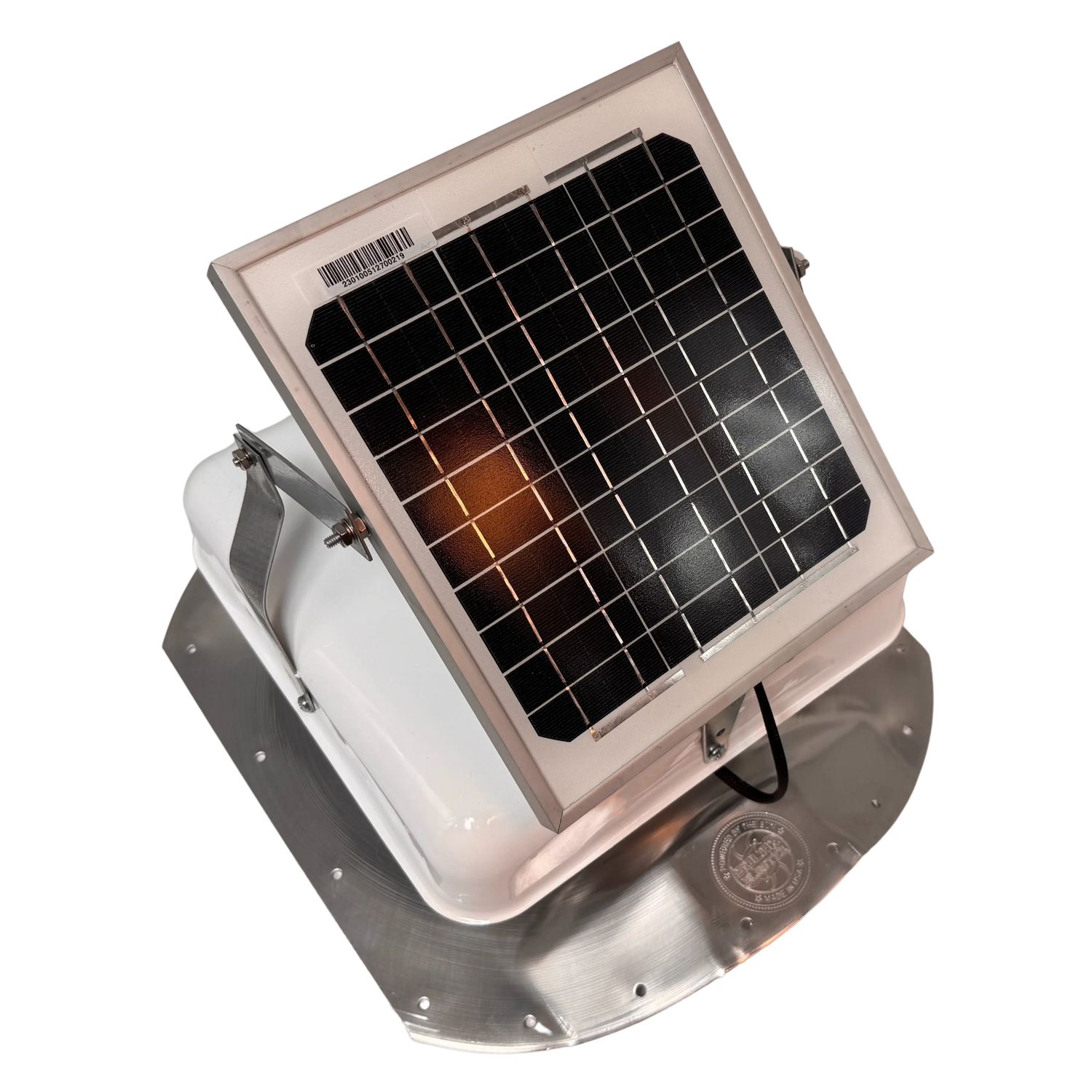

| Vent Colors | Galvanized, White |
| Panel Clips | galvanized steel |
| Base Flashing | 13.5x11.5 15.25x13.25 |
| Net Weight | 4.8 or 5 lbs |
| Gross Weight | 5.9 or 6.6 lbs |
| Boxed Size | 14x14x9 16x16x9 |
| Warranty | 5 years |
