Solar Metal RidgeBlaster
Couldn't load pickup availability
Air Replenishment Rate
Air Replenishment Rate
How quickly will this vent replenish the air in a 10'x10'x10' space? Every 28.4 minutes with proper intake ventilation.
Warranty
Warranty
5-year warranty
Ventilation Done Right

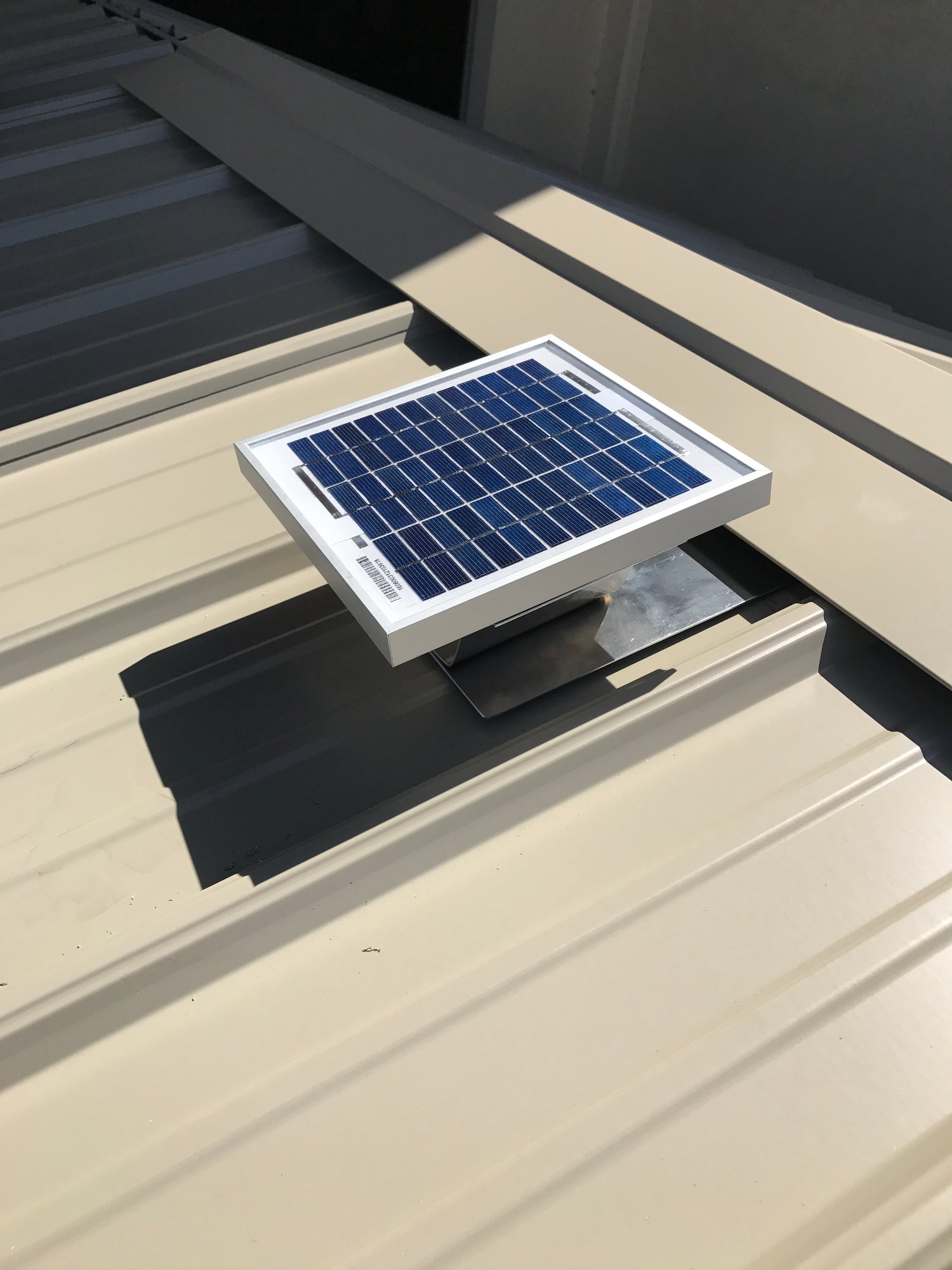

High quality, metal solar-powered roof vent for metal roofed structures (sheds, house, garages) with ridge venting.

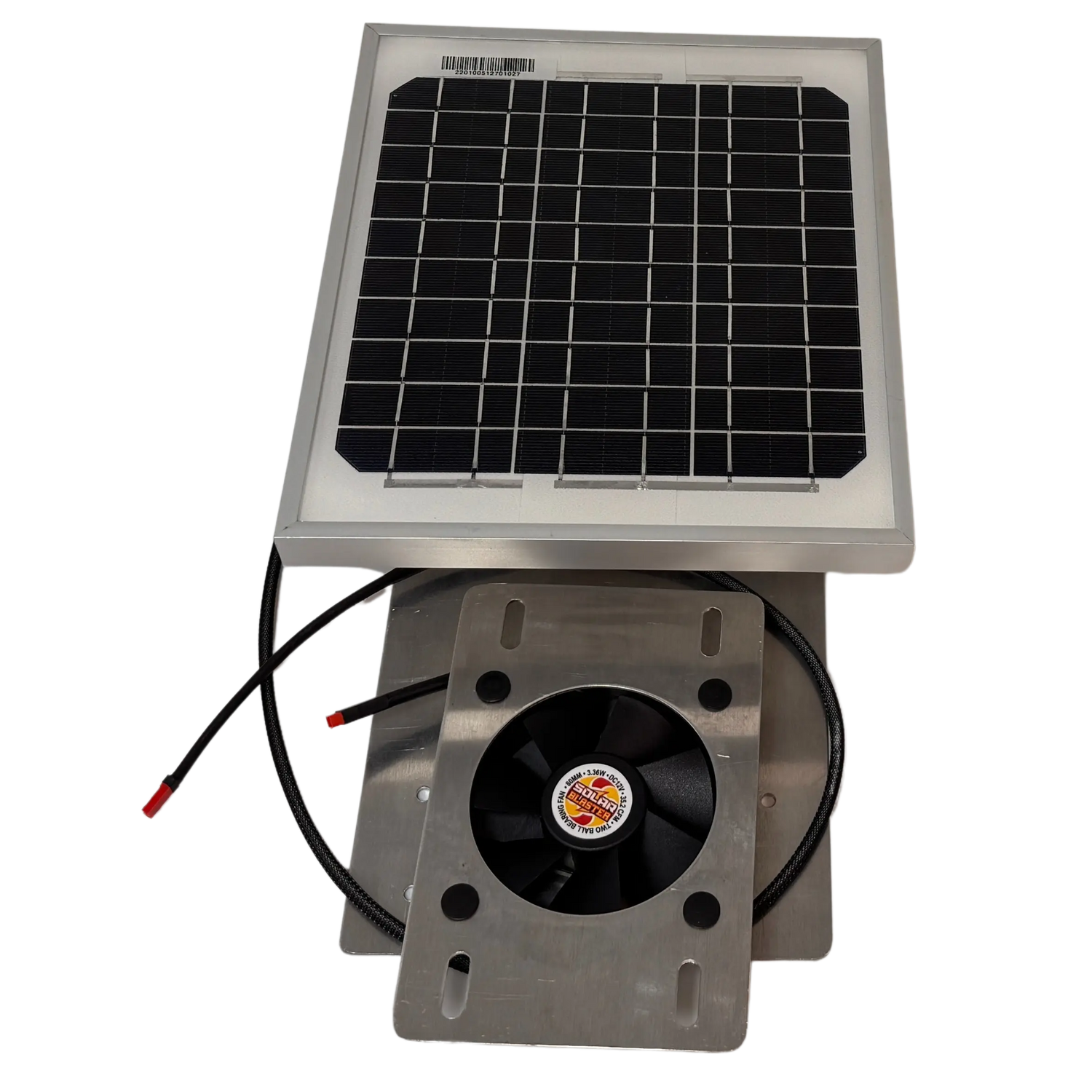

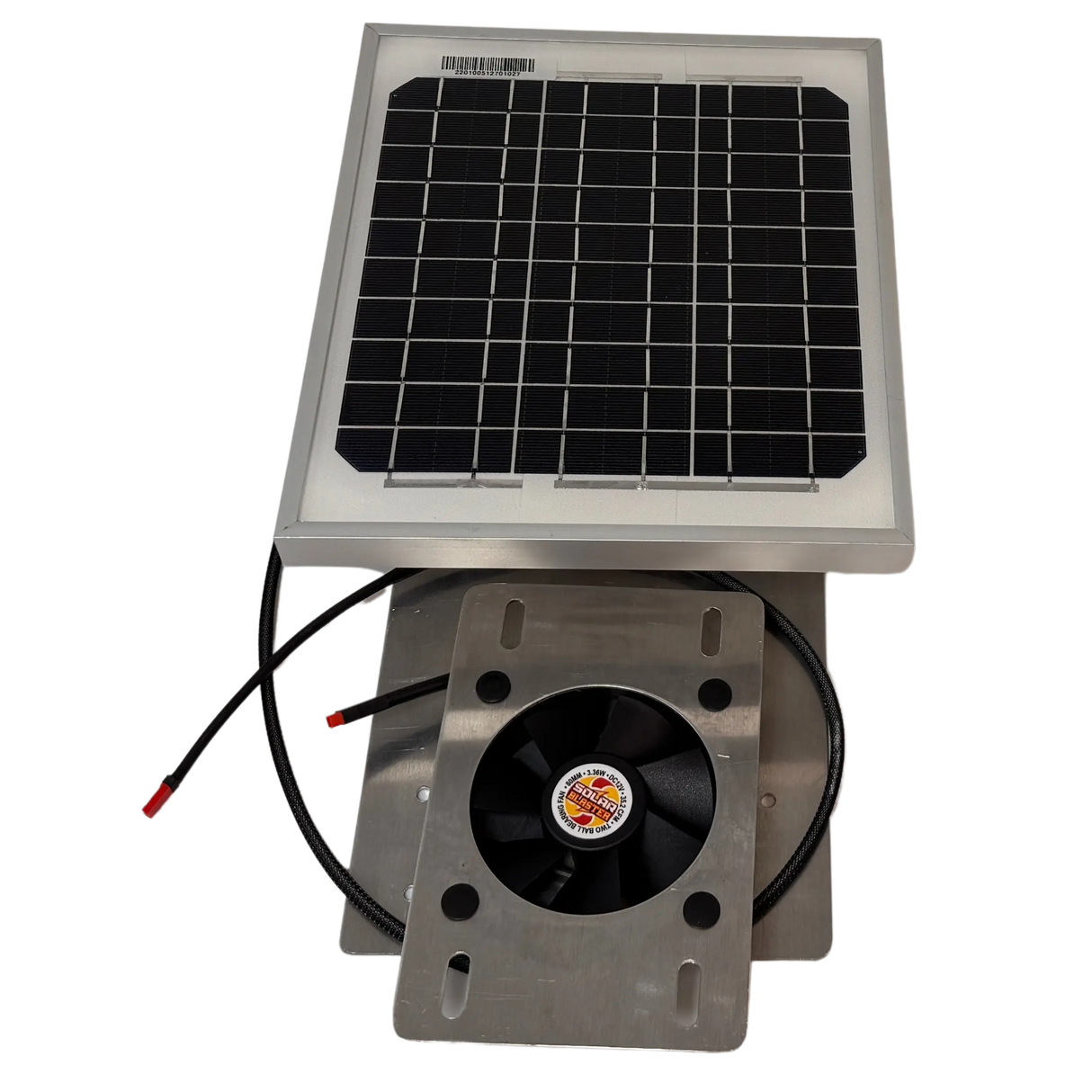

Our Solar Metal RidgeBlaster™ roof fan boosts your ventilation on metal roofs. This is a smaller version than our Solar RidgeBlaster, which sports three fans and a 10W solar panel. The Solar Metal RidgeBlaster has a 4.5W solar panel and one fan, which is a perfect application for sheds and garages with metal roofs. Remove hot air from the highest point even more effectively with Solar Metal RidgeBlaster.

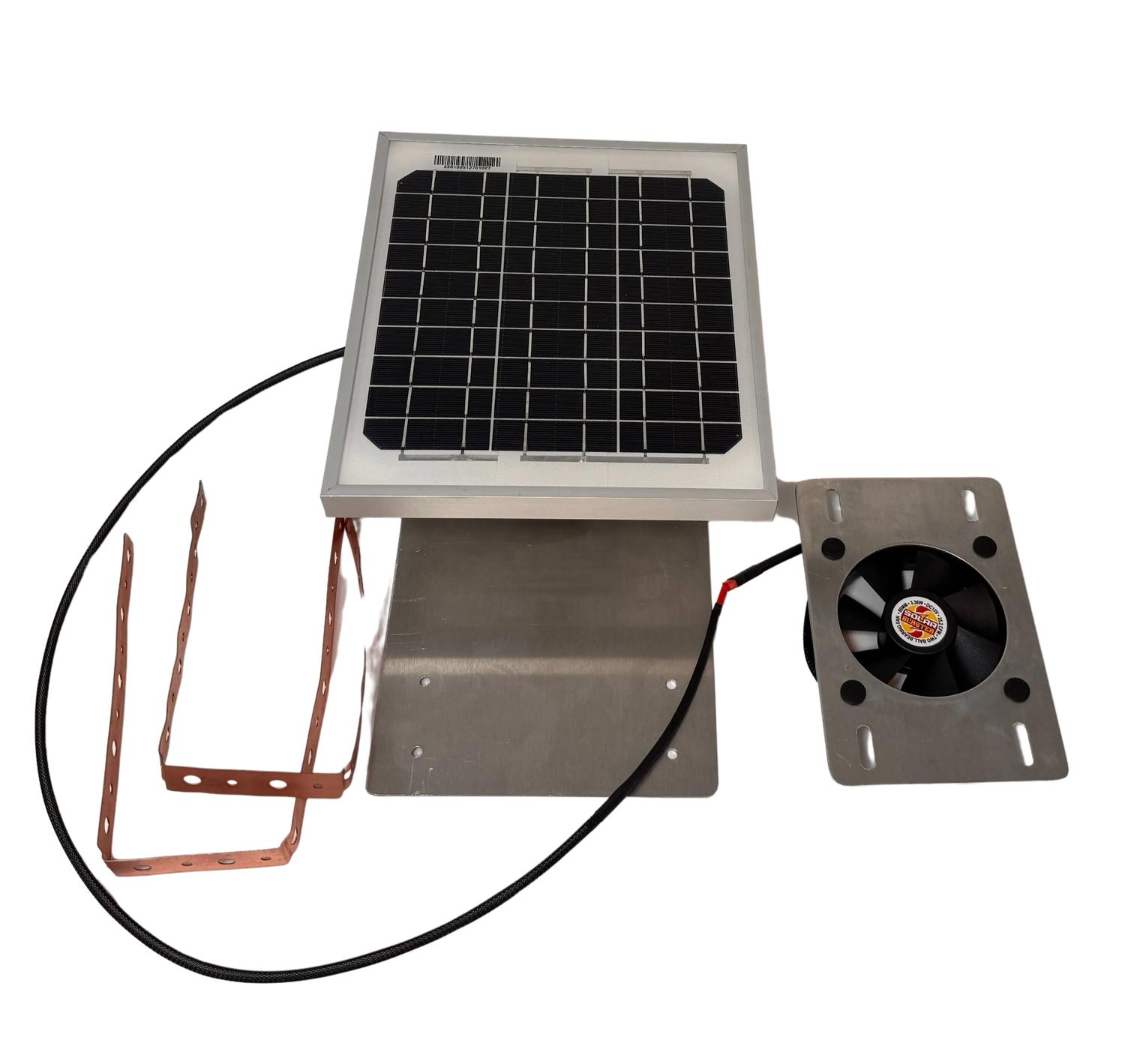

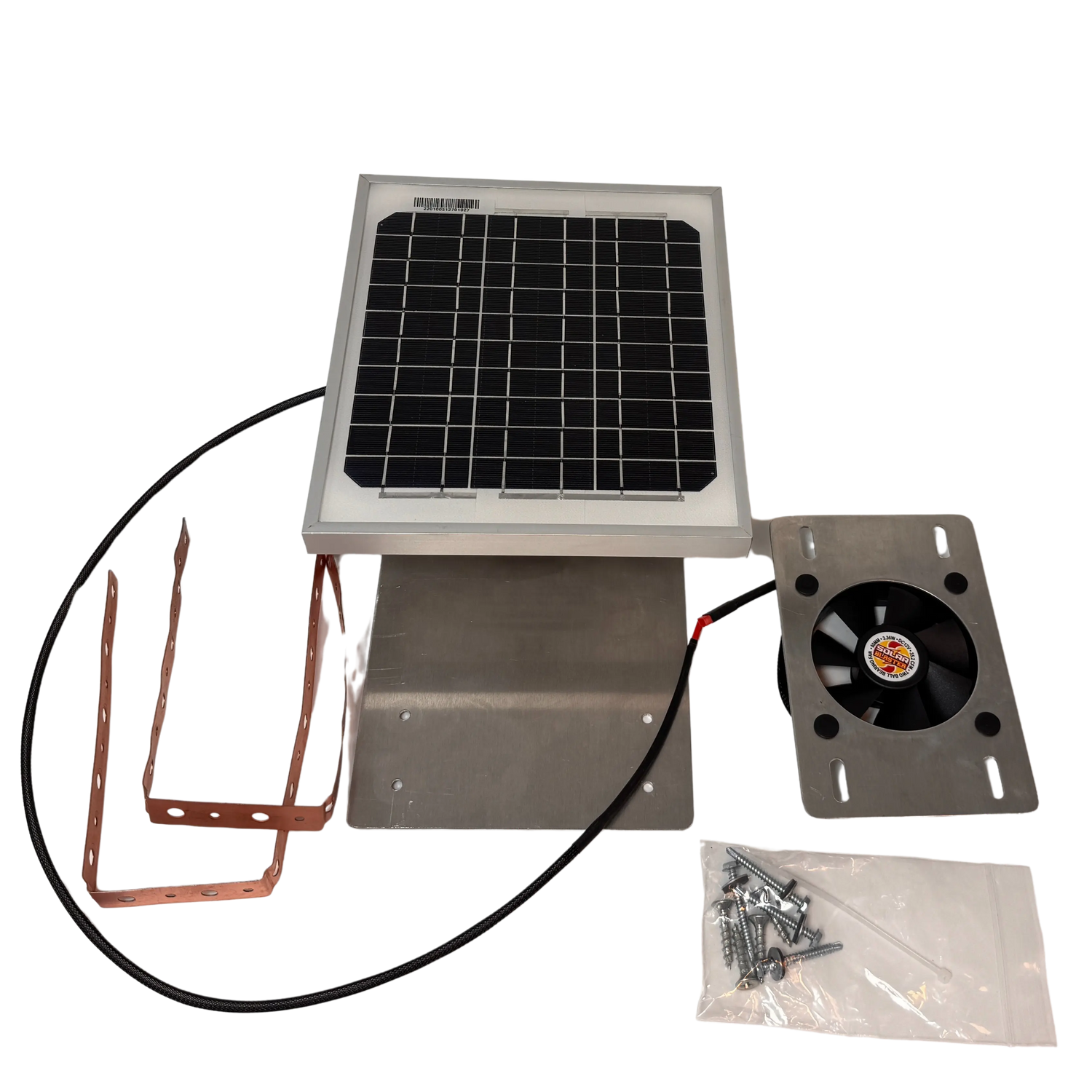

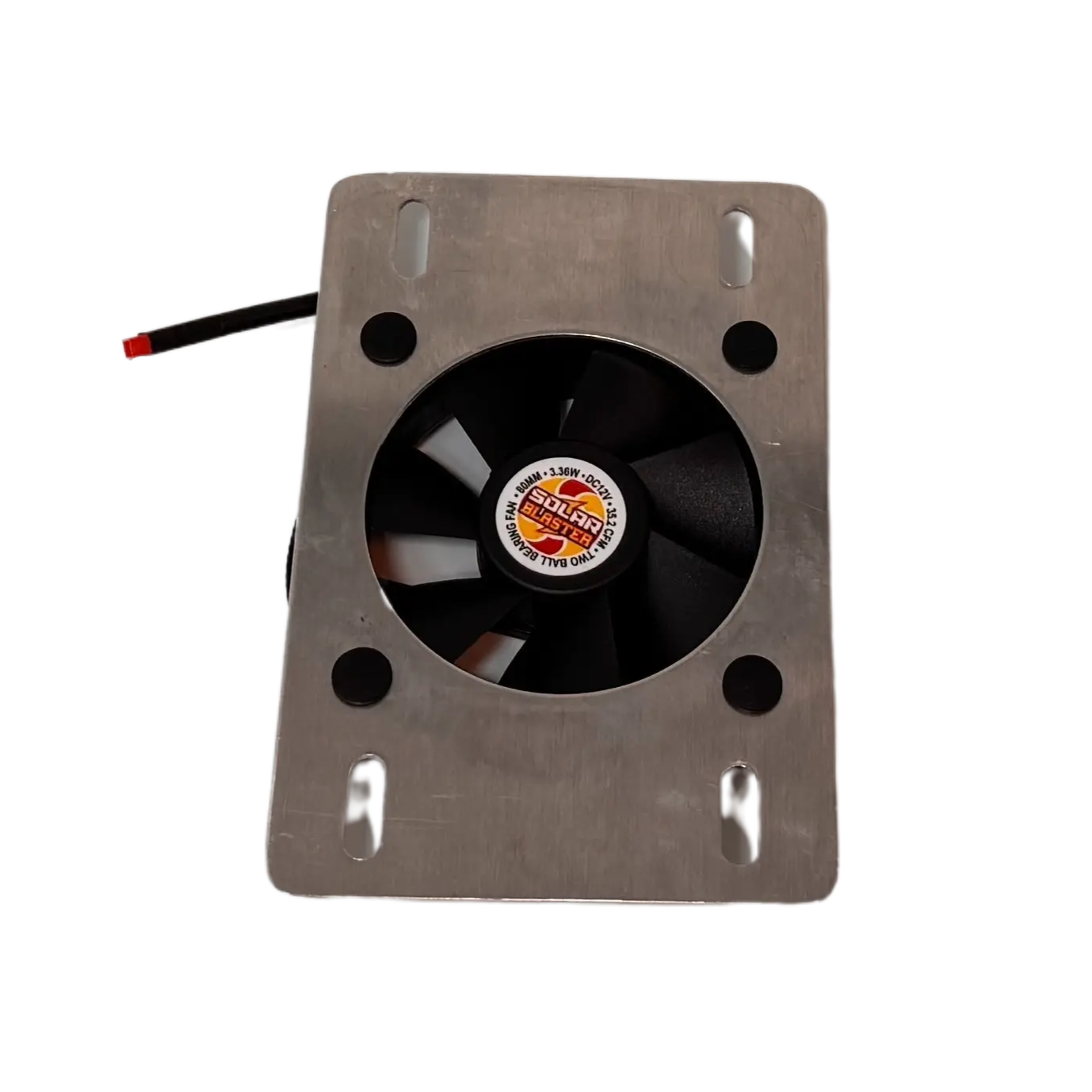

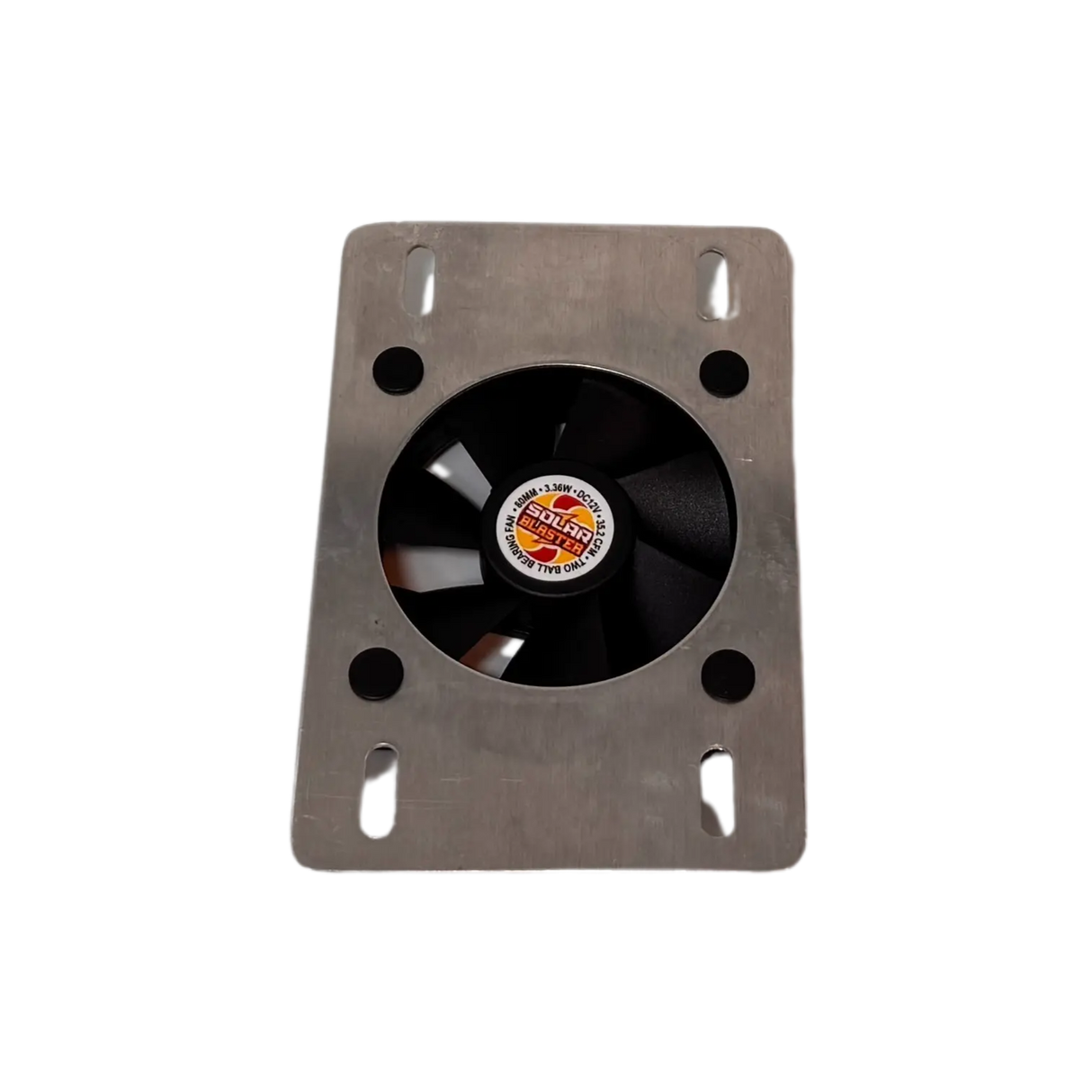

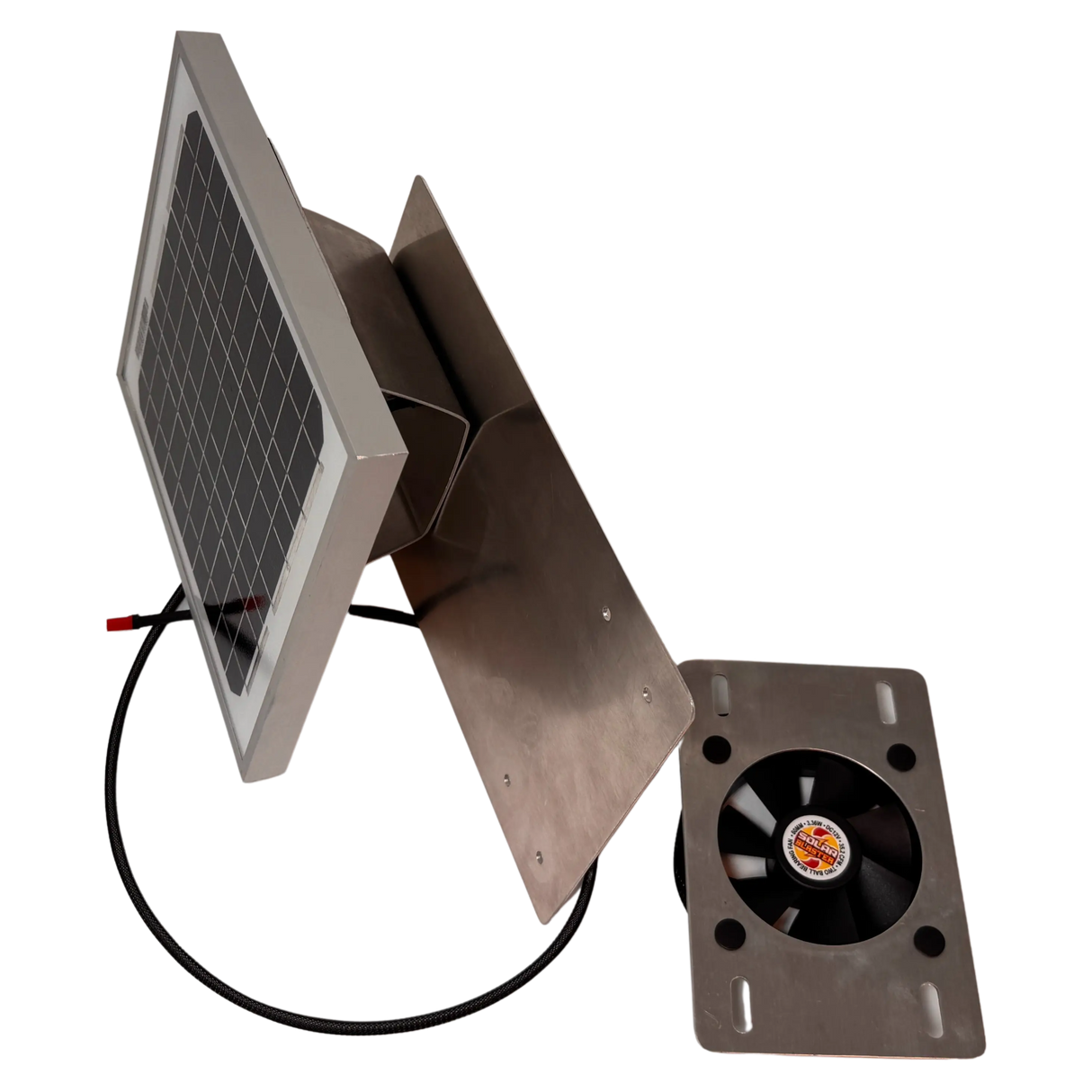

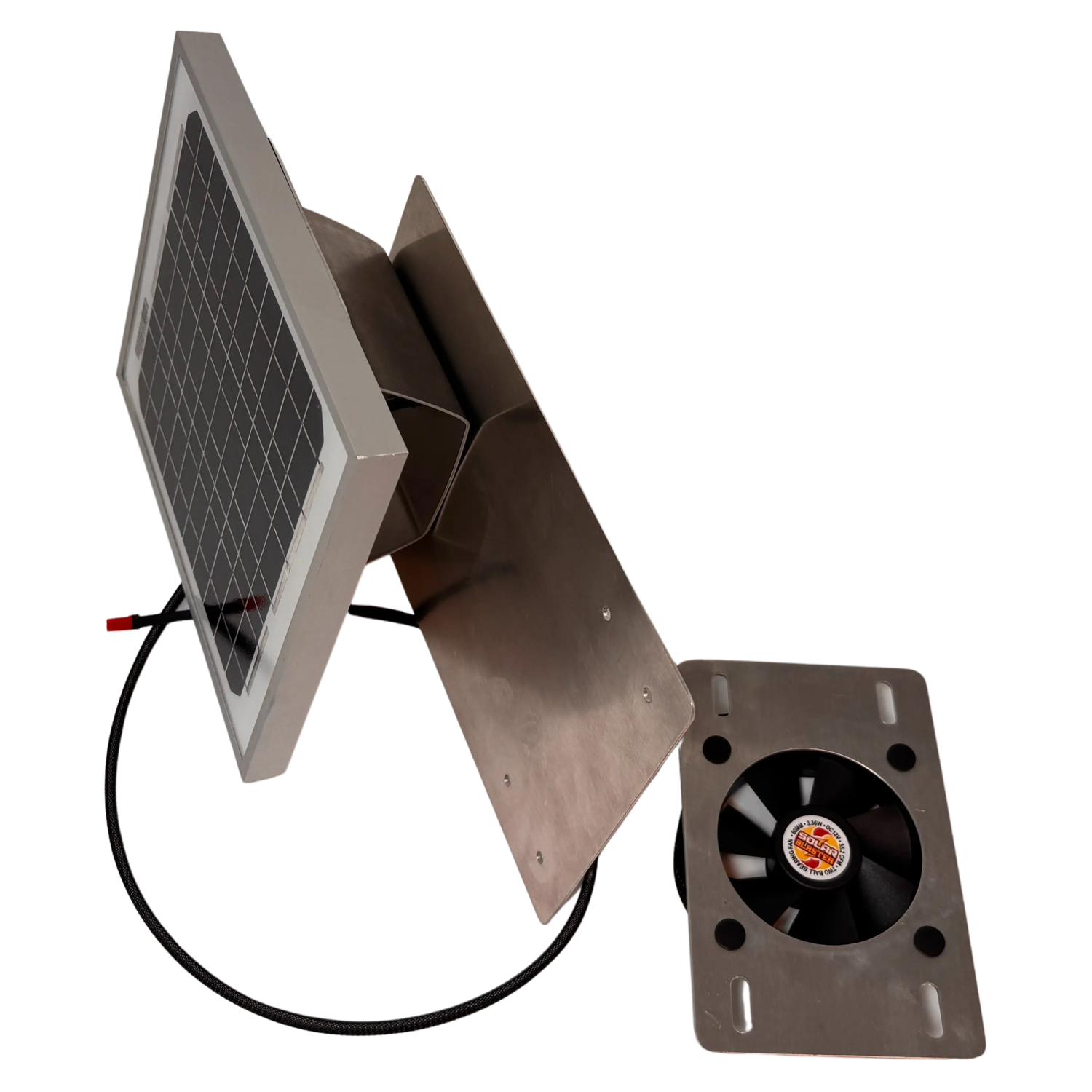

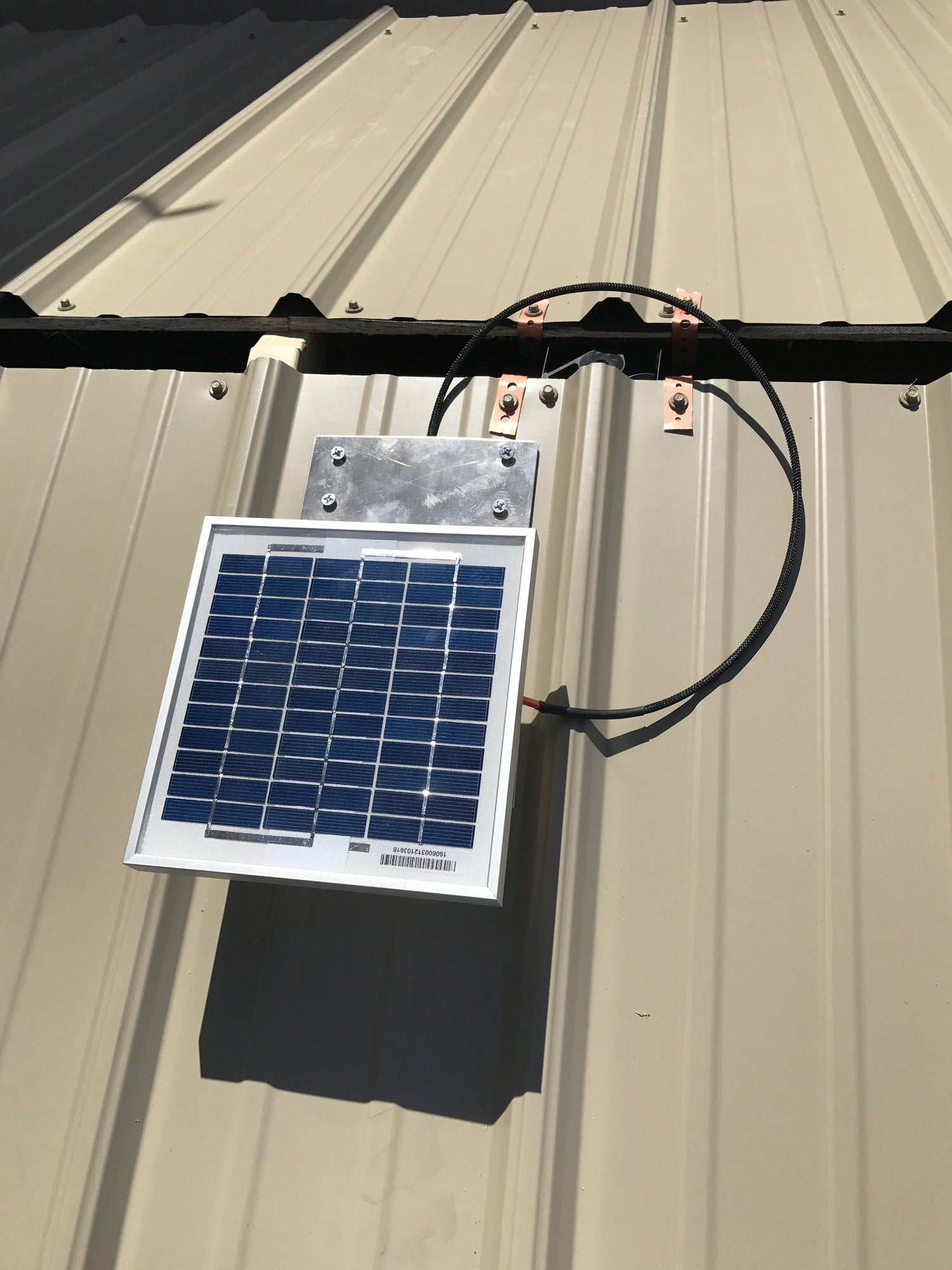

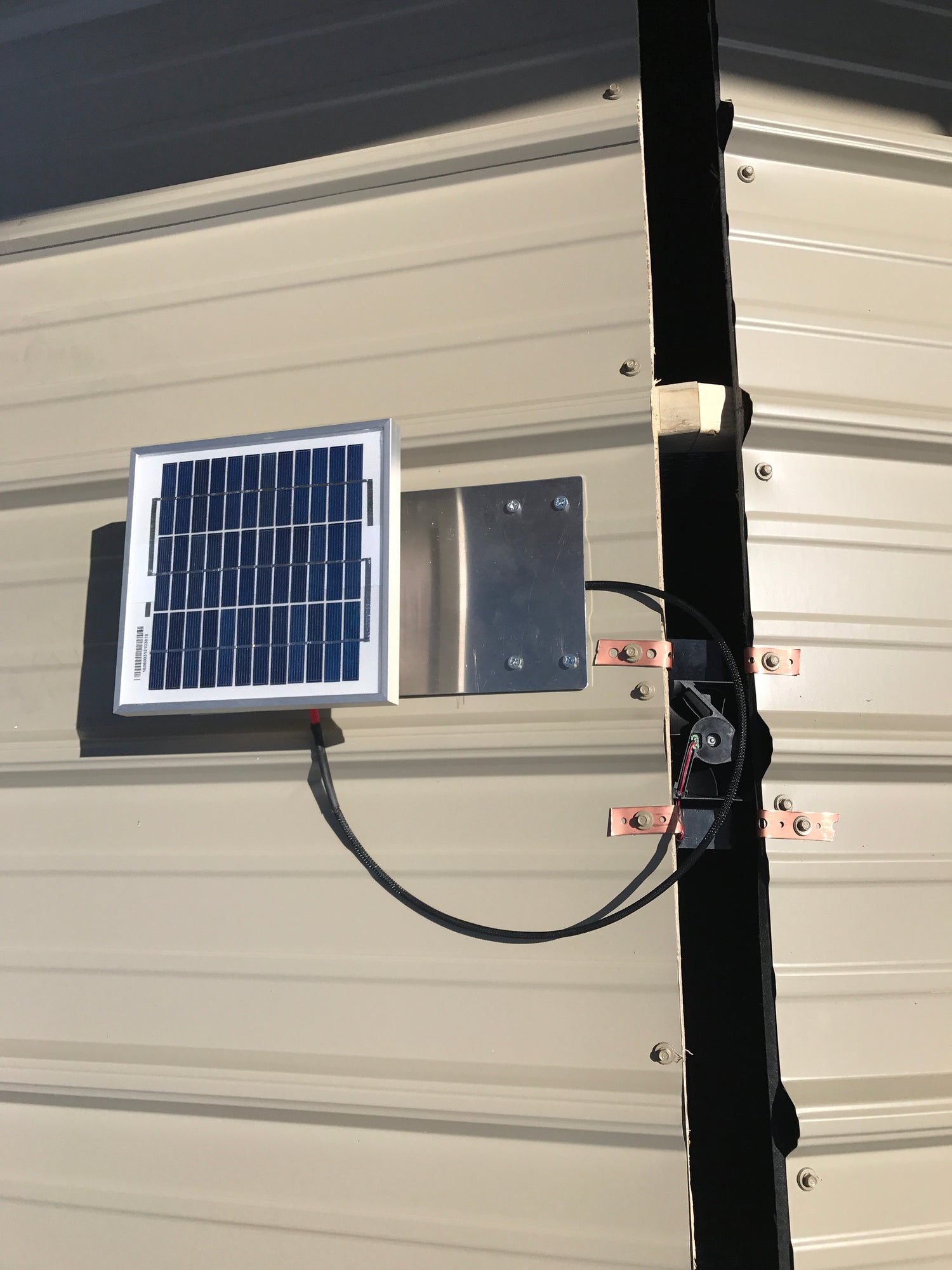

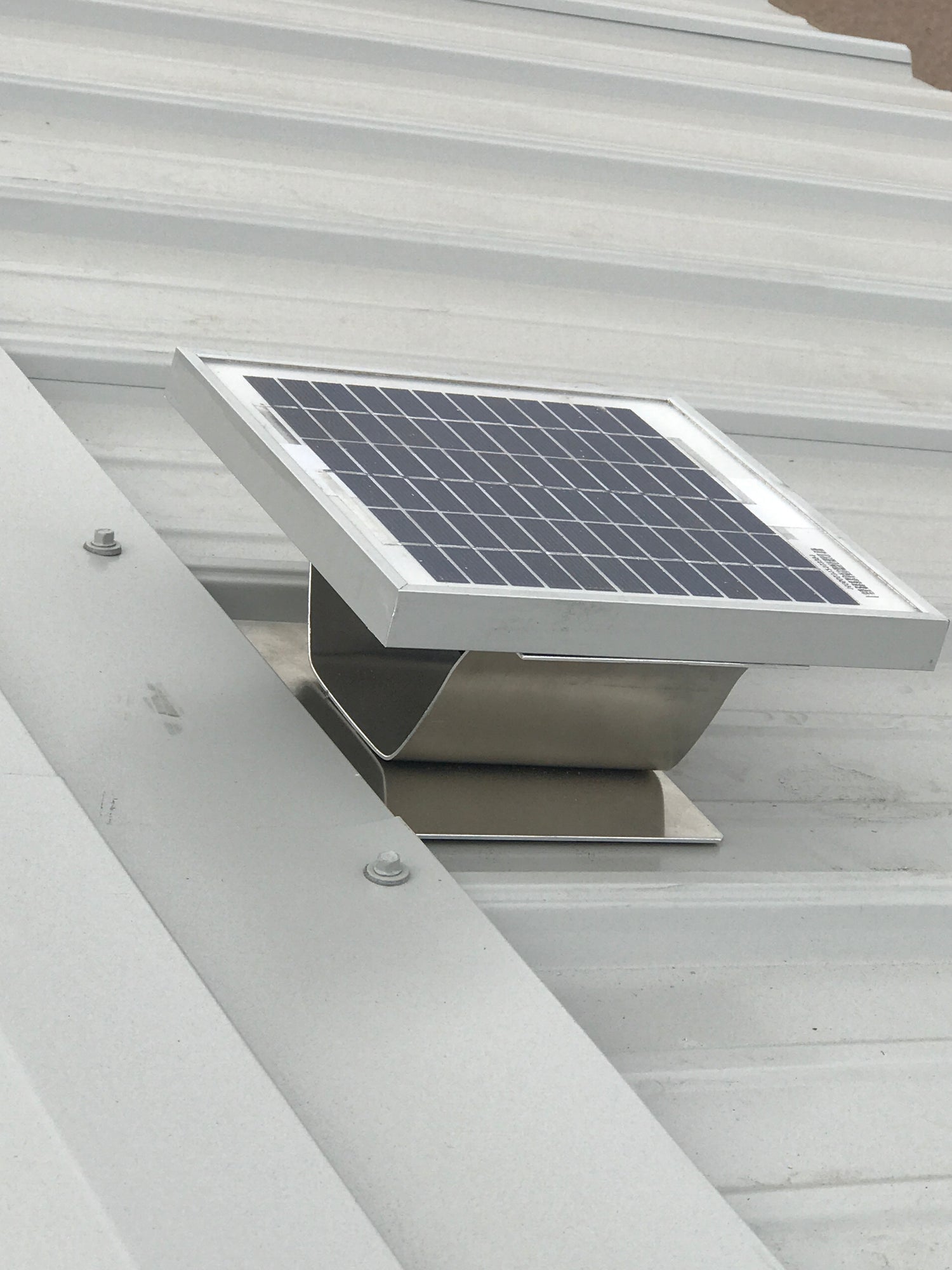

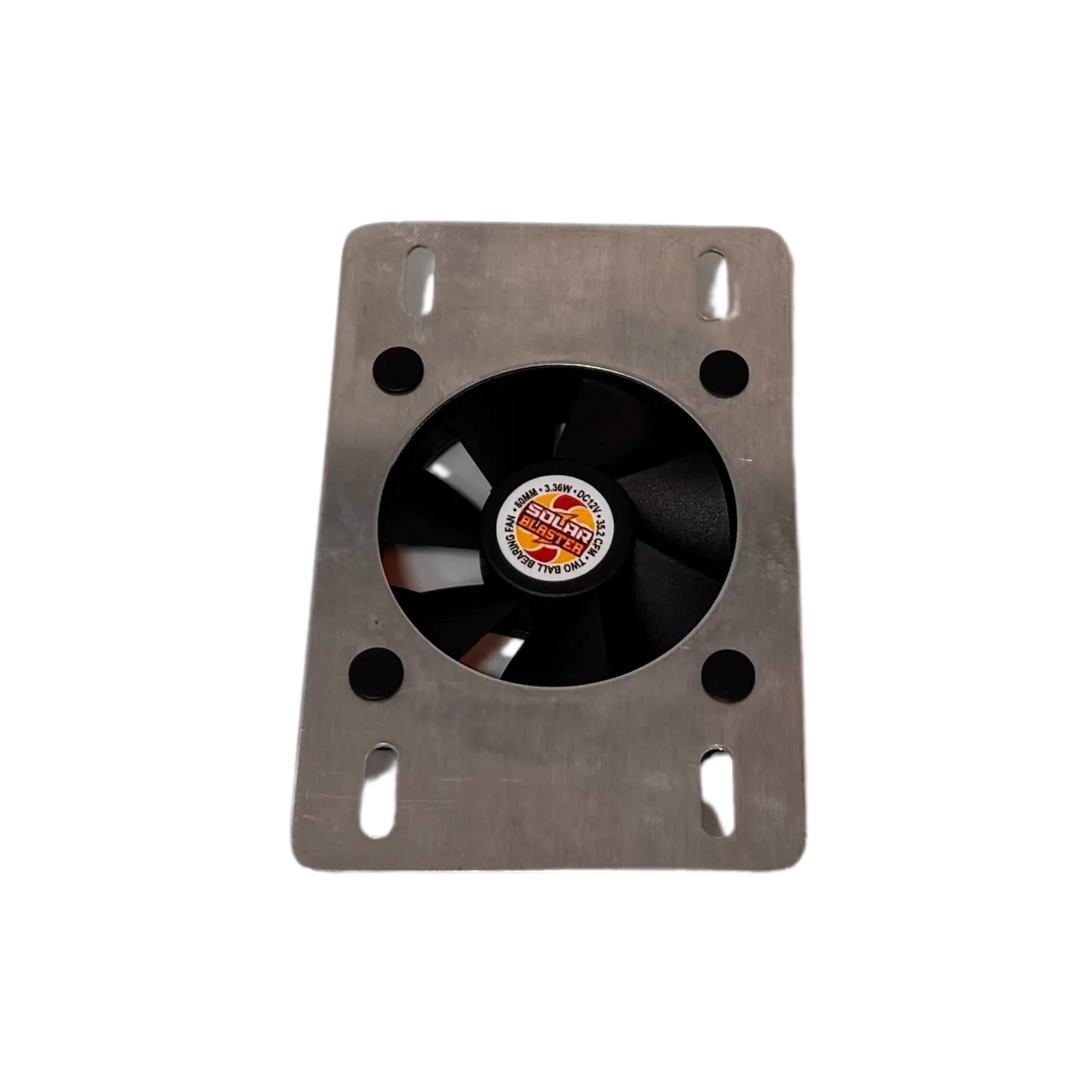

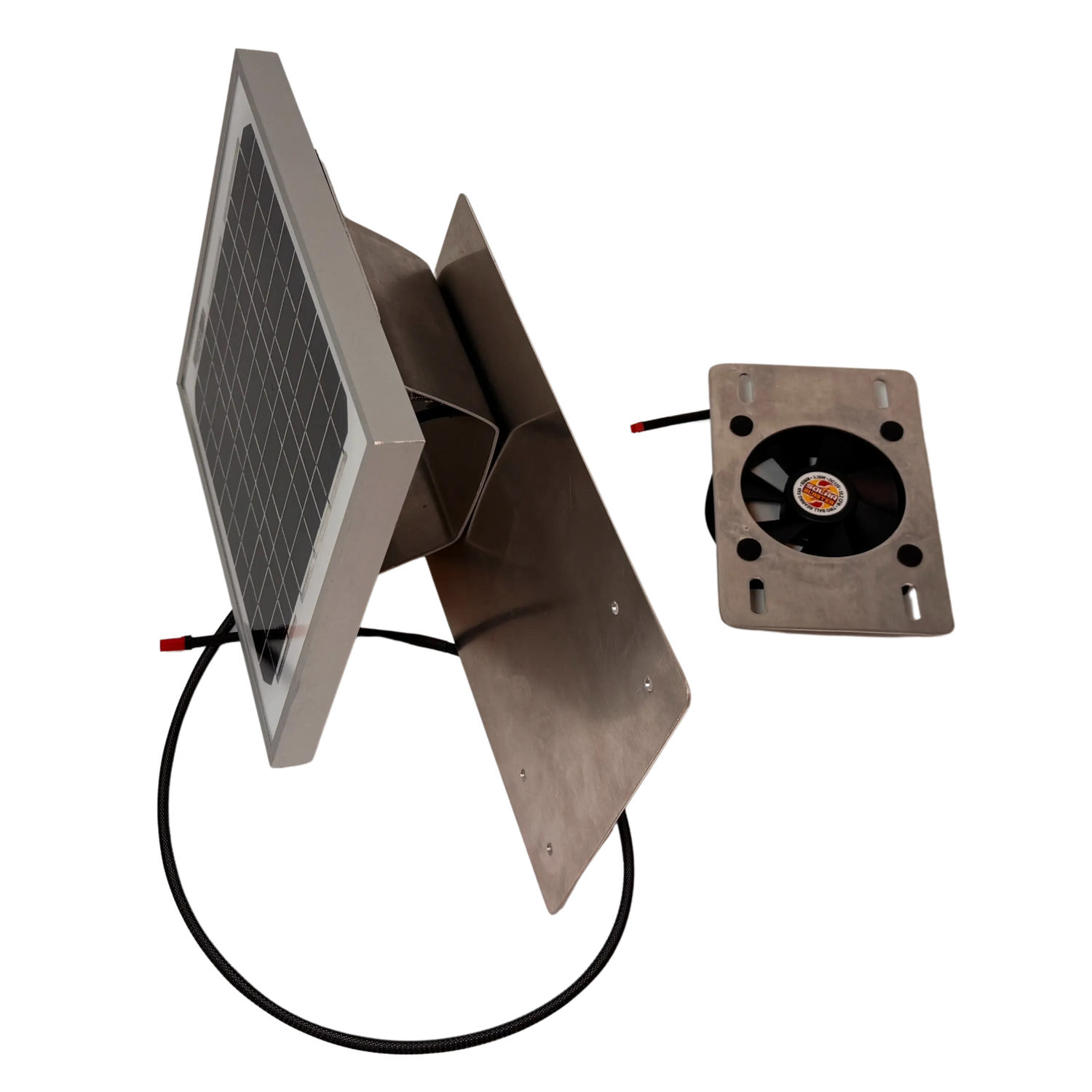

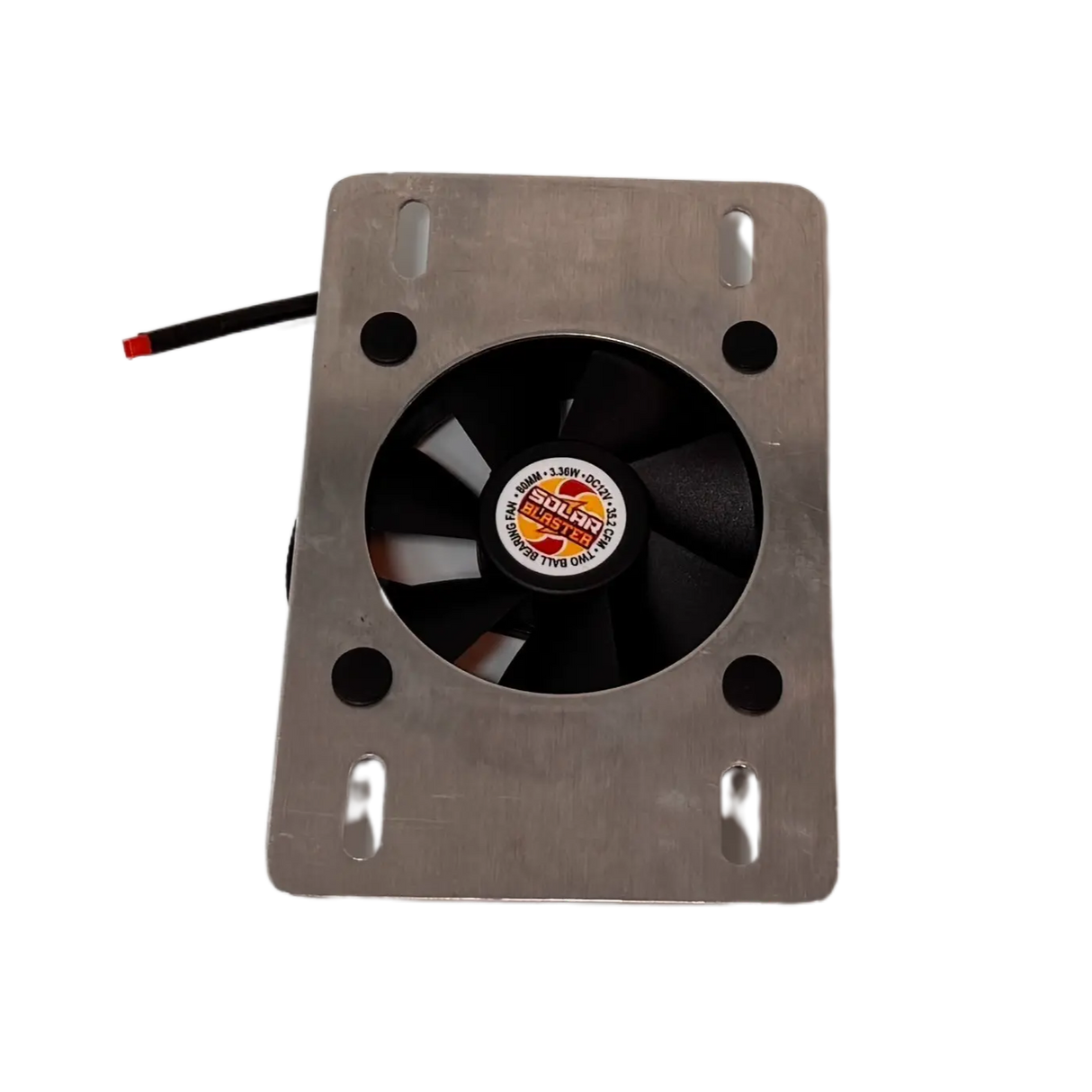

So how does this attach to a metal roof? Glad you asked. Before installing the final ridge vent cover, you attach the floating footprint flashing under the ridge vent cover with the fan attached using the copper-clad mounting brackets right inside the ridge vent opening. Then connect the two ends of wire to the panel and that's it. Our RidgeBlaster products include maintenance-free flashings. This features a very clean-looking installation application.

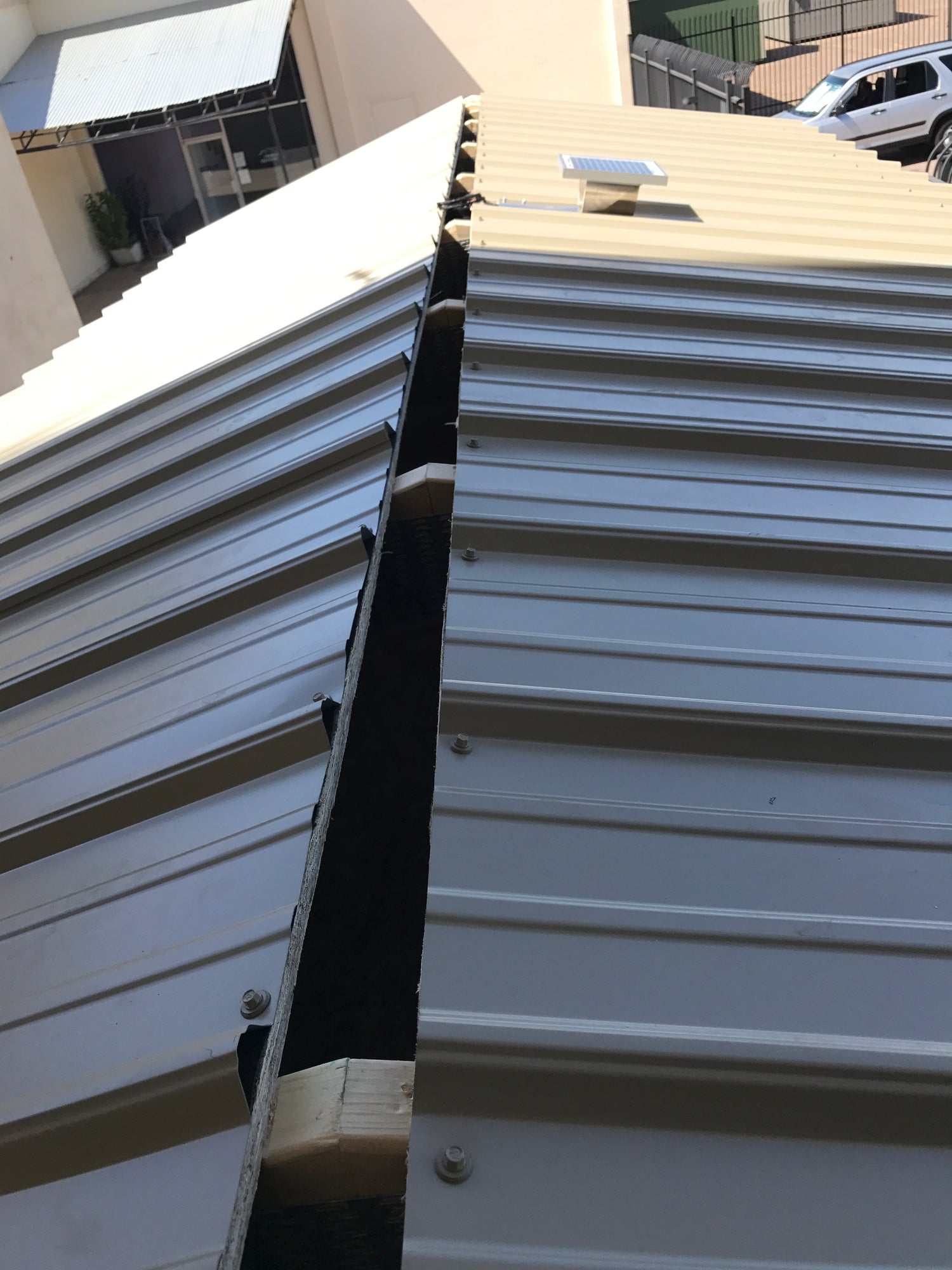

Can this be installed on a metal roof that already has ridge venting? Ideally, these vents and fans should be installed before the ridge vent cover is installed. But if you know how to remove your ridge vent cover, then by all means, you will certainly be able to install our Solar Metal RidgeBlaster on your roof.

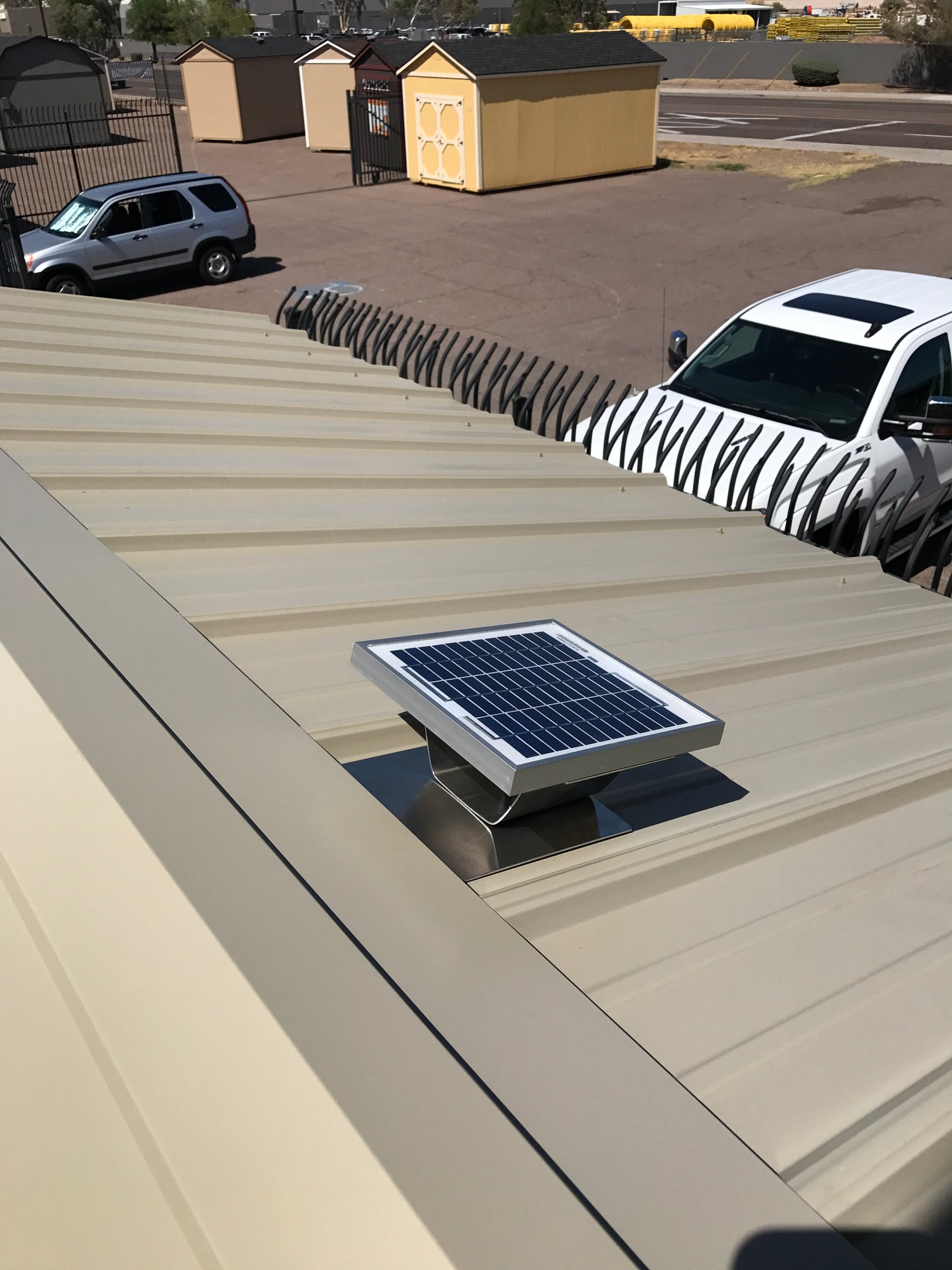

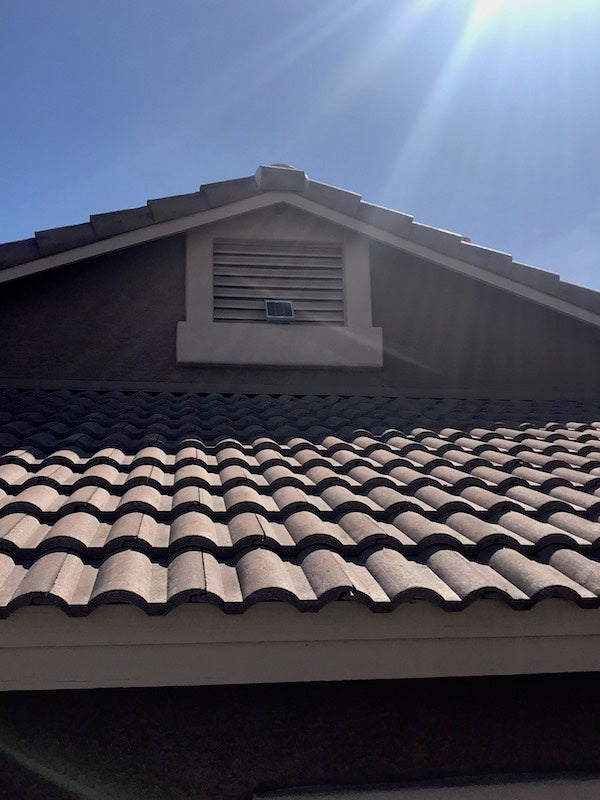

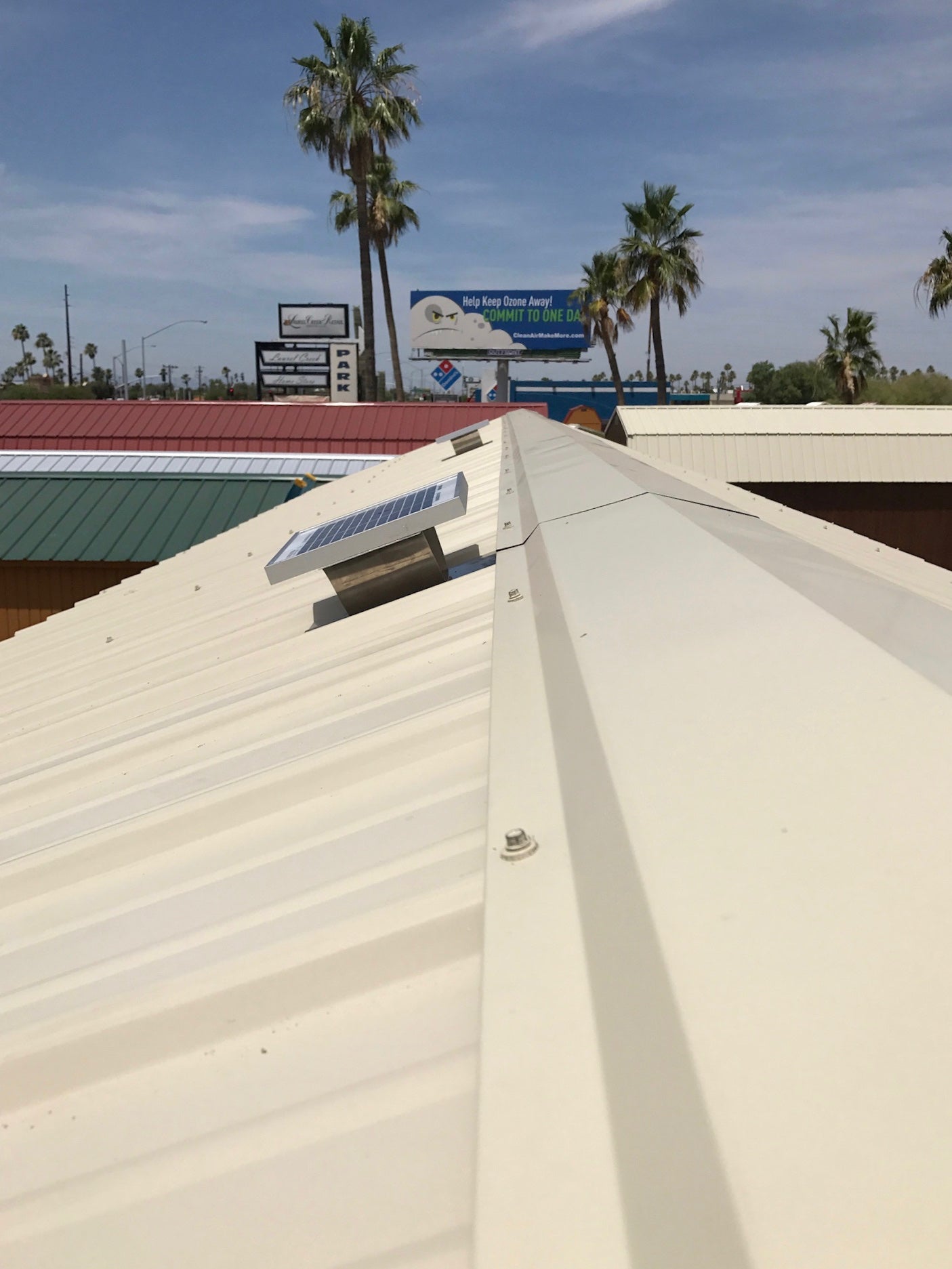

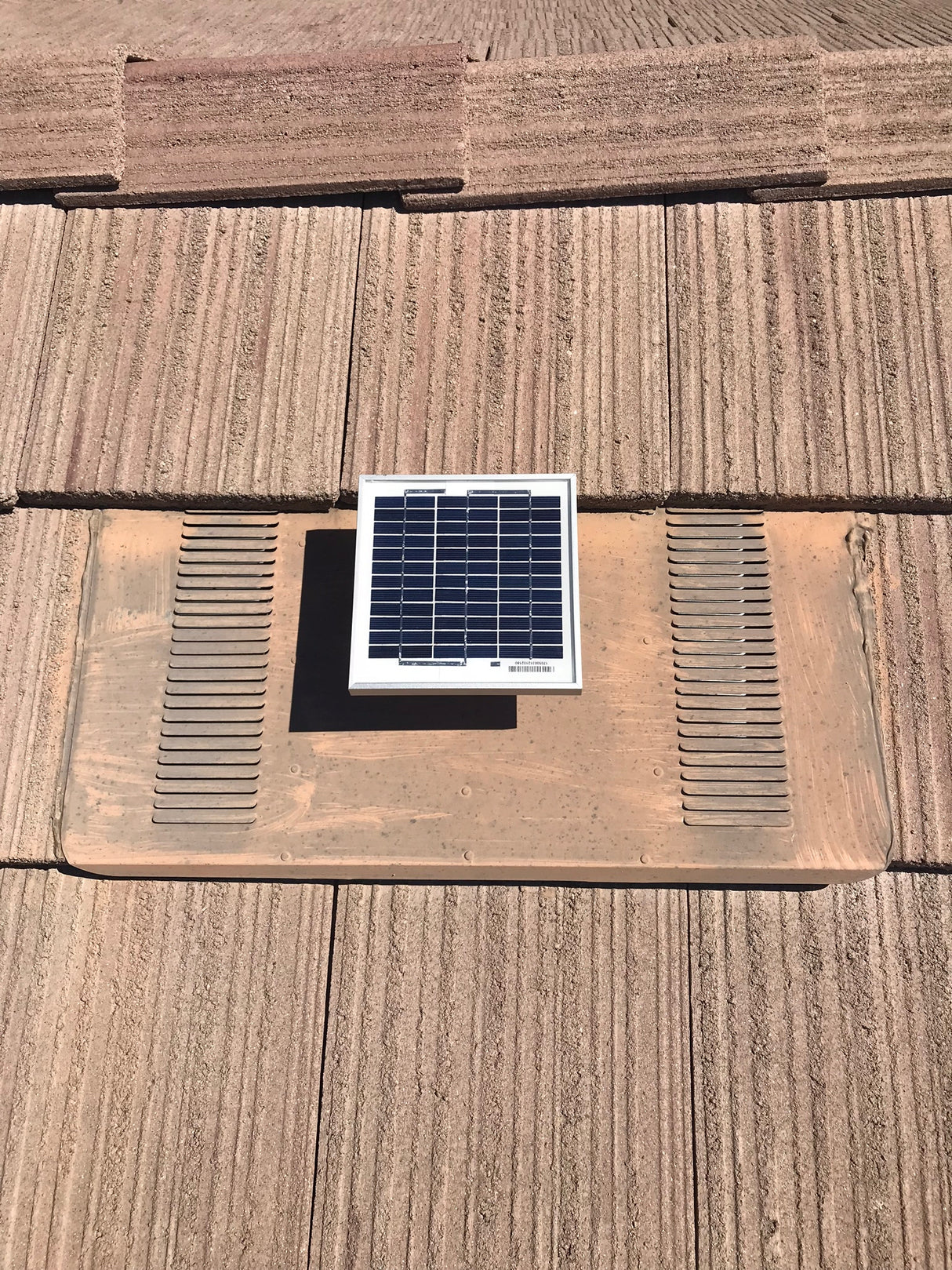

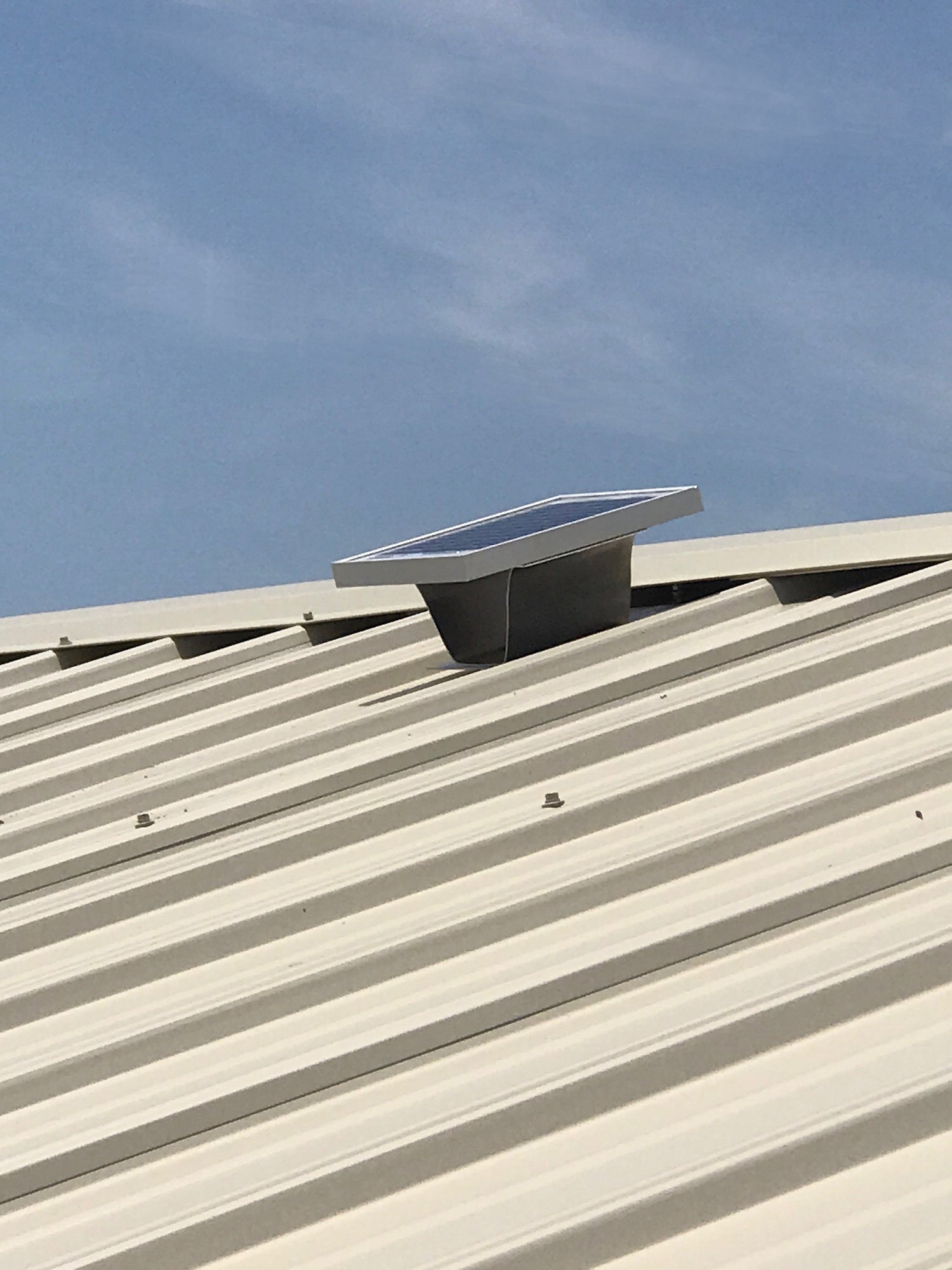

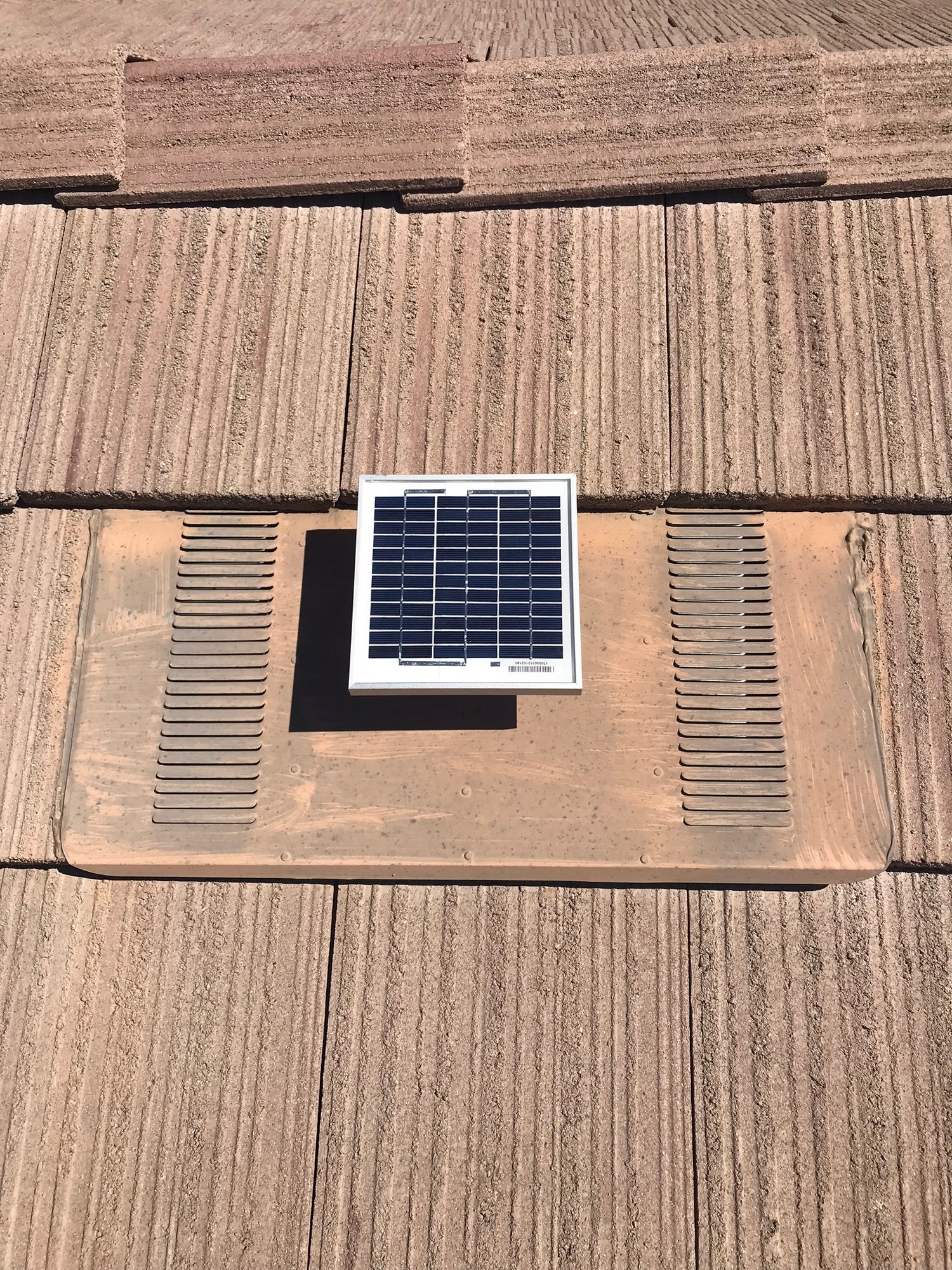

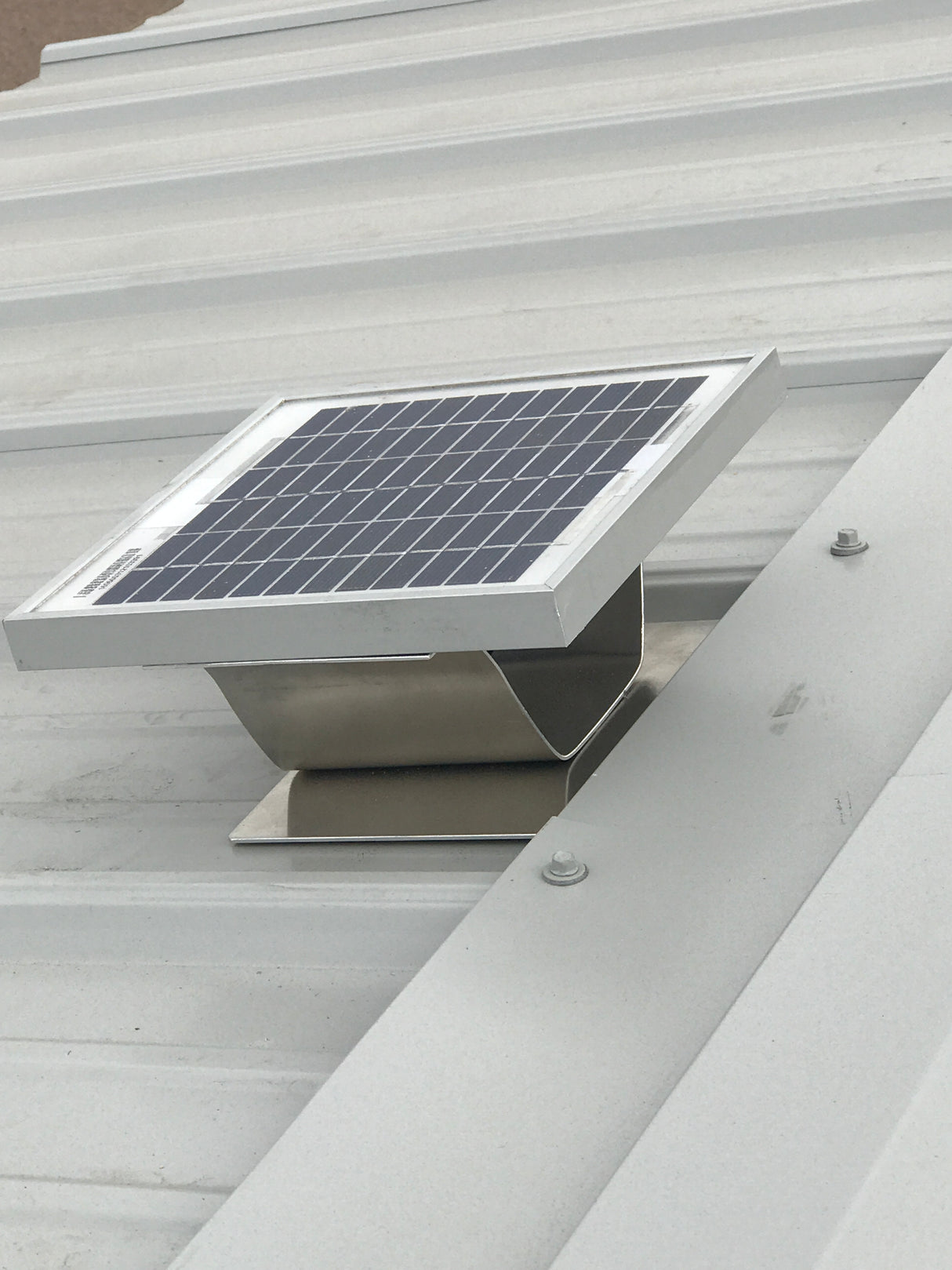

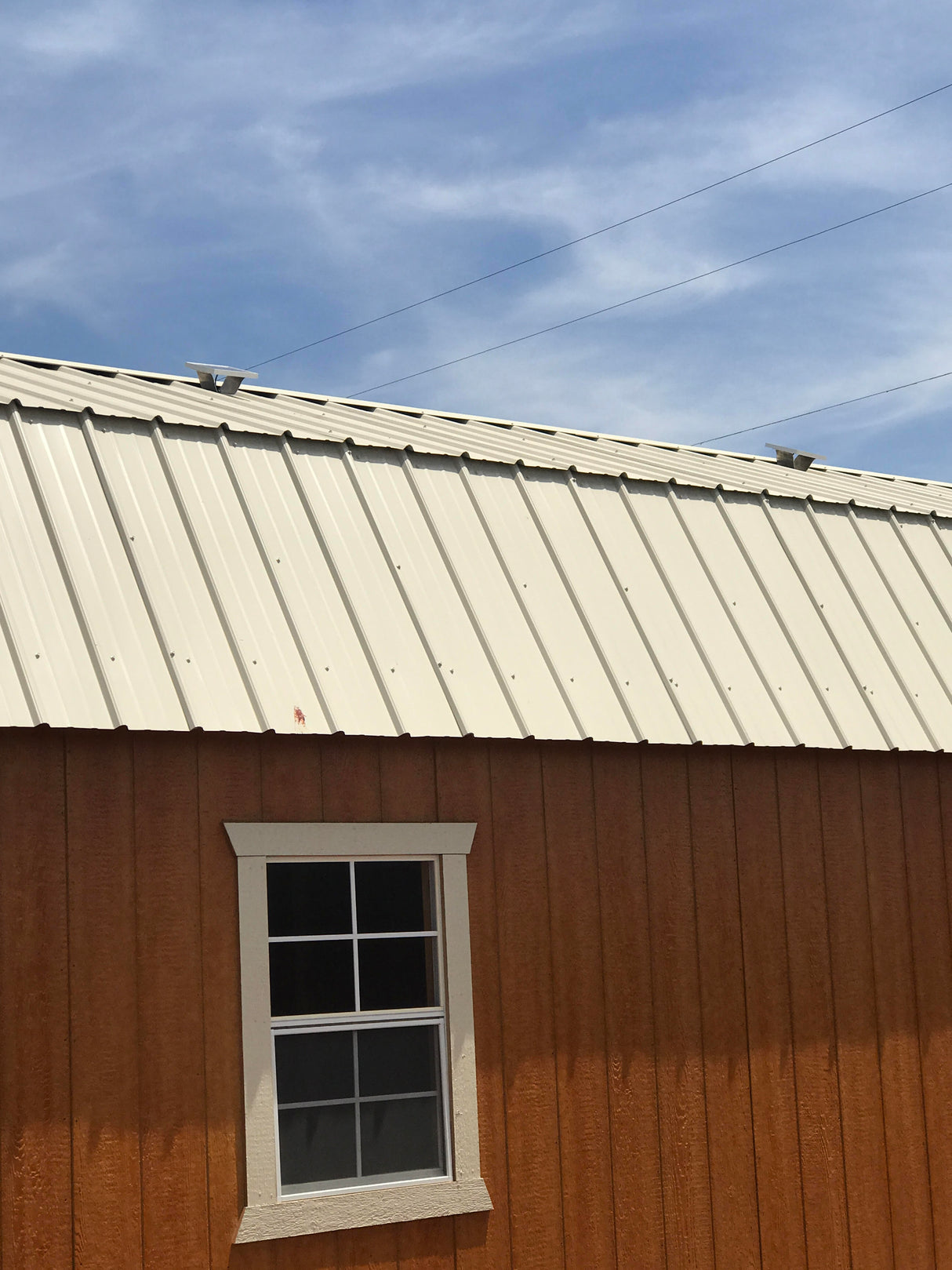

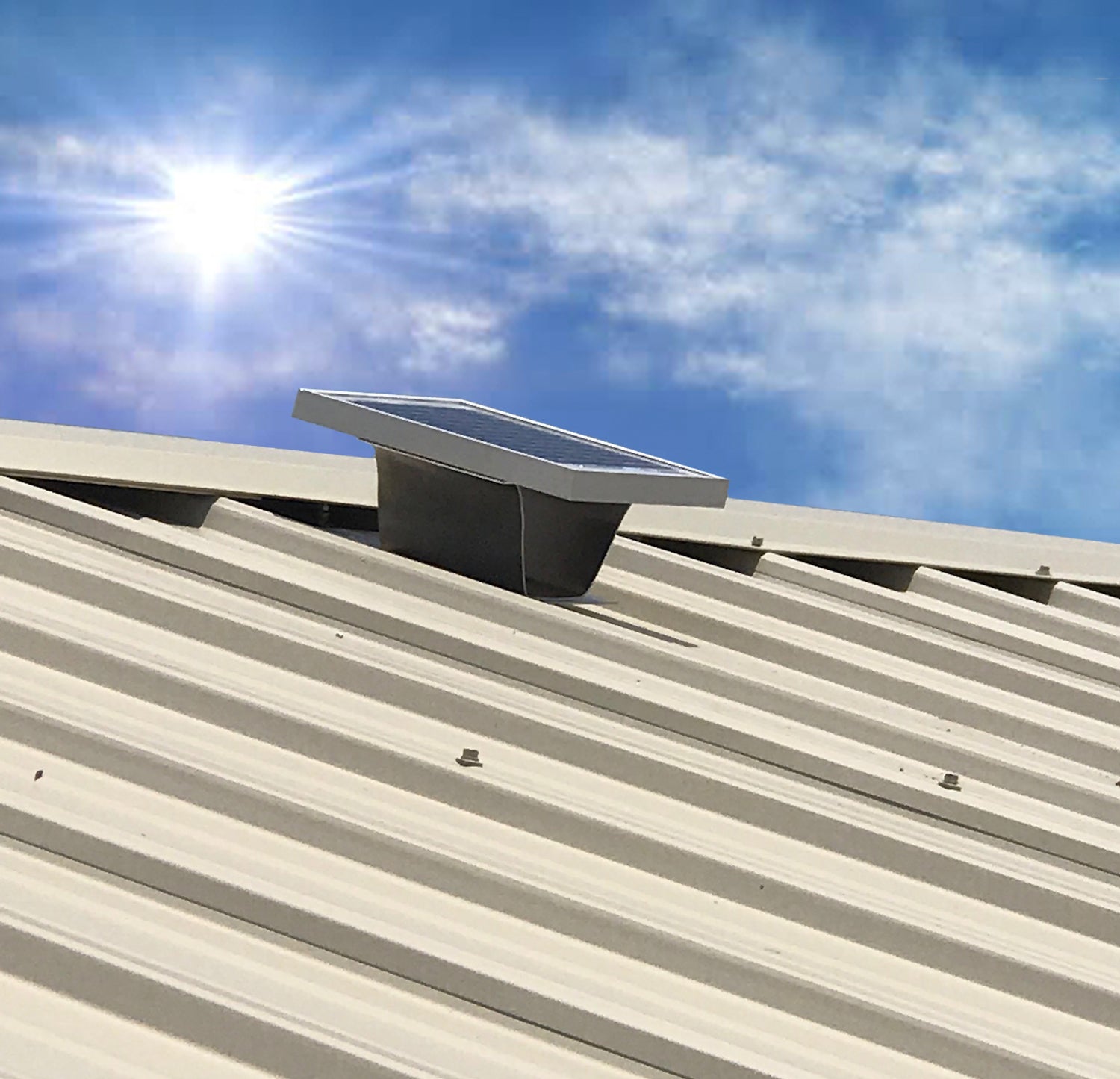

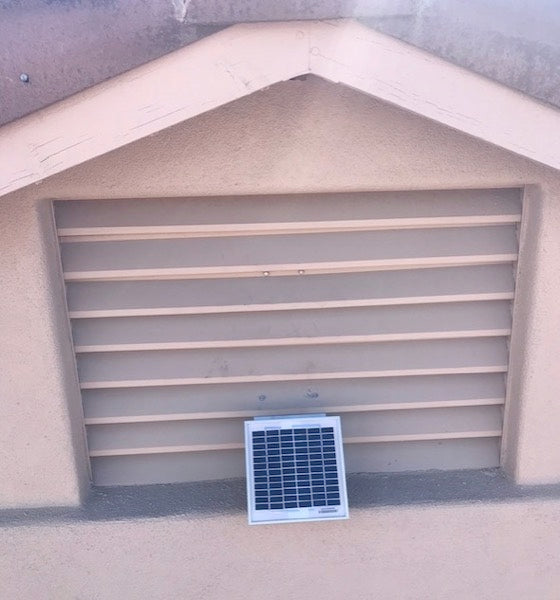

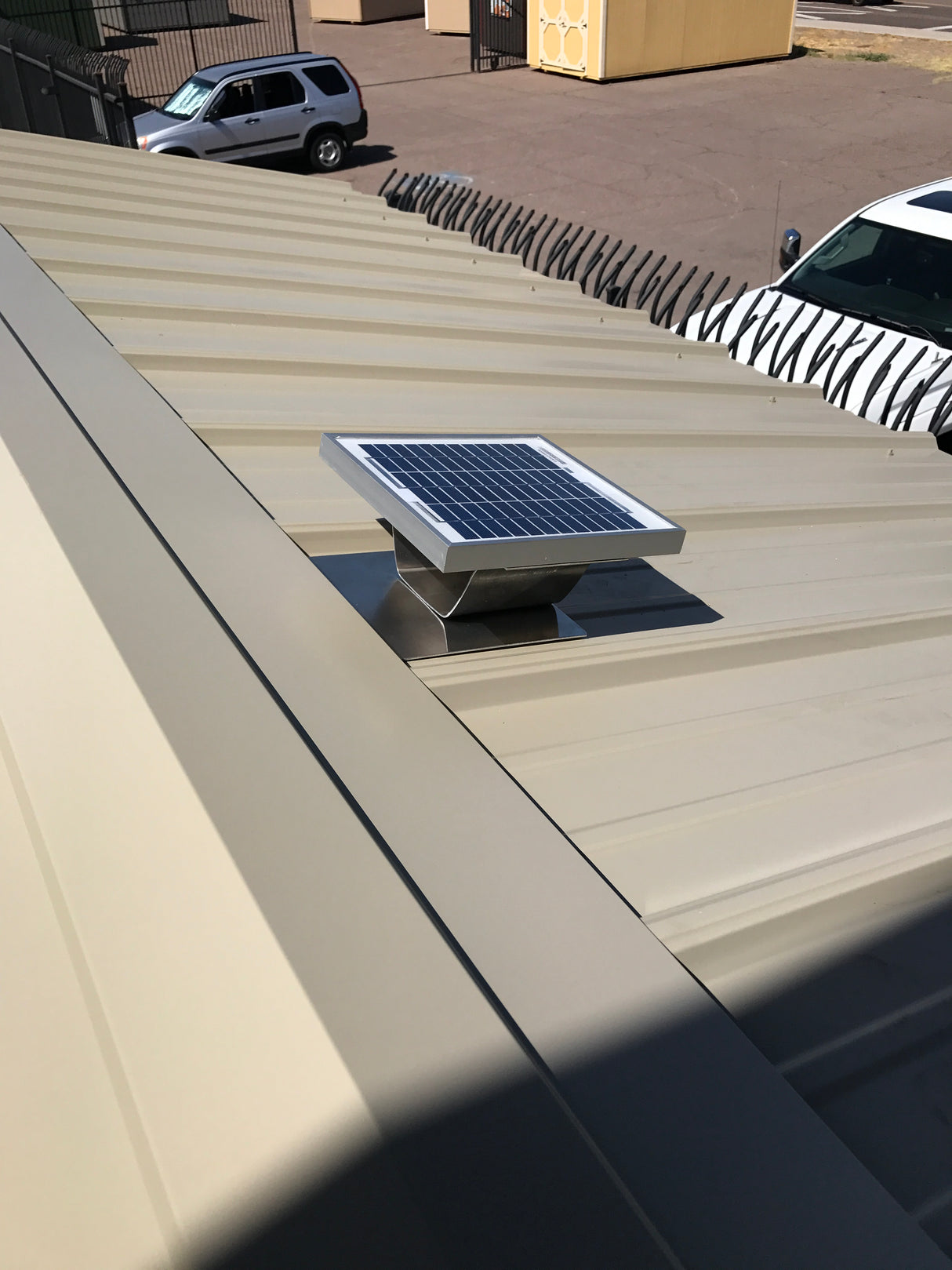

Applications include any metal-roofed structure like homes, garages, and sheds that have ridge venting. It has also been installed on the sunny-side gable vent and also roofs that have O'Hagin's flat tiles alongside ridge venting (see photos above).
Professional-grade performance with straightforward installation makes the Solar Metal RidgeBlaster an essential upgrade for any metal-roofed structure resulting in an enhanced ventilation solution due to the power of the sun. Why not use the source of all that attic heat to also blast that heat away more effectively than ridge venting alone?
Solar Metal RidgeBlaster™ roof vent helps boost the effectiveness of what would otherwise be a passive vent system while also acting as a passive vent anytime the sun is not out.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product features
Click to find out more about this product.
Solar Metal RidgeBlaster Specs
| Fan | Specs | |
|---|---|---|
| Fan Wattage | 3.36W | |
| Solar Power CFM | 35.2 cfm | |
| Bearing Type | Double ball bearing | |
| Fan Speed | 2900rpm | |
| Noise Level | 34.5 dBa | |
| Air Flow | 35.2 cfm | |
| Rated Voltage | 12V DC | |
| Rated Current | 0.28A | |
| Size | 80 x 80 x 25 mm | |
| Weight | 2.6oz | |
| Operating Temp | 14°F-+149°F | |
| Storage Temp | –22°F-+158°F | |
| Rated Life | 50,000 hrs | |
| Air Refresh Rate (1000cf space) | Refreshes air every 28.4 minutes | |
| Solar Panel | Specs |
|---|---|
| Wattage | 4.5W |
| Operating Volts | 12V |
| Max Power (Vmp) | 17.2V |
| Max Amps (Imp) | 0.27A |
| Open Circuit (Voc) | 20.31V |
| Short Circuit (Isc) | 0.28A |
| Operating Temp | -40°F-185°F |
| Power Tolerance | ± 5% |
| Cells | Mono-crystalline silicon solar cell |
| Number of Cells | 30 (5x6) |
| Module Size | 195mm x 188mm x 18mm |
| Solar Panel Weight | .99 lb |
| Rated Life | 25 years |
| Entire Vent | Specs |
|---|---|
| Vent opening size | Open ridge |
| Net Free Vent Area | Depends on ridge length |
| Flashing Material | 14 gauge aluminum |
| Vent Color | Galvanized |
| Unit Size | ?????15.25x12.25x2.75 in. |
| Net Weight | 2.2 lbs |
| Gross Weight | 2.8 lbs |
| Boxed Size | 13.25x9.25x5.75 |
| Warranty | 5 years |
