Ask ten homeowners how to fix a hot attic and you'll hear two answers. "Add more insulation." "Add more vents." The truth is they do two different jobs, and a healthy attic needs both. After 45 years on roofs, we've seen plenty of attics where one was done well and the other was forgotten. Here's how insulation and ventilation work together, and how to keep one from getting in the way of the other.
Attic insulation vs. ventilation: two different jobs
Insulation slows heat. It sits on the attic floor and keeps heat from moving between the attic and the rooms below. ENERGY STAR puts it simply: "R-Value is a measure of insulation’s ability to resist heat traveling through it."
Ventilation moves air. It pulls outside air in at the eaves and lets hot, damp air out up high. That carries heat and moisture out of the attic space itself.
Think of it this way. Insulation is a blanket over your ceiling. Ventilation is the breeze that keeps the space above the blanket from turning into an oven or a steam room.
- Insulation without ventilation: the attic still bakes, and moisture has nowhere to go.
- Ventilation without insulation: the attic air moves, but heat still soaks through the ceiling.
Is insulation blocking your soffit vents?
It can, and it's one of the most common problems we find. Blown-in insulation gets piled right into the eaves and buries the soffit vents. The intake is gone, and the whole system stalls.
The code is clear on this. IRC R806.3 says, "Where eave or cornice vents are installed, blocking, bridging and insulation shall not block the free flow of air. Not less than a 1-inch (25 mm) space shall be provided between the insulation and the roof sheathing and at the location of the vent."
ENERGY STAR's attic insulation guide agrees: "Never lay insulation over recessed light fixtures or soffit vents."

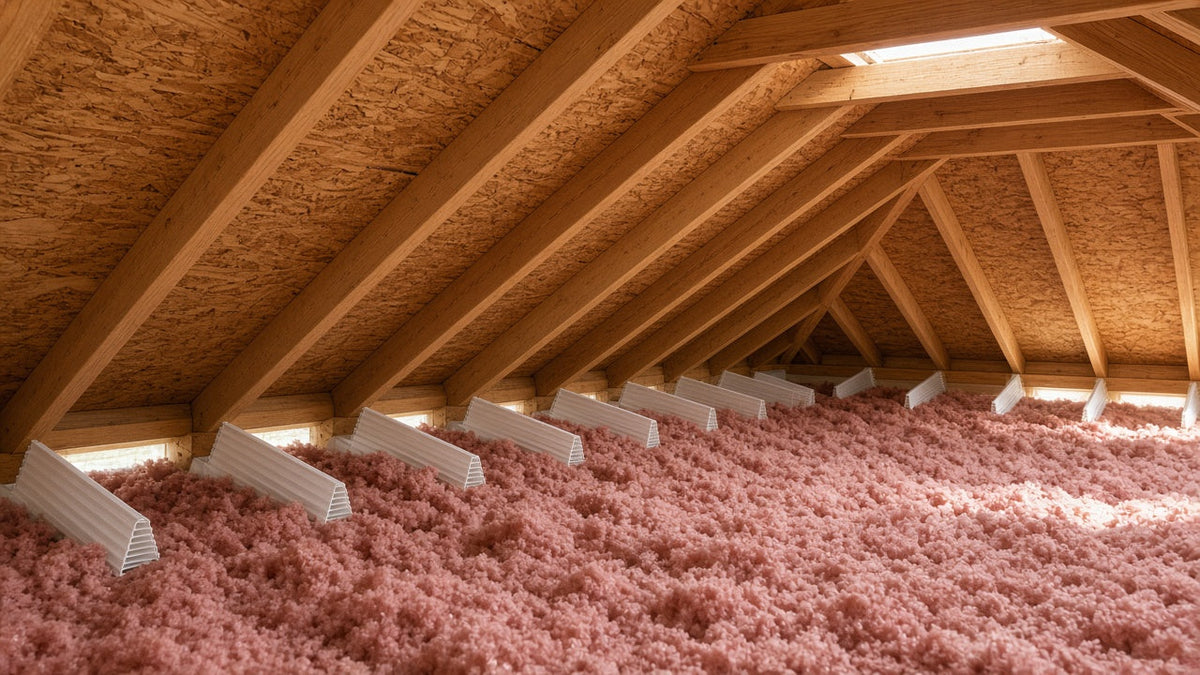

Attic baffles keep the air path open
The fix is cheap. Attic baffles, also called rafter vents or insulation baffles, are foam or cardboard chutes that staple between the rafters at the eaves. They hold the insulation back and leave a clear channel from the soffit vent up along the roof deck.
- Install one in each rafter bay that has a soffit vent.
- Put them in before blowing in new insulation, not after.
- Check older attics for baffles that have sagged, crushed or come loose.
Not sure your intake is big enough? See How Many Soffit Vents Do I Need?
Air seal the ceiling before adding insulation
Insulation slows heat, but it doesn't stop air. Gaps around ceiling lights, wiring holes, plumbing pipes and the attic hatch let house air leak straight into the attic. ENERGY STAR lists those same spots as common attic air leaks, and its insulation guide says, "Note that EPA recommends air sealing the attic before adding attic insulation."
Air sealing matters for ventilation too. As you'll see below, a sealed ceiling keeps an attic fan pulling from the vents, not from your living room.
Balanced attic ventilation: in low, out high
Good ventilation is about balance. Air should come in low at the eaves and leave high near the ridge. IRC R806.2 says, "The minimum net free ventilating area shall be 1 / 150 of the area of the vented space." It allows 1/300 when certain conditions are met, including splitting the vents between high and low.
The Arizona angle
Here in Fountain Hills, the sun works on a roof almost every day of the year. Insulation helps keep that heat out of the house, but the attic above it still gets very hot. Ventilation helps move that hot air out instead of letting it sit on the insulation and the roof deck all afternoon. More on that in How Hot Does an Attic Get in Arizona?
Moisture, condensation and rot
Heat isn't the only issue. Warm, damp house air that leaks into the attic can condense on cooler wood, especially on cold winter nights. The EPA notes that "Condensation can be a sign of high humidity." Over time, wet sheathing and soggy insulation can lead to mold, rot and rusty nails. Air sealing cuts down the moisture getting in. Ventilation helps carry out what does.
Where a solar attic fan fits
A small solar fan near the top of the roof can help keep air moving on sunny days. Solar Blaster's product pages use a 10'x10'x10' space, or 1,000 cubic feet, as an example:
- The Solar Mega RoofBlaster moves 96 cfm, about one air exchange every 10.4 minutes with proper intake ventilation.
- The Solar RoofBlaster moves 35.2 cfm, about every 28.4 minutes with proper intake ventilation.
Notice the phrase "with proper intake ventilation." That's why clear baffles matter.
Why bigger is not better
It's tempting to buy the biggest fan you can find. But a high-CFM fan that's short on intake starves for air. It pulls from wherever it can, including ridge vents, gable vents, the chimney chase, and the house itself. If the ceiling isn't air sealed, that means cooled, conditioned air drawn up through gaps around lights and the attic hatch. Balance beats brute force. Read more in Why Solar Blaster Bets on Balance, Not Brute Force.
Being honest about the limits
- A fan is not a substitute for insulation or air sealing. It moves attic air. It doesn't slow heat through the ceiling or seal leaks.
- Fans don't kill mold. The EPA says, "The key to mold control is moisture control." Find and fix the moisture source first.
- A fan won't fix a roof leak. Wet insulation can mean a leak, not condensation. A roofer can tell which.
- Insulation levels depend on your climate zone. ENERGY STAR's R-value chart lists recommended levels by zone.
- Your local building official has the final say on vent area, clearances and insulation.
The bottom line
Insulation and ventilation aren't rivals. Insulation slows heat into the house. Ventilation carries heat and moisture out of the attic. Seal the ceiling, keep the eaves clear with baffles, balance intake and exhaust, and add a right-sized fan if it helps.
As Daniel Rheaume of Solar Blaster puts it, "Our products move air, which is a natural cleanser. Clothesline fresh."
